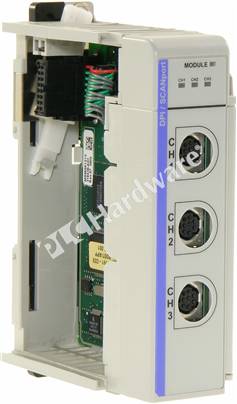

PLC Hardware - Allen Bradley 1769-SM1 Series A, Used in a PLCH Packaging

Mfr. Part Number:	1769-SM1/A

Manufacturer:	Rockwell Automation

Description:	Allen-Bradley 1769-SM1 Compact I/O DPI/SCANport Communication Module 3-Ch, Ser A

Full Description:	Allen-Bradley 1769-SM1 Compact I/O DPI/SCANport Communication Module, 3 Channel. Connects to PowerFlex 7-class drives, other DPI-based host devices, and SCANport-based host devices such as 1305 and 1336 PLUS II drives.

Status:	Current Product

Inventory & Prices

Allen-Bradley 1769-SM1 Communication Module, Series A

Condition:

UPP (Used in a PLCH Packaging)

Warranty:

Availability:

0 in stock

0 available for pre-order

Shipping Date:

Retail Price:

$620.00

Your Price:

$390.00

Quantity:


Specs & Technical Data

Allen-Bradley 1769-SM1 Communication Module, Series A

Specifications:	Communication Rate: DPI: 1925 Kbps or 250 Kbps, SCANport: 125 Kbps; Backplane Current at 5V: 280 mA; Backplane Current at 24V: 60 mA per channel supplied by the DPI/SCANport host. Power Supply Distance Rating: 6 modules. The module may not be more than SIX modules away from the power supply or controller. When using 1769 I/O in the local rack with a 1768 controller, the distance rating is from the controller rather than the power supply.

Miscellaneous:	The 1769-SM1 Compact I/O module provides a direct 1769 platform connection for PowerFlex 70, 700, 700H and 700S drives, other DPI-based Host devices, and SCANport-based Host devices such as 1305 and 1336 PLUS II drives. The 1769-SM1 can be used with the MicroLogix 1500, CompactLogix, and remote 1769-based nodes such as the 1769-ADN DeviceNet adapter to control, configure and collect data.
