Rockwell Automation > PLC & HMI > Small Controllers > Pico & Pico GFX System > 1760-L18AWA-EX/A

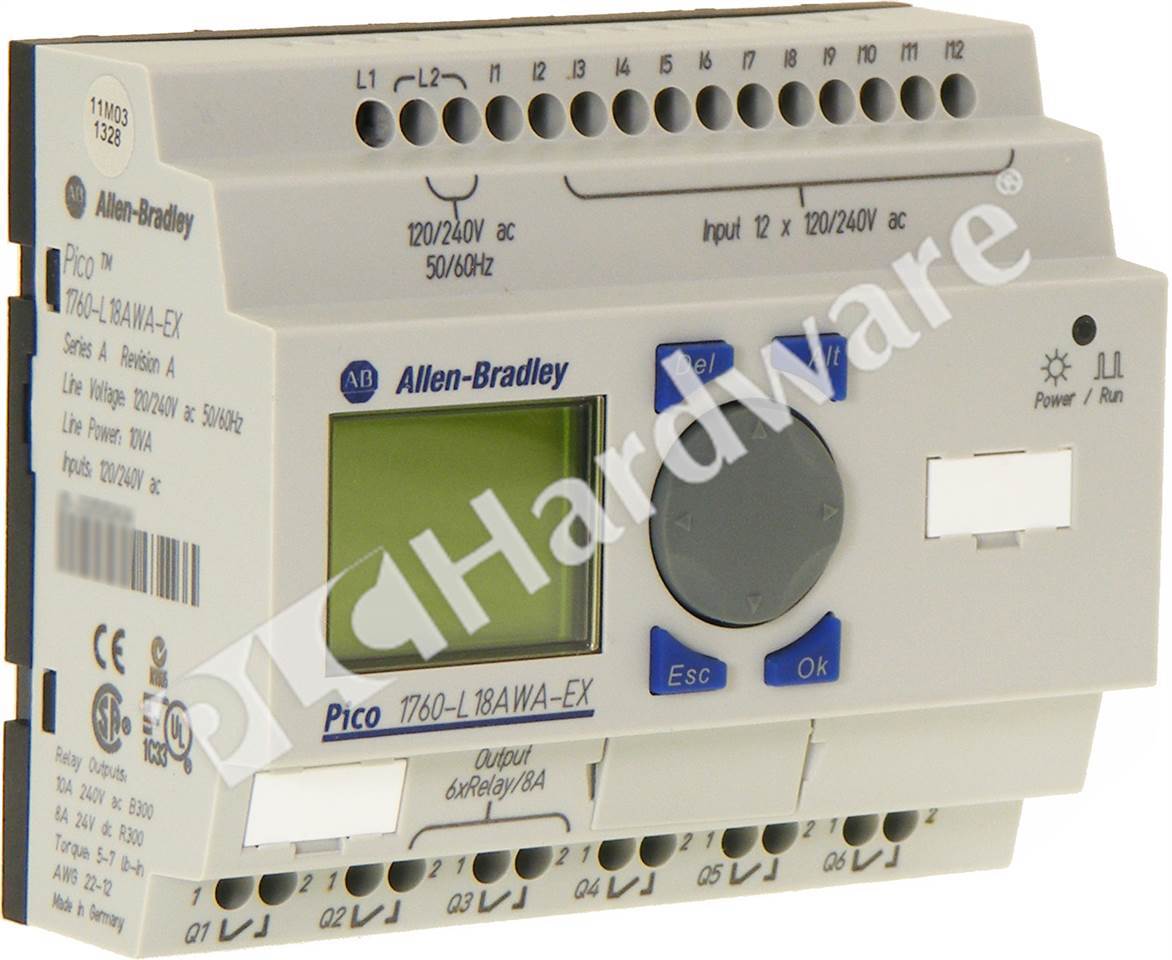

OverviewAllen-Bradley 1760-L18AWA-EX Pico Controller w/RTC 18 I/O, AC, A
Mfr. Part Number:

1760-L18AWA-EX/A

Manufacturer: Rockwell Automation
Description: Allen-Bradley 1760-L18AWA-EX Pico Controller w/RTC, 18 I/O Expandable, AC, Ser A
Full Description: Allen-Bradley 1760-L18AWA-EX Pico Controller, (12) 100-240V AC Digital Inputs, (6) Relay Outputs, 100-240V AC Power, I/O Expandable, with Real Time Clock, Series A
Status: Current Product
Inventory & PricesAllen-Bradley 1760-L18AWA-EX Pico Controller w/RTC 18 I/O, AC, A
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 1 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $409.00
Your Price: $243.00
Quantity:


1760-L18AWA-EX/A
Specs & Technical Data Allen-Bradley 1760-L18AWA-EX Pico Controller w/RTC 18 I/O, AC, A
Specifications: Allen-Bradley 1760-L18AWA-EX Pico Controller, Number of Digital Inputs: 12; Rated Voltage: 120/240V AC; Off-state Voltage: 0…40V AC; On-state Voltage: 79…264V AC; Frequency: 50/60 Hz; Input Current R1 to R12, I1 to I6 (1760-L18AWA-xx also I9 to I12): 0.5mA @ 230VAC 50Hz, 0.25mA @ 115VAC 60Hz; Input Current I7, I8: 6mA @ 230VAC 50Hz, 4mA @ 115VAC 60Hz; Signal Delay: Debounce On - 80ms (50Hz), 66.66ms (60Hz), Debounce Off - 20ms (50Hz), 16.66ms (60Hz); Power: 100-240VAC 50/60Hz; Text Length: 16 characters.
Miscellaneous: Allen-Bradley 1760-L18AWA-EX Pico controller performs simple logic, timing, counting, & real-time clock operations. Ideal for relay replacement applications. All programming & data adjustments can be done via the on-board keypad & display, or with Allen-Bradley PicoSoft & PicoSoft Pro configuration software. Additional I/O points can be added to the 1760-L18AWA-EX Pico controller. The 1760-L18AWA-EX supports applications that require up to 128 lines of ladder logic.
Related Products Allen-Bradley 1760-L18AWA-EX Pico Controller w/RTC 18 I/O, AC, A
