Rockwell Automation > PLC & HMI > I/O Products > Point > 1734D-IB16/A

OverviewAllen-Bradley 1734D-IB16 24V DC 16 Input, Screw, DeviceNet, A
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1734D-IB16 24V DC 16 Input Module, Screw Terminal, DeviceNet, A
Full Description: Allen-Bradley 1734D-IB16 24V DC 16 Input Module with Screw Terminal, DeviceNet Communication Interface, Series A
UPC / GTIN: 10612598283276
Status: Discontinued by manufacturer
Inventory & Prices

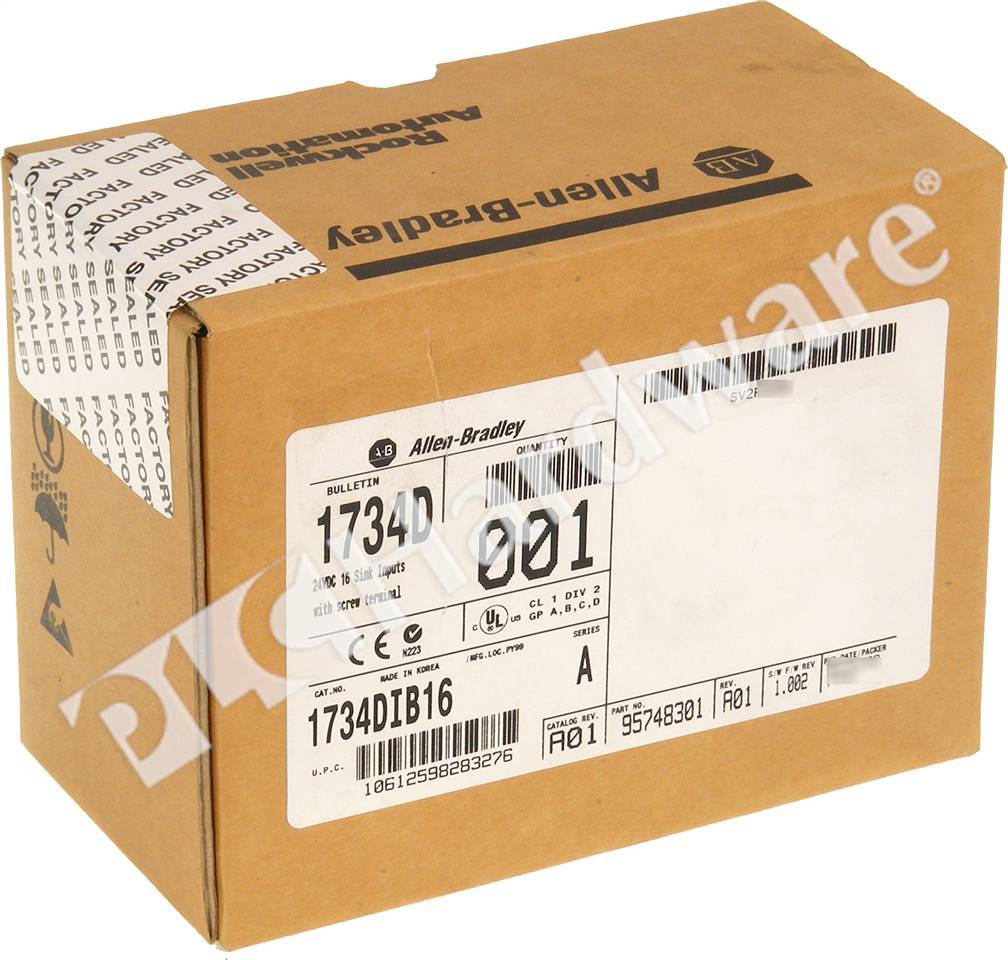

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
18 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $377.00
Your Price: $99.00
Specs & Technical Data
Specifications: Allen-Bradley 1734D-IB16 Number of Channels: 16 input channels; ON-State Voltage Range: 10V DC min, 24V DC nominal, 28.8V DC max; ON-State Current: 2.5mA min, 6.3mA nominal @ 24V DC, 7.6mA max; OFF-State Voltage: 5V DC max; OFF-State Current: 1.5mA min; Pointbus Output Current: 1A max @ 5V DC Output; Number of POINT I/O Expansion Modules: 12 maximum added at expansion port; Power Dissipation: 2.0W maximum @ 24V DC; Power Consumption: 8.2W maximum @ 24V DC
Miscellaneous: Allen-Bradley 1734D-IB16 input module is a DIN-rail mounted device with an integrated DeviceNet communication interface, 16 inputs, removable terminations, and a PointBus expansion port. The expansion port allows you to add up to a maximum of 12 additional POINT I/O modules. The 1734D-IB16 module includes a non-isolated DeviceNet communication interface.
