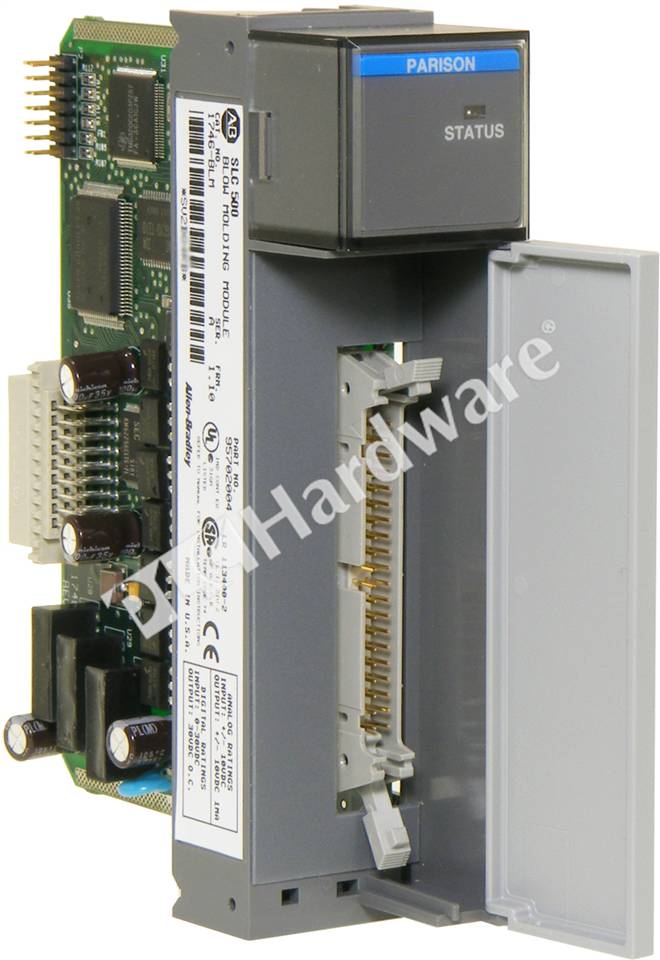

OverviewAllen-Bradley 1746-BLM Blow Molding Module, Series A
Mfr. Part Number:

1746-BLM/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1746-BLM Blow Molding Module, Series A
Full Description: Allen-Bradley 1746-BLM Blow Molding Module for parison wall thickness control in plastic blow molding application, Series A
Status: Current Product
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $5,589.00
Your Price: $4,846.00
Quantity:


1746-BLM/A
Specs & Technical Data
Specifications: Allen-Bradley 1746-BLM Inputs & Outputs: 4 analog inputs, 4 analog outputs, 4 digital inputs, 4 digital outputs, 1 Sensor excitation output; Analog Inputs and Outputs Conversion Rate: 10KHz with 14 bits Resolution. Differential Input Range: +/-10V DC; Output Voltage Range: +/-10V DC; Excitation Output: +/-10V DC, Optocoupler, Maximum Continuous Current for Excitation Output: 2mA (10KΩ linear pot); Digital Inputs: 0 to 30V DC, Open Collector, Polarity reversal Protection; Maximum OFF State Voltage: 30V DC.
Miscellaneous: Allen-Bradley 1746-BLM Blow Molding Module provides an effective performance for parison wall thickness control in plastic blow molding application. The 1746-BLM is capable of simultaneous servo control of four machine axes. It can control two accumulator machine heads or four heads of a continuous extrusion machine. The 1746-BLM module performs its servo control task independently but it receives its configuration and run-time information from the SLC 500 processor.
