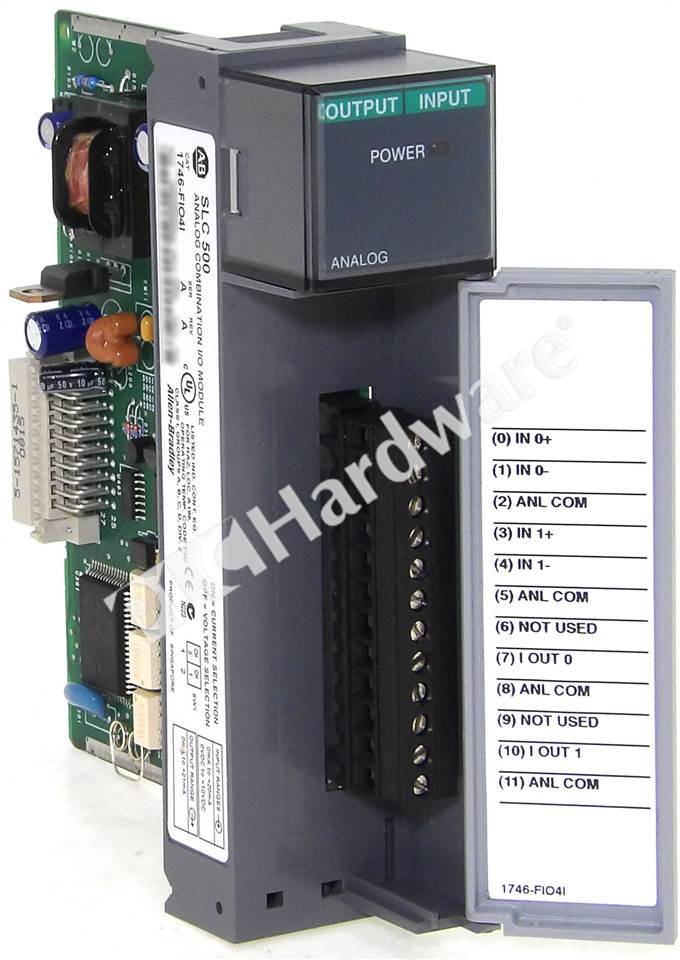

OverviewAllen-Bradley 1746-FIO4I SLC 500 I/O Fast Analog Module 4-Points
Mfr. Part Number:

1746-FIO4I

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1746-FIO4I SLC 500 Analog Module 2-Inputs 2-Current Outputs
Full Description: Allen-Bradley 1746-FIO4I SLC 500 Fast Analog Input/Output Module, 4-Point, 2 Differential Fast Analog Inputs (0-10V DC or 0-20 mA), 2 Current Outputs (0-20 mA)
UPC / GTIN: 10662468523407
Status: Discontinued by manufacturer
Inventory & Prices
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $2,170.00
Your Price: Not Available
Quantity:

To Order:
1746-FIO4I is not available for order at this time
Take a look at Great Deals on available related products below

1746-FIO4I
Specs & Technical Data
Specifications: Number of Inputs: 2 Differential (0-10V DC or 0-20 mA); Number of Outputs: 2 Current Outputs (0-20 mA); Current Loop Input Range: 0-20 mA (nom), 0-30 mA (max); Input Voltage, Max: ±7.5V DC or 7.5V AC RMS (Current Inputs); Input Operating Range, Voltage: 0-10V DC (max); Bandwidth: 7.0 kHz; Step Response (5-95%): 0.1 ms – Inputs, 2.5 ms – Outputs; Resolution (bits), Max: 12 – Input, 14 – Output; Backplane Current: 55mA @ 5V, 150mA @ 24V.
Miscellaneous: 1746-FIO4I module contains 2 analog input channels that are user selectable per channel for voltage or current and 2 analog current output channels to support a variety of monitoring and controlling applications. The 1746-FIO4I has two-switch assembly to configure the input channels for either current or voltage operation. Inputs are filtered to reject high frequency noise and provide 12-bit resolution with 0.1 ms channel response time. Required Terminal Block: 1746-RT27.
