OverviewAllen-Bradley 1746-HSCE2 SLC500 Multi-Channel High-Speed Counter
Mfr. Part Number:

1746-HSCE2/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1746-HSCE2 SLC 500 Multi-Channel High-Speed Counter 4-In/4-Out, A
Full Description: Allen-Bradley 1746-HSCE2 SLC 500 Multi-Channel High-Speed Counter Module, 4 single-ended or 2 differential quadrature inputs (5, 12, or 24V DC), 4 outputs (5V DC, 12V DC, or 24V DC source), 1.5 ms Maximum Module Update Time, Series A
UPC / GTIN: 10611320083757
Status: Current Product
Inventory & Prices
Condition:

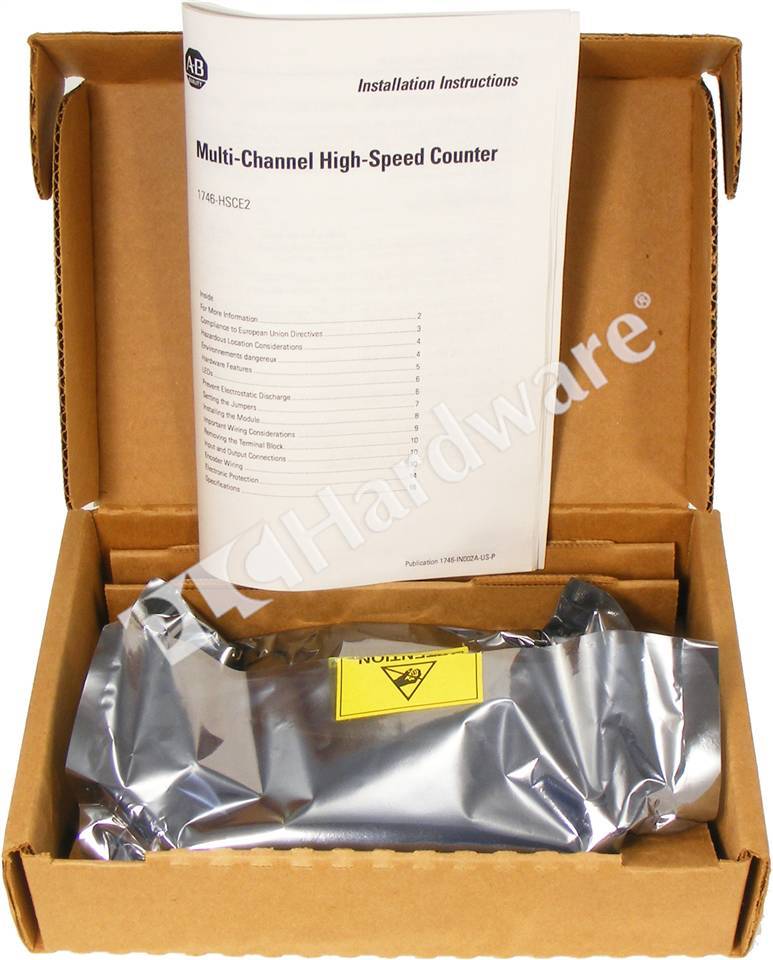

UFP (Used in a Factory Packaging)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $2,180.00
Your Price: $387.00
Quantity:


1746-HSCE2/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1746-HSCE2/A RA NFS Allen-Bradley 1746-HSCE2 SLC 500 Multi-Channel High-Speed Counter 4-In/4-Out, A $2,180.00 $971.00 -55% 3 buyit
1746-HSCE2/A RA NSO Allen-Bradley 1746-HSCE2 SLC 500 Multi-Channel High-Speed Counter 4-In/4-Out, A $2,180.00 $958.00 -56% 3 buyit
1746-HSCE2/A RA NSS Allen-Bradley 1746-HSCE2 SLC 500 Multi-Channel High-Speed Counter 4-In/4-Out, A $2,180.00 $1,073.00 -51% 2 buyit
1746-HSCE2/A RA UPP Allen-Bradley 1746-HSCE2 SLC 500 Multi-Channel High-Speed Counter 4-In/4-Out, A $2,180.00 $290.00 -87% 9 buyit
Specs & Technical Data
Specifications: Input Capability: 2 sets of +/-A,+/-B,+/-Z inputs; interface capability for 2 quadrature/differential encoders or 4 pulse single-ended inputs; Input Voltage: 4.2-12VDC, 10-30VDC; Frequency Response: 250KHz @ X4, 500KHz @ X2, 1MHz for all other; Maximum Count: +/- 32,768 (16 bit) with 5/01,5/02, & 1747-ASB in remote chassis, +/- 8,388,607 (24 bit) with 5/03,5/04, & 5/05 CPUs; Counting Capability: Linear counter, ring counter, rate calculation; Store/hold/continue counting capability; 4 soft outputs.
Miscellaneous: Allen-Bradley 1746-HSCE2 Physical Output Capability: 4 solid-state outputs, 5-30V DC, 1A maximum per point @ 60°C, 1.5A maximum per module @60°C, electronically protected. I/O Throughput to Backplane and On-Board Outputs: 300-1600 usec; 700 usec typical. HSCE2 is compatible with all SLC 500 CPU modules (5/01 through 5/05) and can be used with the 1747-ASB in a remote I/O chassis). Typical applications include packaging, material handling, flow monitoring, cut-to-length, motor speed control, and machining.
