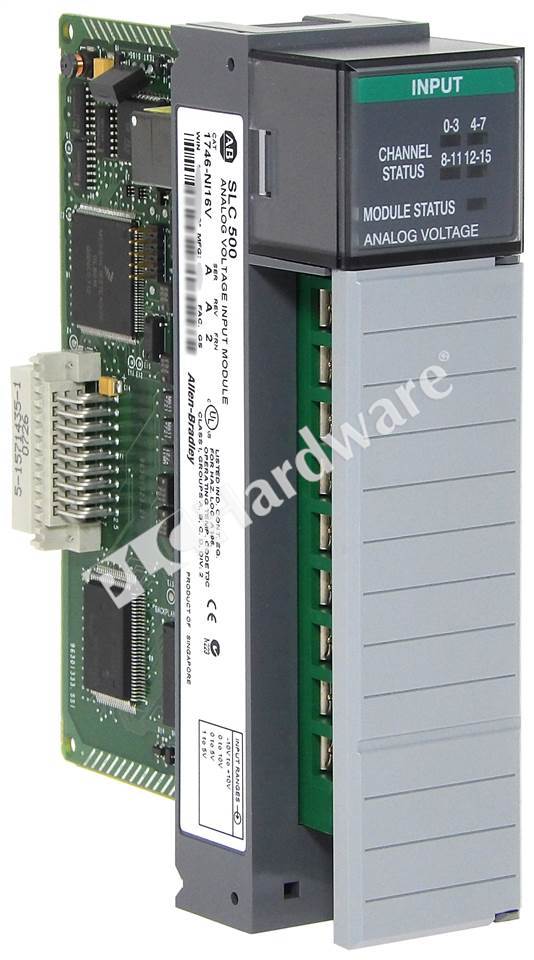

OverviewAllen-Bradley 1746-NI16V SLC 500 16-Ch Analog Input Module Ser A
Mfr. Part Number:

1746-NI16V/A

Manufacturer: Rockwell Automation
Description: Allen-Bradley 1746-NI16V SLC 500 16-Channel Analog Input Module ±10V DC, Ser. A
Full Description: Allen-Bradley 1746-NI16V SLC 500 High Density software configurable 16-Channel Analog Input Module, +/- 10V DC, Series A
Status: Current Product
Inventory & PricesAllen-Bradley 1746-NI16V SLC 500 16-Ch Analog Input Module Ser A
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 1 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $2,430.00
Your Price: $774.00
Quantity:


1746-NI16V/A
Specs & Technical Data Allen-Bradley 1746-NI16V SLC 500 16-Ch Analog Input Module Ser A
Specifications: 16 Selectable Inputs: ±10V DC, 0-5V DC, 1…5V DC, 0…10V DC; 16-bit Resolution; Common Mode Voltage Range: ±10.25V relative to the analog common terminal (20.5V maximum between any two signal terminals); Sigma Delta A/D Conversion; Backplane Current: 125mA @ 5V, 75 mA @ 24V; Type of Data (Selectable): Engineering Units, Scaled for PID, Proportional Counts (-32,768…32,767 range), Proportional Counts (User-Defined Range, Class 3 only), 1746-NI4 Data Format. 20Ω Input Impedance.
Miscellaneous: Allen-Bradley 1746-NI16V Backplane Power Consumption: 2.425W maximum (0.625 W at 5V DC, 1.8W at 24V DC). Factory calibrated.
