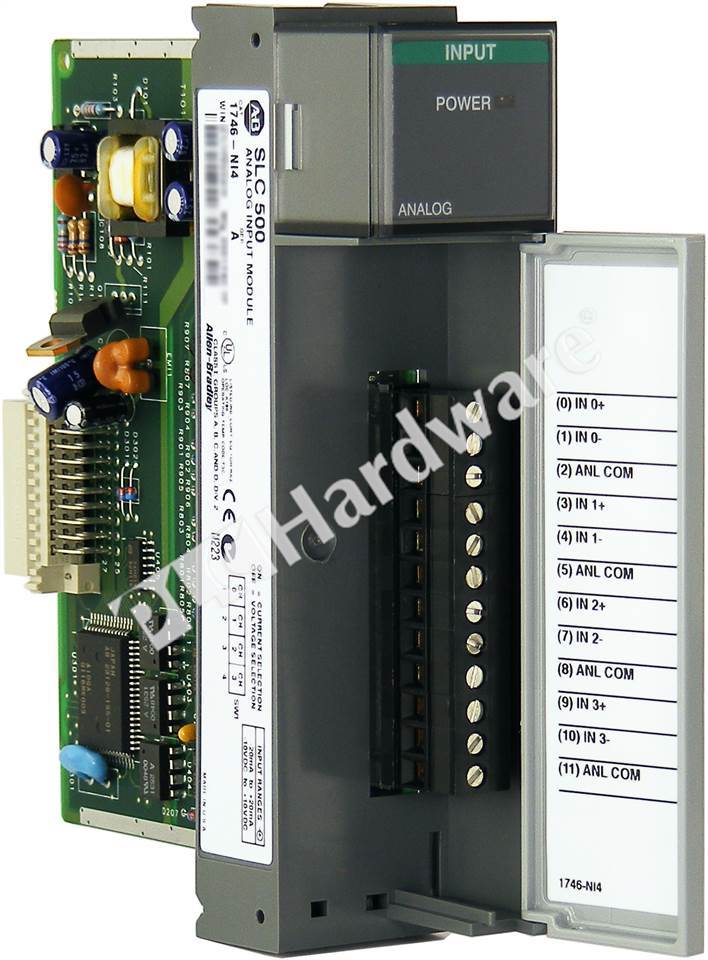

OverviewAllen-Bradley 1746-NI4 SLC 500 Analog Input Module 4-Ch, Ser. A
Mfr. Part Number:

1746-NI4/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1746-NI4 SLC 500 High Resolution Analog Input Module 4 Point Ser A
Full Description: Allen-Bradley 1746-NI4 SLC 500 High Resolution Analog Input Module, 4 Analog Inputs ±10V DC or ±20 mA, Series A
UPC / GTIN: 10662073735905
Status: Current Product
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
13 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $1,340.00
Your Price: $96.00
Quantity:


1746-NI4/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1746-NI4/B RA NSO Allen-Bradley 1746-NI4 SLC 500 High Resolution Analog Input Module 4 Point Ser B $1,340.00 $489.00 -64% 5 buyit
1746-NI4/B RA NSS Allen-Bradley 1746-NI4 SLC 500 High Resolution Analog Input Module 4 Point Ser B $1,340.00 $463.00 -65% 2 buyit
1746-NI4/B RA UPP Allen-Bradley 1746-NI4 SLC 500 High Resolution Analog Input Module 4 Point Ser B $1,340.00 $96.00 -93% 6 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1746-NI4 SLC 500 Analog Input Module, Number of Inputs: 4 Analog Inputs ±10V DC or ±20 mA; Current Loop Input Range ±20 mA (nominal), ±30 mA (maximum); Current Loop Input Coding ±16,384 for ±20mA; Absolute Maximum Input Voltage ±7.5V DC or 7.5V AC RMS; Nominal Input Impedance 250Ω; Voltage Input Range ±10V DC -1 LSB; Voltage Input Impedance: 1MΩ; Overvoltage Protection (IN+ to -IN): 220V DC or AC RMS continuously; Backplane Current: 25mA @ 5V, 85mA @ 24V; Resolution (bits), Max: 16.
Miscellaneous: Allen-Bradley 1746-NI4 Analog Input module contains 4 analog input channels that are user selectable per channel for voltage or current to support a variety of controlling applications. The 1746-NI4 has 4 individual DIP switches that control the input mode of input channels 0-3. A switch in the ON position configures the channel for current input, in the OFF position configures for voltage input. Inputs are filtered to reject high frequency noise and provide 14- to 16-bit (range-dependent) resolution.
