| Specs & Technical Data |

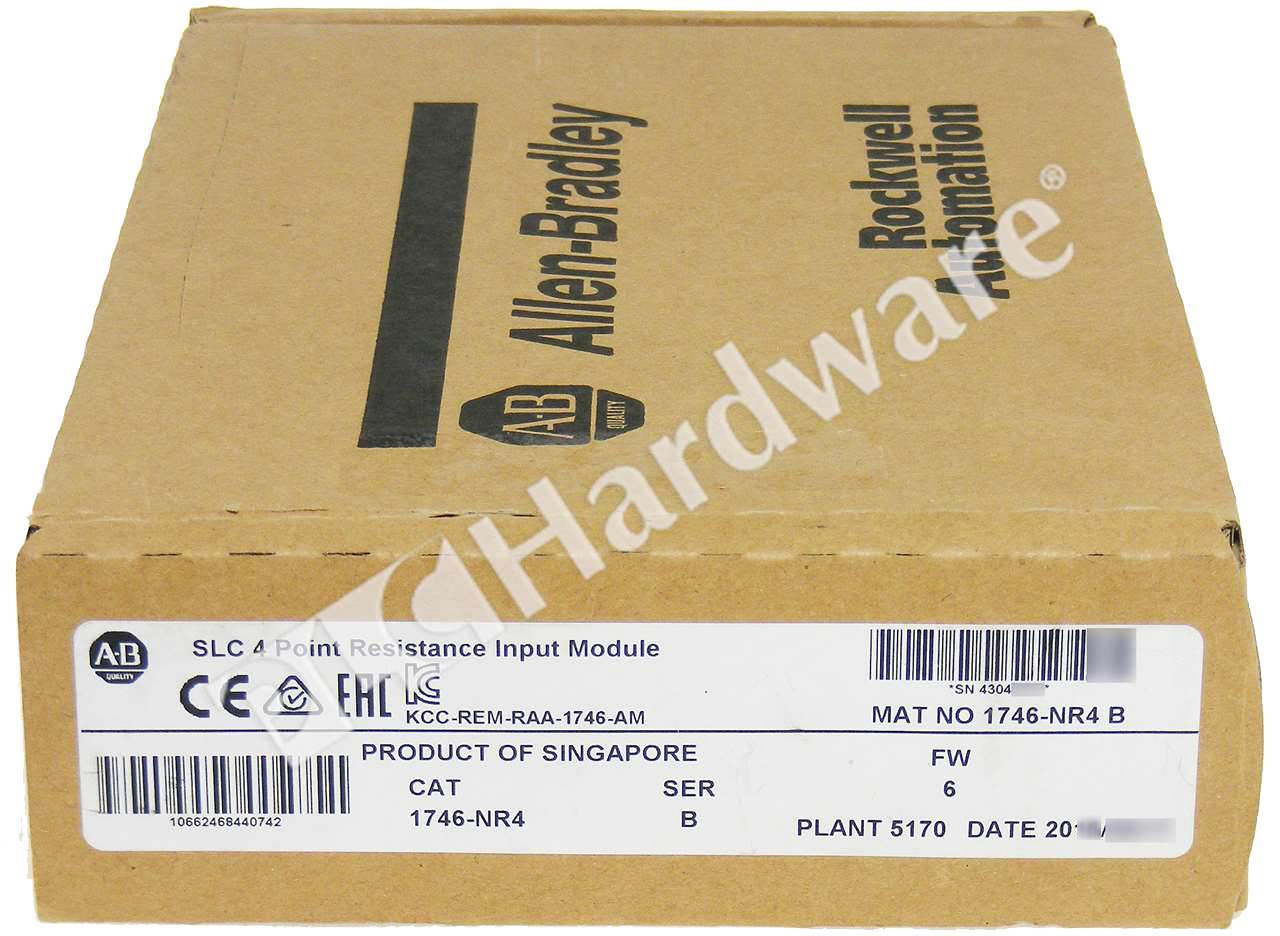

Allen-Bradley 1746-NR4 SLC 500 RTD/Resistance Analog Input Ser B |
| Specifications: |
4 RTD/Resistance inputs. Input Types: 100Ω, 200Ω, 500Ω Platinum; 120Ω Nickel; 604Ω Nickel/Iron; 10Ω Copper; 150Ω, 500Ω, 1000Ω, 3000Ω direct resistance. Current Load: 50mA @ 5V, 50mA @ 24V; Bandwidth: 2.62-65.5Hz; Step Response @ 95%: 12-300ms; Update Period: 17ms to 1.2s; Maximum Resolution: 16-bits; Filter Frequency/Channel Scan Time: 10Hz/305ms, 50Hz/65ms, 60Hz/55ms, 250Hz/17ms. |
|
|
| Miscellaneous: |
The 1746-NR4 receives & stores digitally converted analog data from RTDs or other resistance inputs such as potentiometers into its image table for retrieval by all fixed and modular SLC 500 processors. An RTD consists of a temperature-sensing element connected by 2, 3 or 4 wires that provide input to the RTD module. The module supports connections from any combination of up to four RTDs of various types (for example: platinum, nickel, copper, or nickel-iron) or other resistance inputs. |
|
