OverviewAllen-Bradley 1756-IF16H ControlLogix 16 Analog Inputs, HART, A
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1756-IF16H ControlLogix Analog Input Module 16-Point HART, Ser. A
Full Description: Allen-Bradley 1756-IF16H ControlLogix Current Analog Input Module with HART Protocol, 16 Differential Current Inputs 0-20mA, 4-20mA; Dedicated HART Modem per Channel, Series A
UPC / GTIN: 10885630003419
Status: Current Product
Inventory & Prices

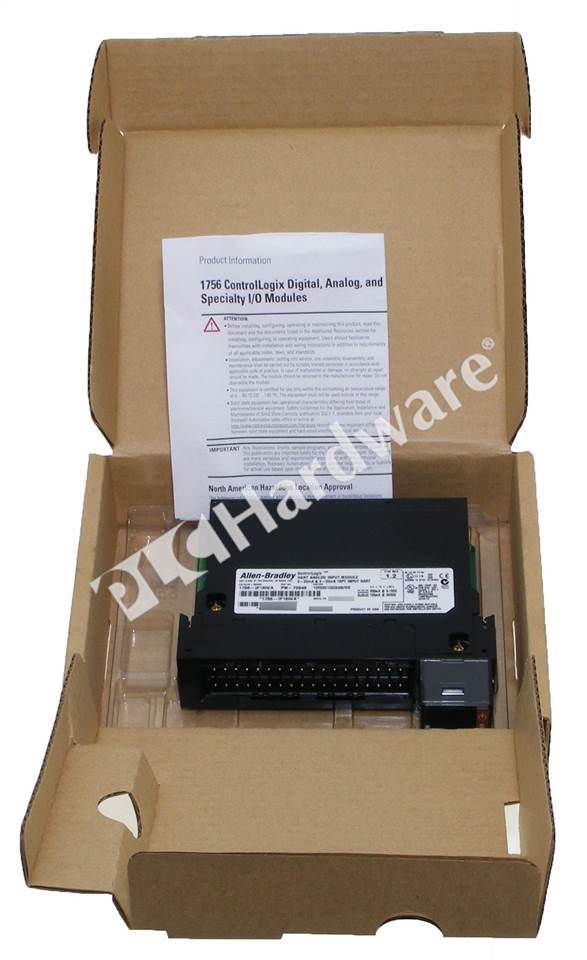

NSO (New Surplus Open)

Warranty: One Year Replacement Warranty
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $2,250.00
Your Price: $1,984.00
Specs & Technical Data
Specifications: 16 Differential Current Inputs 0-20mA, 4-20mA; Resolution: 16-21 Bits; Voltage & Current Backplane Ratings: 5.1V DC @ 200 mA, 24V DC @ 125 mA; Input Current Range: 0-20 mA; Total Backplane Power: 4.02W.
Miscellaneous: Module HART Scan Time: 1 second (Pass through messages, handheld communicators, secondary masters, communication errors, or configuration changes can significantly increase the update time); Data Format: Integer mode (left justified, 2s complement) IEEE 32-bit floating point; Input Conversion Method: Successive Approximation; Output Conversion Method: R-Ladder DAC, Monotonicity with no missing codes.
