OverviewAllen-Bradley 1756-OA16 ControlLogix Output Module 16-Ch AC, A
Mfr. Part Number:

1756-OA16/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1756-OA16 ControlLogix Output Module 74-265 VAC 16-Ch (20 Pin), A
Full Description: Allen-Bradley 1756-OA16 ControlLogix AC Output Module, 74-265V AC, 16 Mechanically Fused/Group Outputs (8 Points/Group, 20 Pin), Series A
UPC / GTIN: 10612598171368
Status: Current Product
Inventory & Prices
Condition:

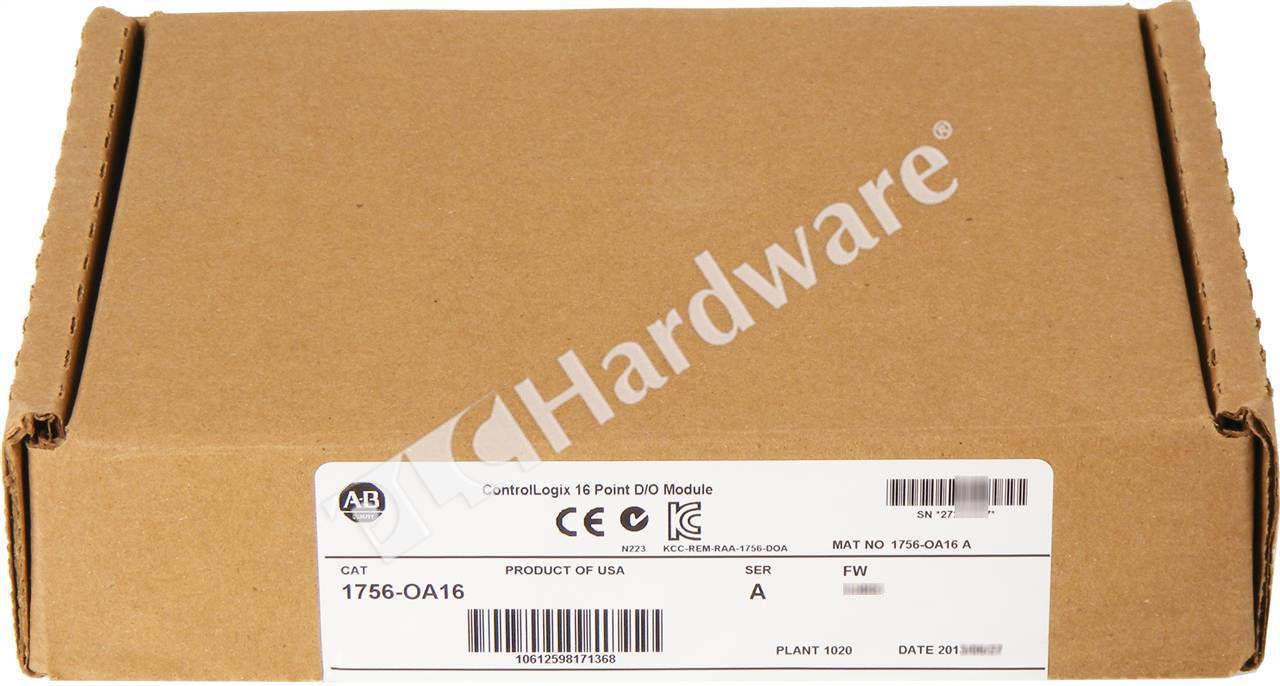

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
Availability:
2 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $719.00
Your Price: $437.00
Quantity:


1756-OA16/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1756-OA16/A RA NFS Allen-Bradley 1756-OA16 ControlLogix Output Module 74-265 VAC 16-Ch (20 Pin), A $719.00 $436.00 -39% 6 buyit
1756-OA16/A RA NSO Allen-Bradley 1756-OA16 ControlLogix Output Module 74-265 VAC 16-Ch (20 Pin), A $719.00 $404.00 -44% 7 buyit
1756-OA16/A RA UPP Allen-Bradley 1756-OA16 ControlLogix Output Module 74-265 VAC 16-Ch (20 Pin), A $719.00 $121.00 -83% 19 buyit
1756-OA16I/A RA NFS Allen-Bradley 1756-OA16I ControlLogix Isolated Output Module 74-265V AC 16-Ch, A $899.00 $484.00 -46% 1 buyit
1756-OA16I/A RA NSO Allen-Bradley 1756-OA16I ControlLogix Isolated Output Module 74-265V AC 16-Ch, A $899.00 $377.00 -58% 2 buyit
1756-OA16I/A RA NSS Allen-Bradley 1756-OA16I ControlLogix Isolated Output Module 74-265V AC 16-Ch, A $899.00 $453.00 -50% 2 buyit
1756-OA16I/A RA UPP Allen-Bradley 1756-OA16I ControlLogix Isolated Output Module 74-265V AC 16-Ch, A $899.00 $126.00 -86% 1 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1756-OA16 ControlLogix AC Output Module, Number of Outputs: 16 Mechanically Fused/Group outputs (8 Points/Group); Voltage Category: 120/240V AC; Operating Voltage Range: 74-265V AC, 47-63Hz; Output Delay, Off to On: 9.3ms @ 60Hz, 11ms @ 50Hz; Output Delay, On to Off: 9.3ms @ 60Hz, 11ms @ 50Hz; Current Draw @ 5.1V: 400mA; Current Draw @ 24V: 2mA; Power Dissipation, Max: 6.5W @ 60 °C; Current Per Point, Max: 0.5A @ 60 °C; Current Per Module, Max: 4A @ 60 °C; Isolation Voltage: 265V Continuous.
Miscellaneous: Allen-Bradley 1756-OA16 ControlLogix AC Output Module features: Fault states per point: Hold Last State, On or Off; States in Program Mode per point: Hold Last State, On or Off; Fusing: Mechanically fused/group, 3.15A @ 250V AC slow blow. Each 1756-OA16 module maintains specific identification information that separates it from all other modules. The 1756-OA16 module mounts in a ControlLogixchassis and uses a RTB: 1756-TBNH or 1756-TBSH, or an Interface Module (IFM) to connect all field-side wiring.
