OverviewAllen-Bradley 1756-OB16D ControlLogix Diagnostic Output Module A
Mfr. Part Number:

1756-OB16D/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1756-OB16D ControlLogix 19-30VDC Diagnostic Output Module 16P, A
Full Description: Allen-Bradley 1756-OB16D ControlLogix Digital DC Output Module, 19.2-30V DC, 16 Diagnostic Outputs (36 Pin), Series A
UPC / GTIN: 10612598164537
Status: Current Product
Inventory & Prices
Condition:

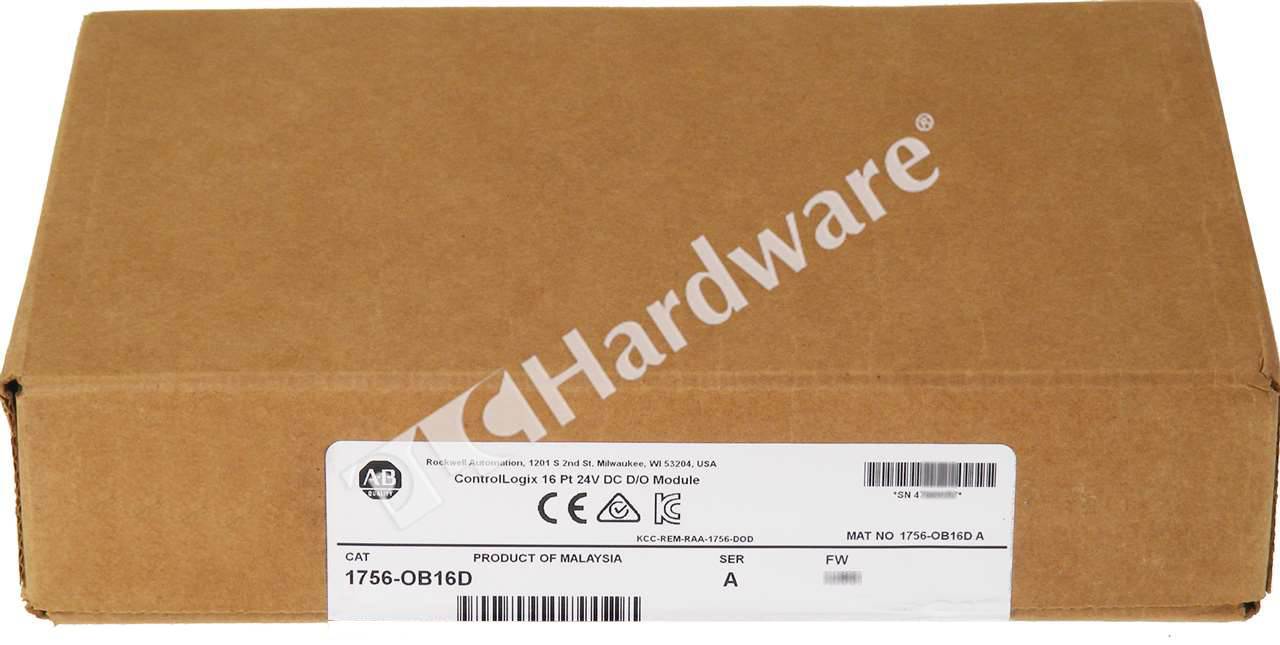

NFS (New Factory Sealed)

Warranty: 30 Days Replacement Warranty
Availability:
0 in stock 3 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $899.00
Your Price: $413.00
Quantity:


1756-OB16D/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1756-OB16D/A RA NSO Allen-Bradley 1756-OB16D ControlLogix 19-30VDC Diagnostic Output Module 16P, A $899.00 $383.00 -57% 4 buyit
1756-OB16D/A RA NSS Allen-Bradley 1756-OB16D ControlLogix 19-30VDC Diagnostic Output Module 16P, A $899.00 $395.00 -56% 4 buyit
1756-OB16D/A RA UPP Allen-Bradley 1756-OB16D ControlLogix 19-30VDC Diagnostic Output Module 16P, A $899.00 $135.00 -85% 1 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1756-OB16D ControlLogix Digital DC Output module, Number of Outputs: 16 Diagnostic Outputs (8 points/group); Voltage category: 24V DC Source; Operating voltage range: 19.2-30V DC; Output delay, Off to On: 1 ms; Output delay, On to Off: 5 ms; Current Draw @ 5.1V: 250 mA; Current Draw @ 24V: 140 mA; Current per point, Max: 2A @ 30°C & 1A @ 60°C; Current per module, Max: 8A @ 30°C & 4A @ 60°C; Isolation Voltage: 250V Continuous; Power Dissipation, Max: 3.3W @ 60 °C.
Miscellaneous: Allen-Bradley 1756-OB16D ControlLogix Digital DC Output module provides following diagnostic features: Short Trip, No Load Detection, Output Verification, Pulse Test, Time Stamp of Diagnostics. Each 1756-OB16D module maintains specific identification information that separates it from all other modules. The 1756-OB16D module mounts in a ControlLogixchassis and uses a Removable Terminal Block (RTB): 1756-TBCH or 1756-TBS6H, or an Interface Module (IFM) to connect all field-side wiring.
