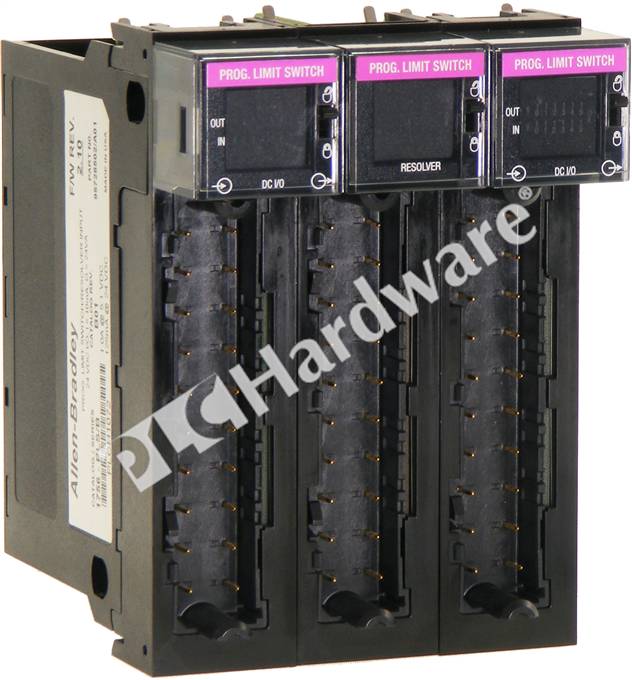

OverviewAllen-Bradley 1756-PLS ControlLogix Programmable Limit Switch, B
Mfr. Part Number:

1756-PLS/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1756-PLS ControlLogix Programmable Limit Switch Module 3-20 Pin, B
Full Description: Allen-Bradley 1756-PLS ControlLogix Programmable Limit Switch Module, 3-Slot Wide Module, 4 Groups of 4 Inputs and 4 Outputs each, Resolver Interface and I/O Control, (3-20 Pin), Series B
Status: Current Product
Inventory & Prices
Condition:

NSO (New Surplus Open)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $4,230.00
Your Price: $525.00
Quantity:


1756-PLS/B
Similar Parts Mfr Cond Description Retail Price Disc Qty
1756-PLS/B RA UPP Allen-Bradley 1756-PLS ControlLogix Programmable Limit Switch Module 3-20 Pin, B $4,230.00 $298.00 -93% 7 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1756-PLS ControlLogix Programmable Limit Switch Module, Module Location: 3 Contiguous Slots of a 1756 ControlLogix Chassis; Number of Inputs/Outputs: Left Section - 2 Groups of 4 Outputs (12-24V DC) and 4 Inputs (12-24V DC) each, Center Section - Resolver Interface and I/O Control, Right Section - 2 Groups of 4 Outputs (12-24V DC) and 4 Inputs (12-24V DC) each; Resolver Digital Resolution: 12 bits (4096 counts from hardware); Backplane Requirements: 1A @ 5.1V DC & 125mA @ 24V DC.
Miscellaneous: Allen-Bradley 1756-PLS ControlLogix Programmable Limit Switch Module connects to resolver and energizes or deenergizes outputs based on resolver’s position. The 1756-PLS Module can only be used with the following resolver: 846-SJxxxx-R3 (x=options). The 1756-PLS Module operates as a high speed resolver input module. An Allen-Bradley ControlLogix PLS module mounts in a ControlLogix Chassis and requires 3 RTBs: 1756-TBNH or 1756-TBSH.
