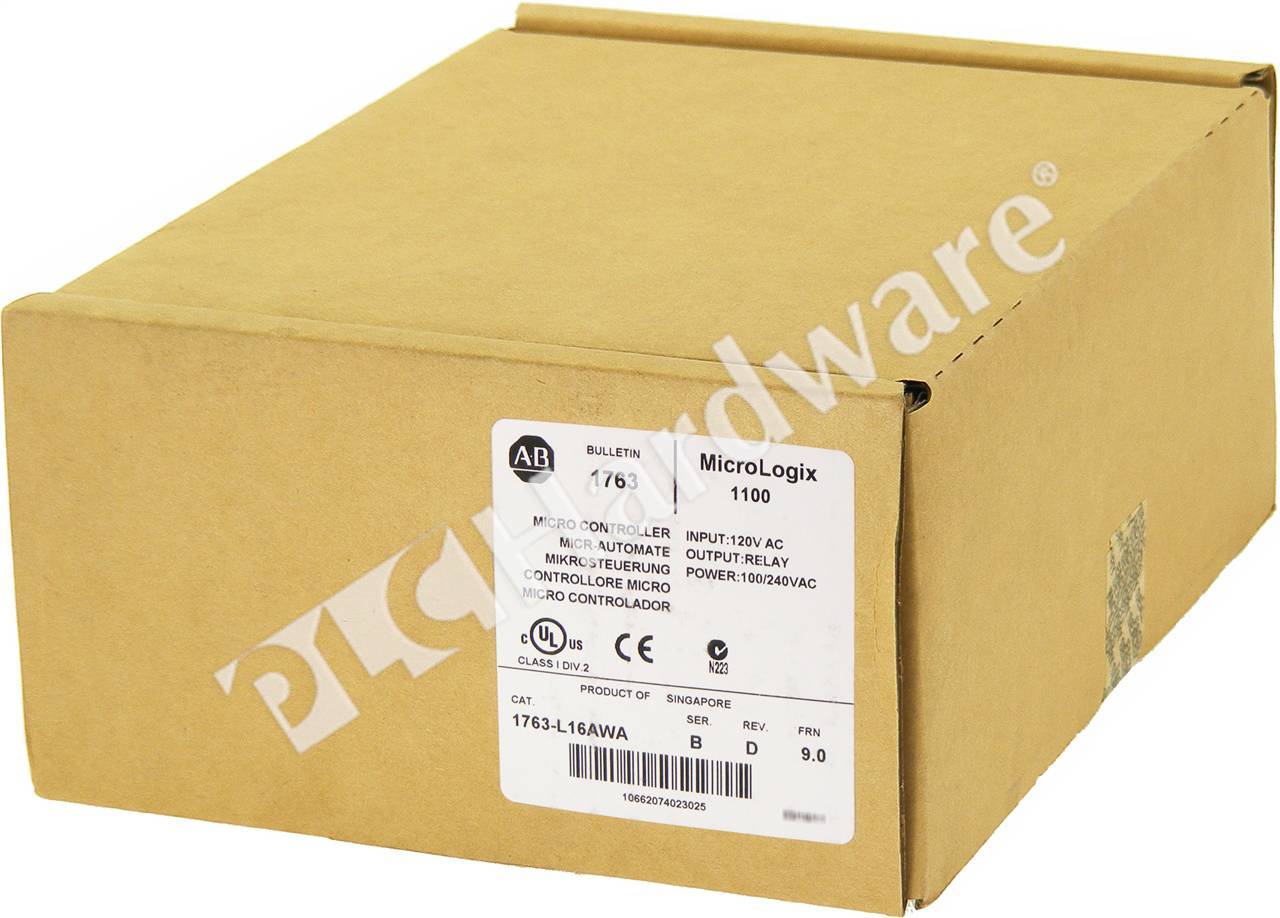

OverviewAllen-Bradley 1763-L16AWA MicroLogix 1100 Controller 16 I/O, B
Mfr. Part Number:

1763-L16AWA/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1763-L16AWA MicroLogix 1100 Controller, 120/240VAC 16-Points Ser B
Full Description: Allen-Bradley 1763-L16AWA MicroLogix 1100 Small Logic Controller, 120/240V AC Power, (10) 120V AC Digital Inputs, (2) 0-10V Analog Voltage Inputs, (6) Relay Outputs, Series B
UPC / GTIN: 10662074023025
Status: Current Product
Inventory & Prices
Condition:

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 2 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $680.00
Your Price: $543.00
Quantity:


1763-L16AWA/B
Similar Parts Mfr Cond Description Retail Price Disc Qty
1763-L16AWA/B RA NSO Allen-Bradley 1763-L16AWA MicroLogix 1100 Controller, 120/240VAC 16-Points Ser B $680.00 $319.00 -53% 1 buyit
1763-L16AWA/B RA UPP Allen-Bradley 1763-L16AWA MicroLogix 1100 Controller, 120/240VAC 16-Points Ser B $680.00 $412.00 -39% 2 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1763-L16AWA MicroLogix 1100 Controller, Number of I/O: 10 Digital Inputs, 2 Analog Inputs, 6 Outputs; Input Type: 120V AC 47-63 Hz (Digital), 0-10V DC (Analog); Output Type: Individually Isolated Relay; Output Operating Voltage Range: 5-264V AC, 5-125V DC; Input Voltage Range: 79-132V AC; Inrush Current (max.) at 120V AC: 250 mA; Analog Input Voltage Impedance: 210 kOhm; Input Resolution: 10-bit; Overall Accuracy: ±0.5% full scale at -20…65 °C.
Miscellaneous: Allen-Bradley 1763-L16AWA Controller provides 8K-word memory for a maximum program of 4K words and maximum data of 4K words with 100% data retention. An optional memory module can be used with 1763-L16AWA controller to provide program and data backup with program upload and download capability. The optional real-time clock can be used with this 1763-L16AWA controller to enable time scheduling of control activities. The 1763L16AWA Controller can be mounted either on a panel or on a DIN-rail.
