Rockwell Automation > PLC & HMI > Controllers > CompactLogix > 1769-L23E-QB1B/B

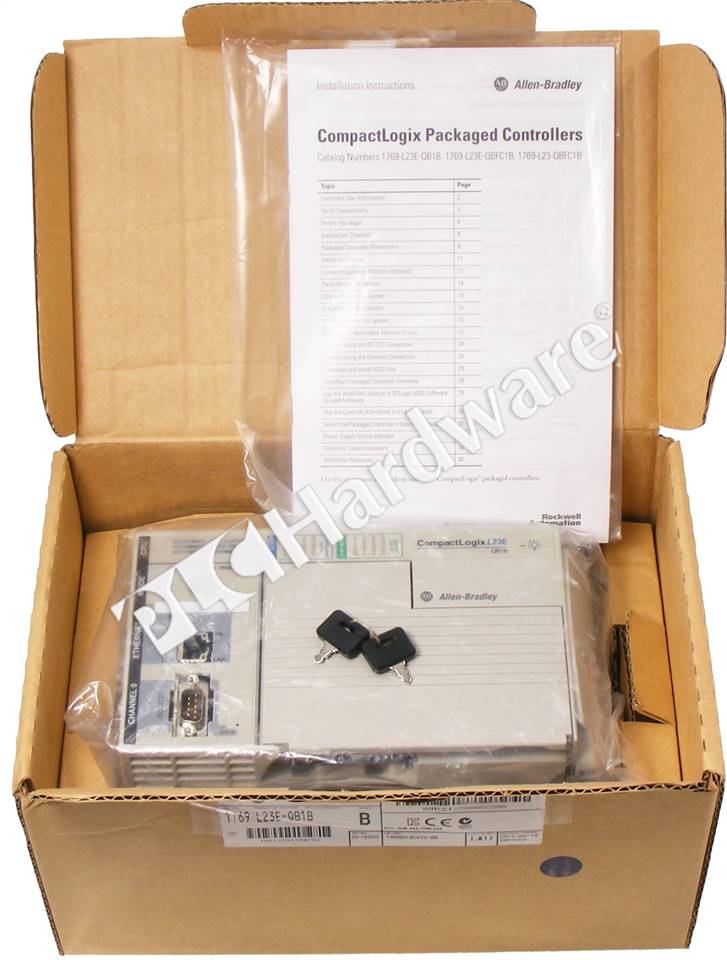

OverviewAllen-Bradley 1769-L23E-QB1B Packaged EtherNet Controller, 512KB
Mfr. Part Number:

1769-L23E-QB1B/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1769-L23E-QB1B CompactLogix Packaged EtherNet Controller, 512KB, B
Full Description: Allen-Bradley 1769-L23E-QB1B CompactLogix Packaged EtherNet Processor, 512 Kbyte Memory, (1) EtherNet/IP Port & (1) RS-232 Serial Port (DF1 or ASCII), 16 DC Inputs, 16 DC Outputs, 24V DC Power, Series B
UPC / GTIN: 10612598350763
Status: Discontinued by manufacturer
Inventory & Prices
Condition:

NSO (New Surplus Open)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $2,640.00
Your Price: $1,454.00
Quantity:


1769-L23E-QB1B/B
Similar Parts Mfr Cond Description Retail Price Disc Qty
1769-L23E-QB1B/A RA UPP Allen-Bradley 1769-L23E-QB1B CompactLogix Packaged EtherNet Controller, 512KB, A $2,640.00 $674.00 -74% 1 buyit
1769-L23E-QB1B/B RA UPP Allen-Bradley 1769-L23E-QB1B CompactLogix Packaged EtherNet Controller, 512KB, B $2,640.00 $824.00 -69% 1 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1769-L23E-QB1B CompactLogix Packaged EtherNet Processor, Application: Small Applications, Embedded I/O Modules; Controller Tasks: 3 tasks, 4 programs total (Only 1 Continuous); User Memory: 512KB; CompactFlash Card: None; Communication Ports: EtherNet/IP & RS-232 (DF1 or ASCII); Communication Options: EtherNet/IP, DeviceNet; Embedded I/O: 16 DC Inputs, 16 DC Outputs; Module Expansion: Up to 3 1769 Modules; Embedded PS: 24V DC; Backplane Current @ 5V: 1000 mA; Backplane Current @ 24V: 700 mA.
Miscellaneous: Allen-Bradley 1769-L23E-QB1B CompactLogix Packaged EtherNet Controller comes with: Built-in power supply, one serial and one EtherNet/IP port, combination of embedded digital I/O, 1769-ECR right-end cap. The 1769-L23E-QB1B can accept up to three additional 1769 modules to the right of the controller package. The RPI (request packet interval) defines the frequency at which the controller sends and receives all I/O data on the backplane, the fastest RPI for 1769-L23E-QB1B Controller is 1.0 ms.
