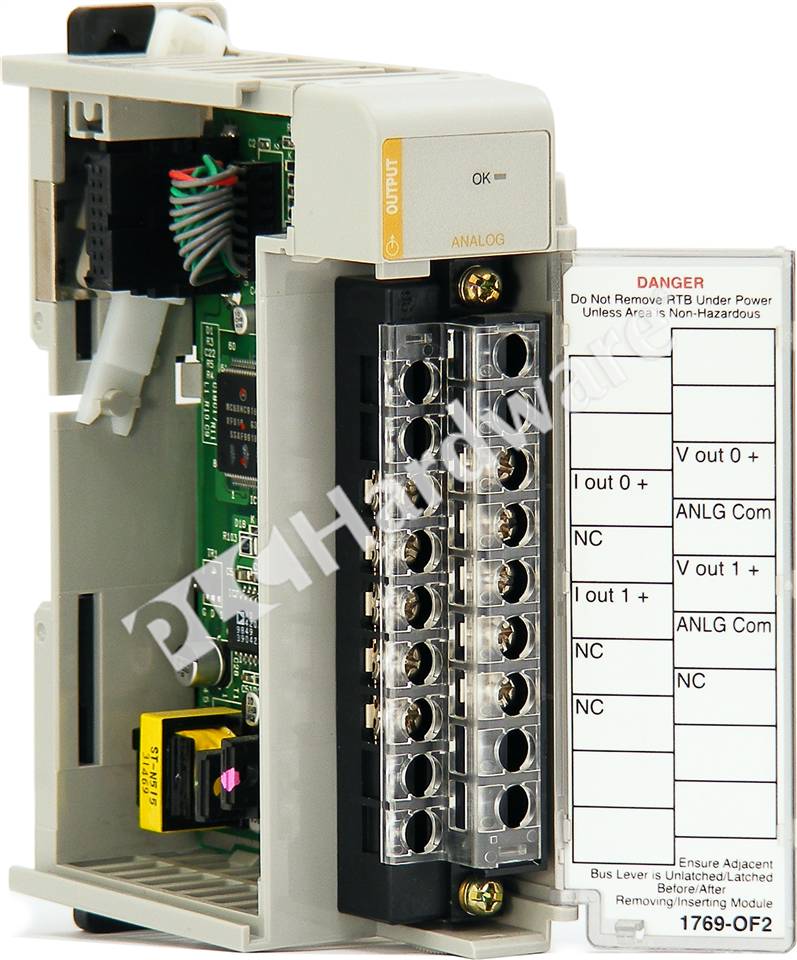

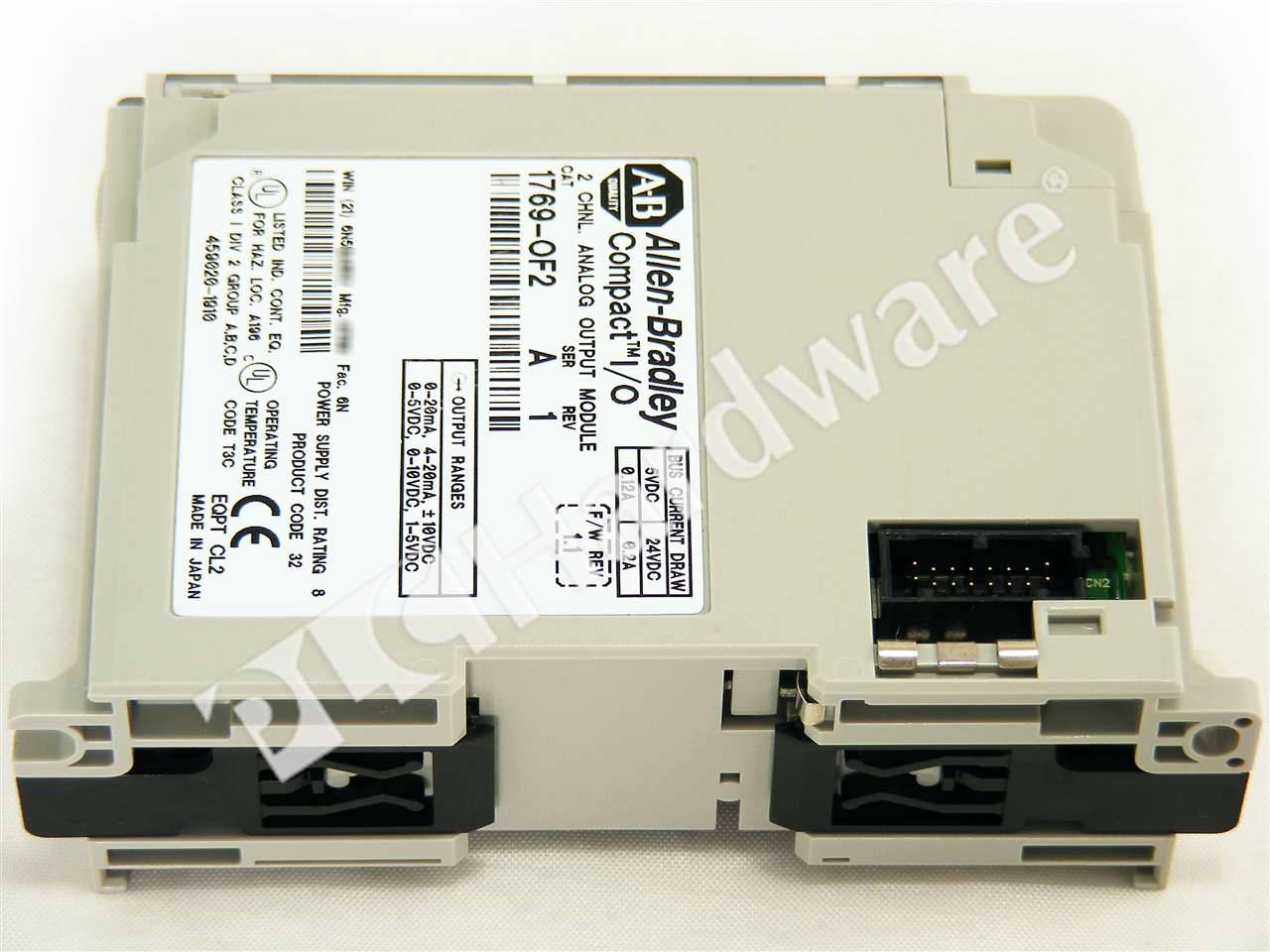

OverviewAllen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Output Module, A
Mfr. Part Number:

1769-OF2/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Current/Voltage Output Module, A
Full Description: Allen-Bradley 1769-OF2 CompactLogix 2 Channel Analog Current/Voltage Output Module, Series A
UPC / GTIN: 10662468992944
Status: Current Product
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $539.00
Your Price: $254.00
Quantity:


1769-OF2/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1769-OF2/B RA NFS Allen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Current/Voltage Output Module, B $539.00 $308.00 -43% 1 buyit
1769-OF2/B RA NSO Allen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Current/Voltage Output Module, B $539.00 $251.00 -53% 1 buyit
1769-OF2/B RA NSS Allen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Current/Voltage Output Module, B $539.00 $308.00 -43% 1 buyit
1769-OF2/B RA UPP Allen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Current/Voltage Output Module, B $539.00 $214.00 -60% 7 buyit
Specs & Technical Data

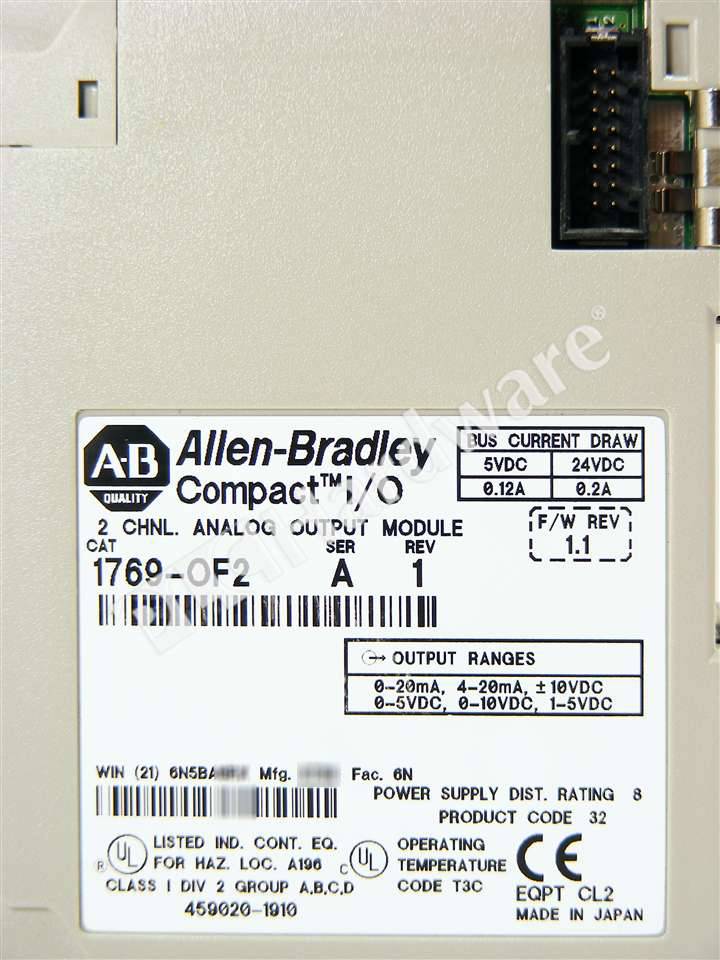

Specifications: Allen-Bradley 1769-OF2 CompactLogix Analog Output Module, Number of Outputs: 2 Outputs, Single-ended; Output Type: Current/Voltage; Output Range, Voltage: 0…5V, 1…5V, 0…10V, ±10V; Output Range, Current: 0…20 mA, 4…20 mA; Resolution: 14 bits (unipolar), 14 bits plus sign (bipolar); Bus Current Draw, Max: 120mA @ 5V DC & 120mA @ 24V DC; Overall Accuracy: ±0.5% full scale at 25°C (Voltage Terminal), ±0.35% full scale at 25°C (Current Terminal); Power Supply Distance Rating: 8 Modules.

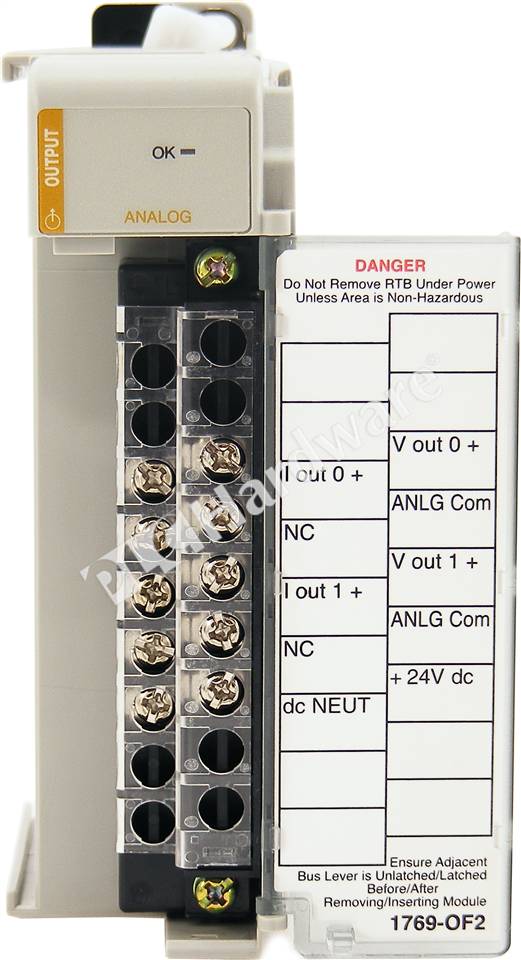

Miscellaneous: Allen-Bradley 1769-OF2 Compact I/O Analog Output Module has 2 current or voltage selectable output channels. The 1769-OF2 module communicates to the controller through the bus interface and also receives 5V and 24V DC power through the bus interface. The 1769-OF2 module may not be more than 8 modules away from the power supply. The series A 1769-OF2 module differs from the series B module only in that it does not allow to draw 24V DC power from an external source to the module.
