Rockwell Automation > PLC & HMI > I/O Products > CompactLogix > 1769-OF2/B

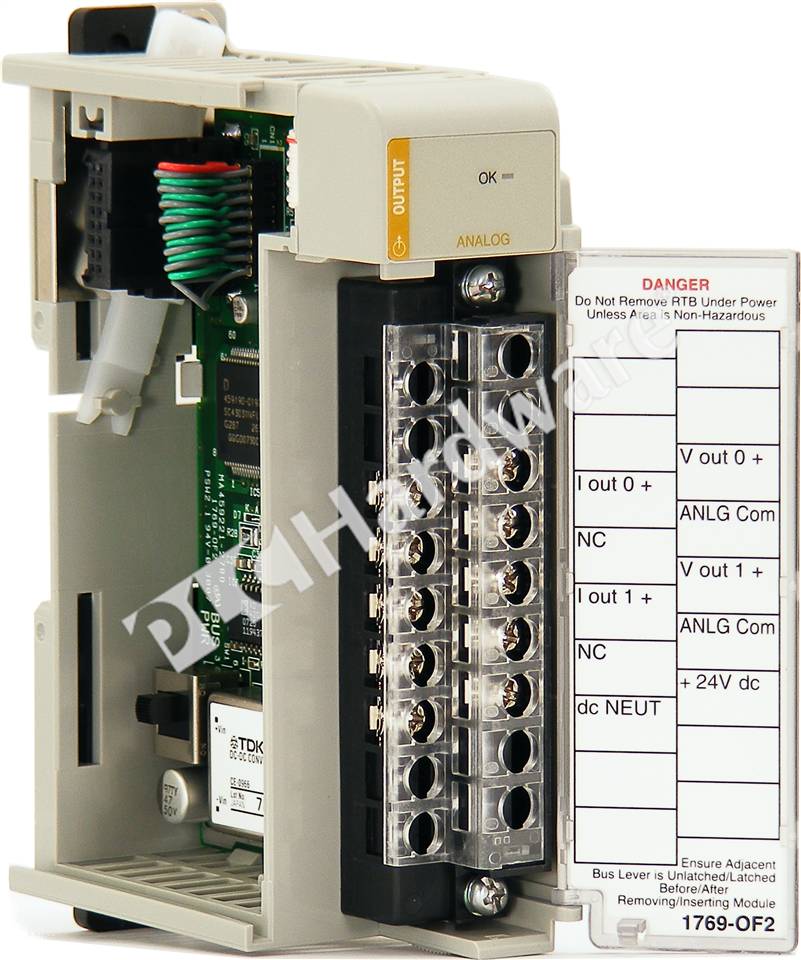

OverviewAllen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Output Module, B
Mfr. Part Number:

1769-OF2/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Current/Voltage Output Module, B
Full Description: Allen-Bradley 1769-OF2 CompactLogix Output Module with 2-Channel Analog Current/Voltage Single-ended, Series B
UPC / GTIN: 10662468992944
Status: Current Product
Inventory & Prices
Condition:

NSO (New Surplus Open)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 3 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $539.00
Your Price: $346.00
Quantity:


1769-OF2/B
Similar Parts Mfr Cond Description Retail Price Disc Qty
1769-OF2/A RA UPP Allen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Current/Voltage Output Module, A $539.00 $364.00 -32% 1 buyit
1769-OF2/B RA NSS Allen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Current/Voltage Output Module, B $539.00 $356.00 -34% 3 buyit
1769-OF2/B RA UPP Allen-Bradley 1769-OF2 CompactLogix 2-Ch Analog Current/Voltage Output Module, B $539.00 $220.00 -59% 6 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1769-OF2 CompactLogix Analog Output Module, Number of Outputs: 2 Outputs, Single-ended; Output Type: Current/Voltage; Output Range, Voltage: 0…5V, 1…5V, 0…10V, ±10V; Output Range, Current: 0…20 mA, 4…20 mA; Resolution: 14 bits (unipolar), 14 bits plus sign (bipolar); Bus Current Draw, Max: 120mA @ 5V DC & 120mA @ 24V DC; Overall Accuracy: ±0.5% full scale at 25°C (Voltage Terminal), ±0.35% full scale at 25°C (Current Terminal); Power Supply Distance Rating: 8 Modules.
Miscellaneous: Allen-Bradley 1769-OF2 Compact I/O Analog Output Module has 2 current or voltage selectable output channels. The 1769-OF2 module communicates to the controller through the bus interface and also receives 5V and 24V DC power through the bus interface. The 1769-OF2 module may not be more than 8 modules away from the power supply. MicroLogix 1500 does not support the 1769-OF2 module’s default hold last state function and resets analog outputs to zero when the system enters the fault mode.
