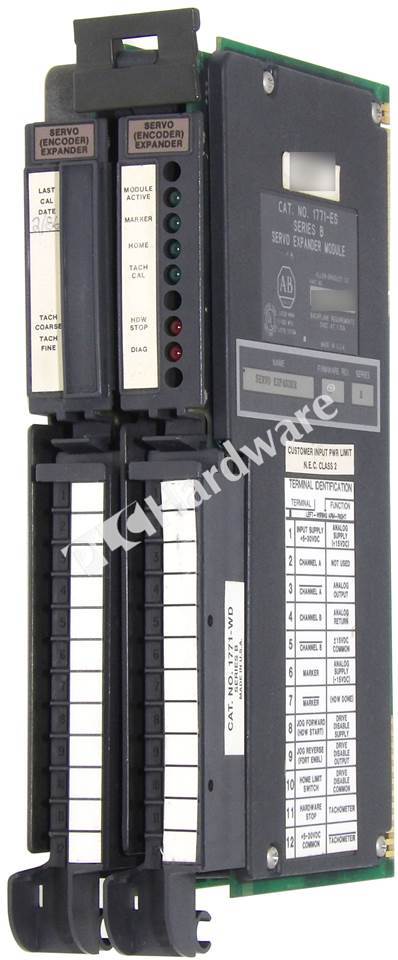

OverviewAllen-Bradley 1771-ES PLC-5 Servo Encoder Feedback Expander, B
Mfr. Part Number:

1771-ES/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1771-ES PLC-5 Servo Encoder Feedback Expander Module, 5-30V DC, B
Full Description: Allen-Bradley 1771-ES PLC-5 Servo Encoder Feedback Expander Module, 5-30V DC Inputs, ±10V DC Servo Output Voltage, Series B
UPC / GTIN: 10612598001757
Status: Discontinued by manufacturer
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 3 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $5,028.00
Your Price: $89.00
Quantity:


1771-ES/B
Specs & Technical Data
Specifications: Allen-Bradley 1771-ES Servo Output Voltage: ±10V DC max, isolated; D/A Converter: Signed 12 bit res; Encoder Multiplier: x1, x2, or x4, programmable; Tachometer Input: Full Scale Voltage: 3V min, 50V max; Input Impedance: 20KOhms; Hardware Done Output: On: +15V source thru 1KOhms; Off: 5.0mA sink; Drive Disable Output: Current: 100mA max, source or sink; Voltage: 30V DC max.
Miscellaneous: Allen-Bradley 1771-ES Servo encoder feedback expander provides: incremental digital encoder feedback - for precise closed-loop positioning; absolute or incremental positioning commands - for programming flexibility; programmable gain break - to allow high gain for precise positioning at low speed and low gain for stability at high speed; programmable acceleration/deceleration - to optimize the machine cycle time over varying loads; programmable in-position band - for flexibility of positioning accuracy.
