OverviewAllen-Bradley 1771-IGD PLC-5 Digital Input Module, 5V DC 16-P, A
Mfr. Part Number:

1771-IGD/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1771-IGD PLC-5 Digital Input Module, 5V DC TTL, 16-Point, Series A
Full Description: Allen-Bradley 1771-IGD PLC-5 Digital Input Module, 16 x 5V DC Digital Inputs, TTL, Wiring Arm: 1771-WH, Series A
UPC / GTIN: 10612598002327
Status: Current Product
Inventory & Prices
Condition:

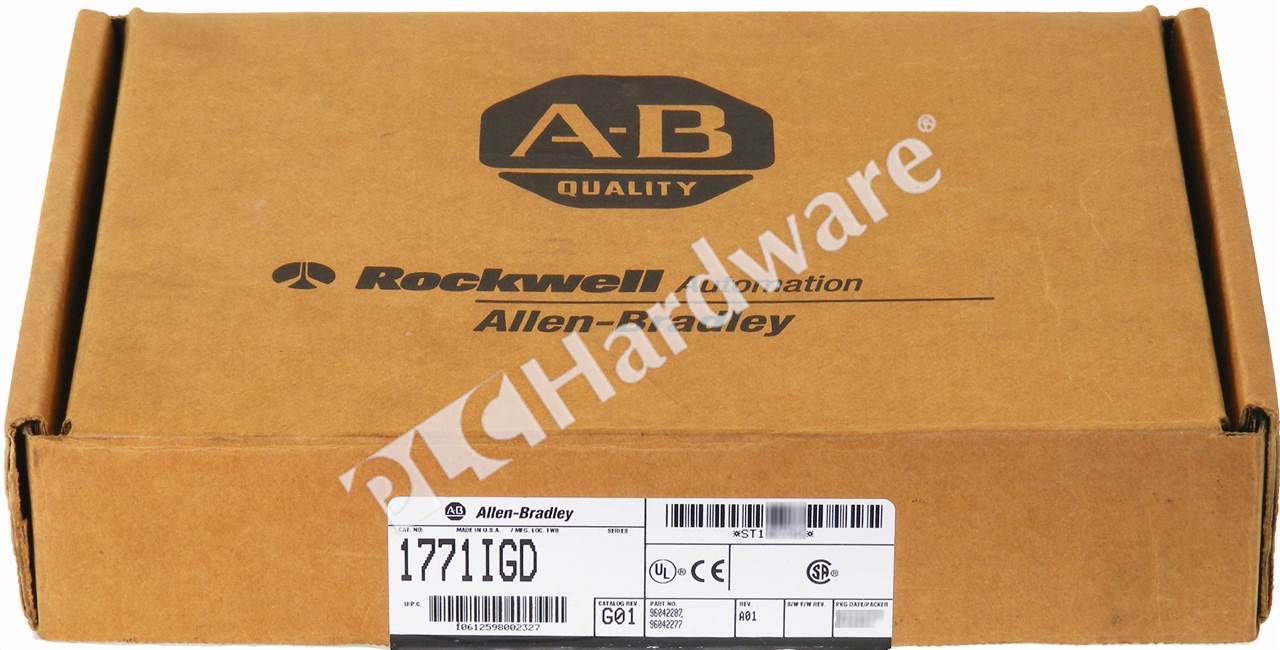

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $1,590.00
Your Price: $1,264.00
Quantity:


1771-IGD/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1771-IGD/A RA NSO Allen-Bradley 1771-IGD PLC-5 Digital Input Module, 5V DC TTL, 16-Point, Series A $1,590.00 $394.00 -75% 3 buyit
1771-IGD/A RA UPP Allen-Bradley 1771-IGD PLC-5 Digital Input Module, 5V DC TTL, 16-Point, Series A $1,590.00 $67.00 -96% 27 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1771-IGD Input Voltage Rating: HIGH=TRUE ON: 2.0 to 5.25V DC, OFF: -0.2 to +0.8V DC; LOW=TRUE ON: -0.2 to +0.8V DC, OFF: 2.0 to 5.25V DC; Customer Supply Voltage: 5.0V DC (+0.25V), 50mV peaktopeak ripple max; Customer Current Sink Requirements: 7mA maximum (source per input), 0.8mA maximum (sink per input); Customer Supply Current per Module: 380mA max.
Miscellaneous: Allen-Bradley 1771-IGD module location: Series A or B 1771A1B, A2B, A3B, A3B1, or A4B I/O chassis. Other locations include 1771AM1, and AM2 I/O chassis. TTL device must meet the output logic level specification of -0.2V dc to +0.8V dc (low), and 2.0V dc to 5.25V dc (high). The TTL module requires power from two sources: the I/O chassis backplane, and a +5V dc power supply that you provide for transmission of TTL signals.
