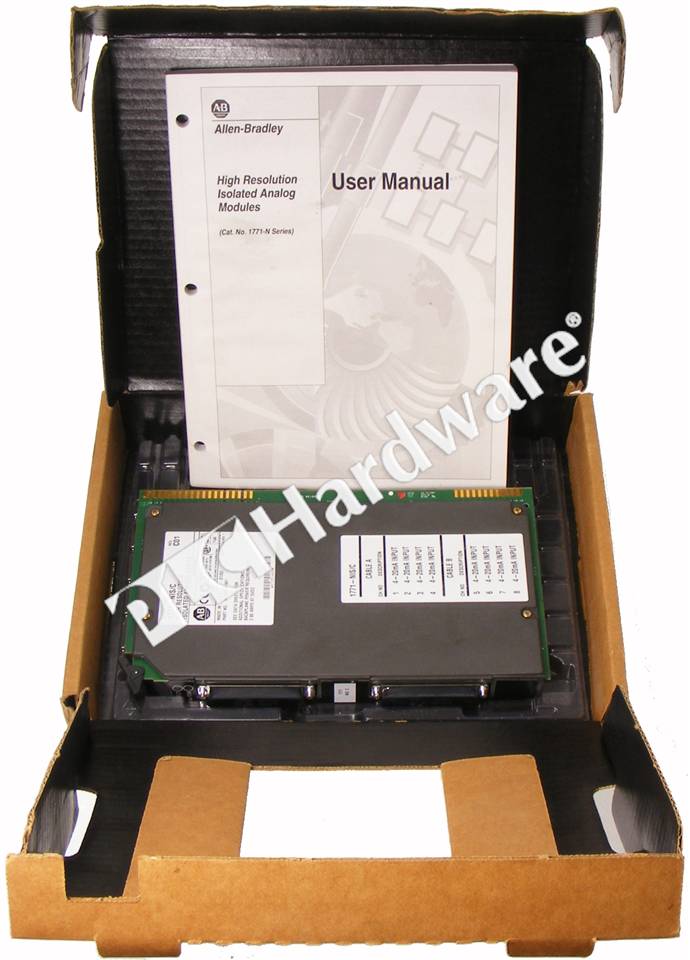

OverviewAllen-Bradley 1771-NIS PLC-5 8P Analog Current Input Module, C
Mfr. Part Number:

1771-NIS/C

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1771-NIS PLC-5 8P Analog Current Input Module, High Resolution, C
Full Description: Allen-Bradley 1771- NIS PLC-5 High Resolution Analog Input Module, 8 x Current 4-20mA Inputs, Isolated, supplies loop power, Series C
UPC / GTIN: 10612598122155
Status: Current Product
Inventory & Prices
Condition:

NSO (New Surplus Open)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $11,800.00
Your Price: $7,663.00
Quantity:


1771-NIS/C
Similar Parts Mfr Cond Description Retail Price Disc Qty
1771-NIS/B RA UPP Allen-Bradley 1771-NIS PLC-5 8P Analog Current Input Module, High Resolution, B $11,800.00 $917.00 -92% 1 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1771-NIS PLC-5 Analog Input Module, Input Type: Current; Number of Inputs: 8; Input Range: 0…21 mA; Input Resolution: 330 nA/bit, 16 bits (unipolar); Input Impendance: 300 Ohm (max); Update Time (per module), Max: 25ms; Accuracy with Calibration (including Non-linearity, Gain, and Offset): 0.025% of FS @ 25°C (typical), 0.05% of FS @ 25°C (max); Remote Termination Panel (RTP): 1771-RTP4; Backplane Current Load: 2.9A @ 5V.
Miscellaneous: Allen-Bradley 1771-NIS N-series High Resolution Analog Input Module is an intelligent block transfer module that interfaces analog signals with Allen-Bradley PLC-3/-5 family programmable controllers that have block transfer capability. The 1771-NIS module requires only a single slot in the I/O chassis, and doesn’t require an external power supply. Each 1771-NIS module requires two cable assemblies for connection to its RTP. The available cable assemblies are: 1771-NC6 (6 ft) and 1771-NC15 (15 ft).
