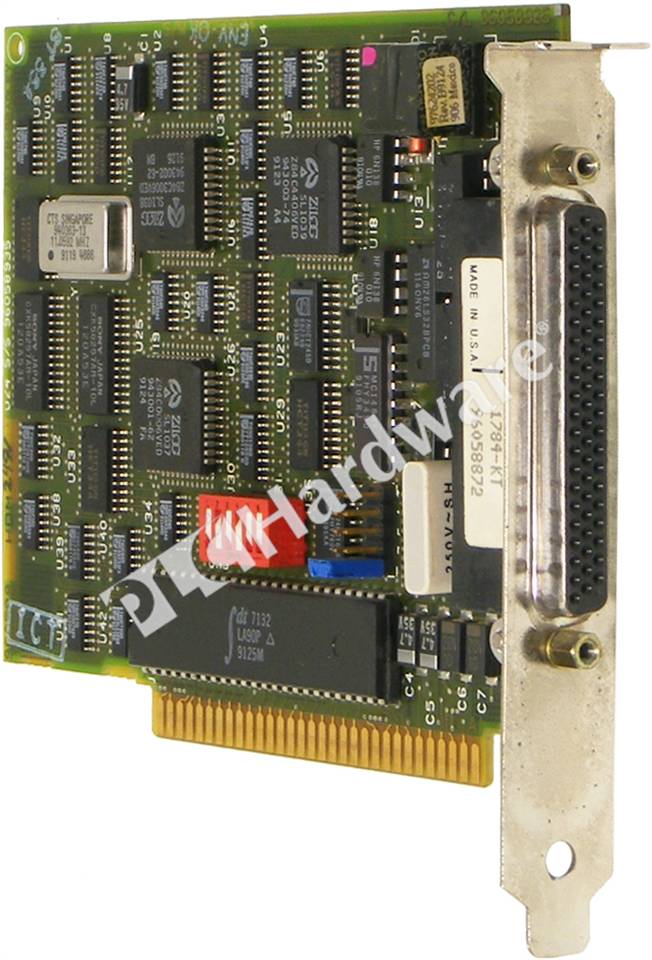

OverviewAllen-Bradley 1784-KT Data Highway Plus XT/AT Interface Module A
Mfr. Part Number:

1784-KT/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1784-KT Data Highway Plus XT/AT Interface Module ISA/EISA, Ser. A
Full Description: Allen-Bradley 1784-KT Data Highway Plus XT/AT Interface Module ISA/EISA, allows personal computers, workstations or terminals to communicate with Allen-Bradley processors and controllers, either through direct connections or over Data Highway Plus networks, Series A
UPC / GTIN: 10612598118882
Status: Current Product
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $1,765.00
Your Price: $67.00
Quantity:


1784-KT/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1784-KT/B RA UPP Allen-Bradley 1784-KT Data Highway Plus XT/AT Interface Module ISA/EISA, Ser. B $1,765.00 $97.00 -95% 12 buyit
1784-KTCS/B RA UPP Allen-Bradley 1784-KTCS ControlNet ISA/EISA Bus Interface Scanner Card, Series B $1,999.80 $1,106.00 -45% 1 buyit
1784-KTCX15/B RA NSO Allen-Bradley 1784-KTCX15 ControlNet ISA/EISA Bus Interface Card, 2-Port BNC, B $1,975.00 $897.00 -55% 1 buyit
1784-KTCX15/B RA NSS Allen-Bradley 1784-KTCX15 ControlNet ISA/EISA Bus Interface Card, 2-Port BNC, B $1,975.00 $897.00 -55% 1 buyit
1784-KTCX15/B RA UPP Allen-Bradley 1784-KTCX15 ControlNet ISA/EISA Bus Interface Card, 2-Port BNC, B $1,975.00 $105.00 -95% 3 buyit
1784-KTX/B RA NSO Allen-Bradley 1784-KTX Communication ISA Card DH+/DH-485/PLC-2/PLC-3 Ser B $3,280.00 $555.00 -83% 2 buyit
1784-KTX/B RA NSS Allen-Bradley 1784-KTX Communication ISA Card DH+/DH-485/PLC-2/PLC-3 Ser B $3,280.00 $916.00 -72% 1 buyit
1784-KTX/B RA UPP Allen-Bradley 1784-KTX Communication ISA Card DH+/DH-485/PLC-2/PLC-3 Ser B $3,280.00 $97.00 -97% 9 buyit
1784-KTXD/B RA UPP Allen-Bradley 1784-KTXD Communication Card, ISA/EISA, DH+/DH485/RIO, 2-Ch, Ser B $4,326.00 $97.00 -98% 2 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1784-KT Data Highway Plus XT/AT Interface Module ISA/EISA, Module Location: Any ISA 8-bit Card Slot; Baud Rate: Asynchronous (PLC-2 & PLC-3 CPUs) – 9.6/19.2 Kbps, Synchronous (Data Highway Plus) - 57.6 Kbps, PLC-2 & PLC-3 – 10 ft (3m), DH+ PLC-3 and PLC-5 – 10,000 ft (3,050m) @ 57.6 Kbps; Output Connector: 62-Pin D-shell; Outputs: PLC-2 Serial Interface, PLC-3 Serial Interface, DH+; Hardware Interrupts: IRQ3 (Com2), IRQ4, IRQ5, IRQ7; Power Requirements: +5VDC @ 0.4A, +/-12VDC @ 0.04A.
Miscellaneous: Allen-Bradley 1784-KT Communication Interface Module is an ISA half-size 8-bit card that can be inserted into any 8- or 16-bit ISA expansion slot. The 1784-KT provides the following features: Makes a personal computer an active node on DH+ networks; Increases application response time; Provides single cable connection to a PLC-2, PLC- 3, or PLC-5 controllers; Address selectable. The 1784-KT is supported by the following software: 6001-FIE, 6200, INTERCHANGE, Advisor PC, ControlView.
