OverviewAllen Bradley 1794-IE8K Analog Input Module, Conformally Coated
Mfr. Part Number:

1794-IE8K/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1794-IE8K FLEX I/O Analog Input Module, Conformal Coat, 8-Point, B
Full Description: Allen Bradley 1794-IE8K FLEX I/O Analog Input Module, Conformally Coated, 8 Single-Ended Inputs, 12 Bit, Signal Range: 4-20 mA, 0-20 mA, ±10V, 0-10V, Series B
Status: Current Product
Inventory & Prices
Condition:

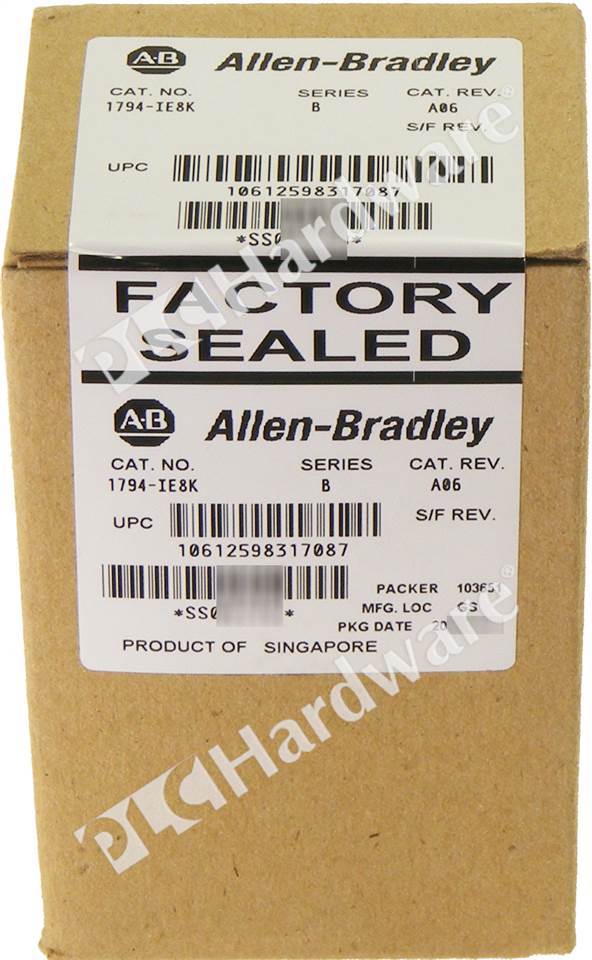

NFS (New Factory Sealed)

Warranty: 30 Days Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $1,053.00
Your Price: $800.00
Quantity:


1794-IE8K/B
Specs & Technical Data
Specifications: Allen-Bradley 1794-IE8K FLEX I/O Analog Current/Voltage Input Module, Number of Inputs: 8 Single-Ended, Non-isolated; Input Signal Range: 0-20mA, 4-20mA, ±10V, 0-10V; Input Resolution: 12 Bits - Unipolar, 11 Bits + Sign – Bipolar, 5.13 microA/Cnt (2.56 mV/Cnt) – Unipolar, 5.13 mV/Cnt - Bipolar; Accuracy: 0.20% of Full Scale @ 25°C Voltage/Current; Step Response to 63% of FS: Current - 18.2ms, Voltage - 9.4ms; Power Dissipation, Max.: 3W @ 31.2V DC; Terminal Base: 1794-TB3, -TB2, -TB3S, -TB3T, -TB3TS.
Miscellaneous: Allen-Bradley 1794-IE8K module accepts up to 8 analog inputs. The inputs are non-isolated and will accept current or voltage in either of the following ranges: 4-20mA, 0-20mA, ±10V, 0-10V. All features of the 1794-IE8K analog input module are independently configurable. The 1794-IE8K FLEX I/O analog input modules are block transfer modules that interface analog signals with any Allen-Bradley programmable controllers that have block transfer capability. The 1794-TB3 TB is recommended for 1794-IE8K module.
