Rockwell Automation > Motion > Servo Drives > 2094: LIM > 2094-BL75S/B

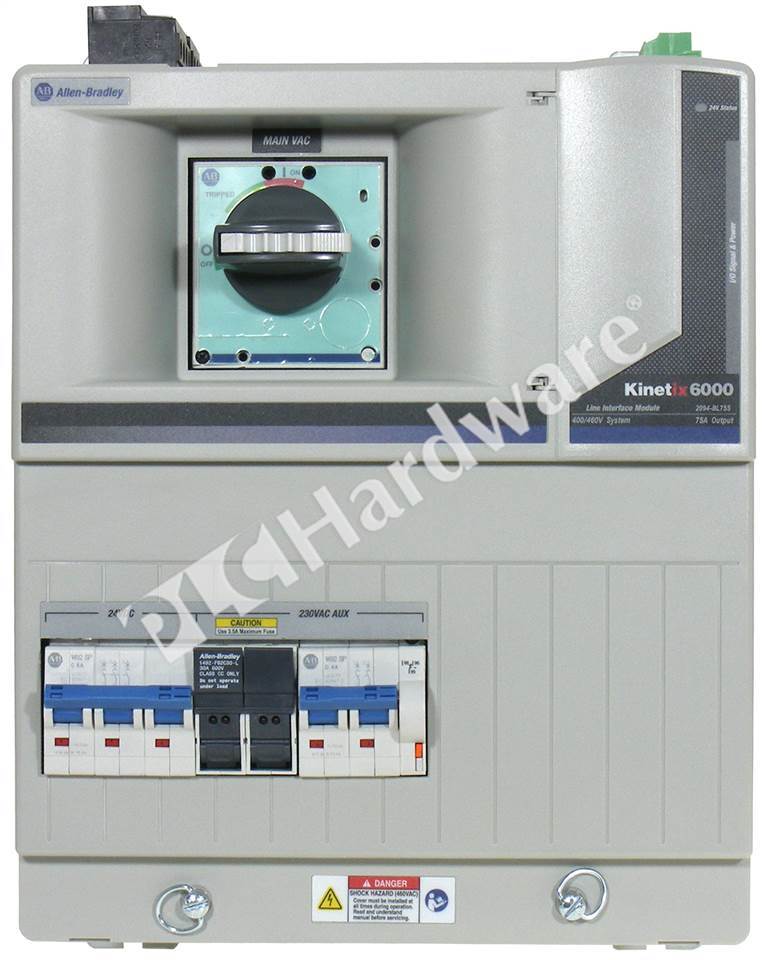

OverviewAllen-Bradley 2094-BL75S Line Interface Module 460VAC 75A, Ser B
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 2094-BL75S Line Interface Module, 460V AC 3-Ph In, 75A Out, Ser. B
Full Description: Allen-Bradley 2094-BL75S Line Interface Module, 460V AC 3-Phase Input Power, 75A Main AC Output Current, 460V AC 3-Phase Output Voltage, 230V AC Auxiliary Power Output, 20A 24V DC Power Output Current Capacity, with Branch Circuit Protection and Disconnect, DC Line Filter (installed), Auxiliary/Control Power Line Filter (installed), Series B
UPC / GTIN: 00820919355622
Status: Current Product
Inventory & Prices

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
0 in stock 1 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $3,770.00
Your Price: $1,429.00
Similar Parts Mfr Cond Description Retail Price Disc Qty
2094-BL75S RA UPP Allen-Bradley 2094-BL75S Line Interface Module, 460V AC 3-Ph In, 75A Out $3,770.00 $1,429.00 -62% 1 buyit
Specs & Technical Data
Specifications: Allen-Bradley 2094-BL75S Line Interface Module, Input Voltage, Nom: 460V AC; Input Voltage Range: 380-520V AC Rms 3-Phase, 47-63 Hz; Main AC Output Current (Rms): 75 A; Control AC Output Current (Rms): 3 A; Auxiliary AC Output Voltage (Rms): 190-260V AC 1-Phase, 230V (Nom.); I/O Load Capacity (24V DC): 20 A; Contactor Control Voltage: 21.6-26.4V DC; Contactor Control Current: 9-12 mA; Contactor Pickup Time: 18.5/30 ms (Min/Max); Contactor Dropout Time: 10.0/60.0 ms (Min/Max); Power Dissipation: 42.9 W.
Miscellaneous: Allen-Bradley 2094-BL75S Line Interface Module provides a compact, cost-effective way to deal with the components required for a drive application. The 2094-BL75S LIM can be used with a wide variety of servo and AC drives to greatly reduce the time and cost needed to provide the support components that are commonly needed. The 2094-BL75S and 2094-XL75S-C2 LIM modules can supply input power for up to eight axes. The 2094-BL75S LIM is not compatible with the 2094 mounting brackets.
