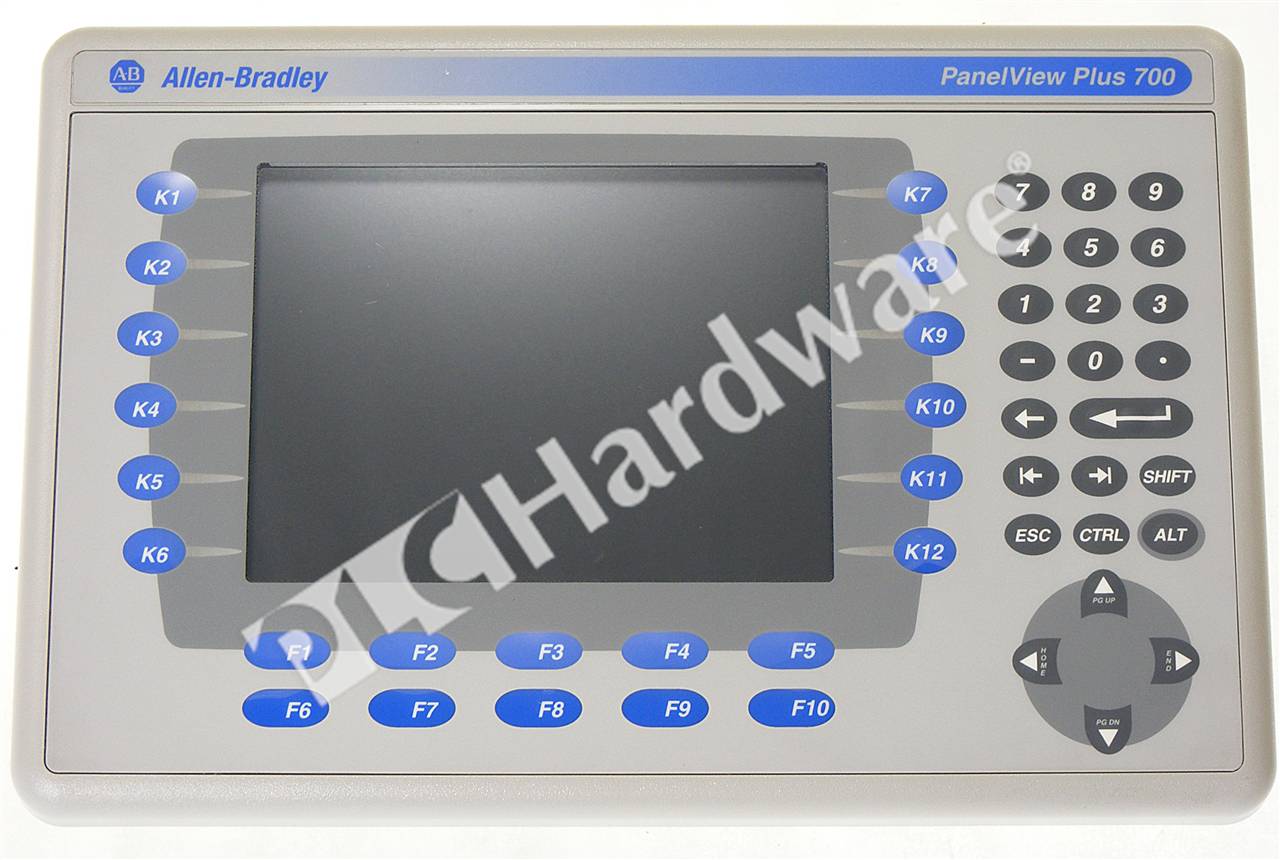

OverviewAllen-Bradley 2711P-K7C4D1 PanelView Plus 700 Color, DC, Ser. A
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 2711P-K7C4D1 PanelView Plus 700 Keypad/Enet/RS232 DC 64MB, Ser. A
Full Description: Allen-Bradley 2711P-K7C4D1 PanelView Plus 700 Color Terminal 6.5 inch, Keypad, Standard Communications (Ethernet & RS-232), DC power, 64 MB Flash, 64 MB RAM, Series A
Status: Discontinued by manufacturer
Inventory & Prices

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
1 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $4,460.00
Your Price: $600.00
Specs & Technical Data
Specifications: Allen-Bradley 2711P-K7C4D1 Terminal, Display: Color Active Matrix TFT Display 6.5 inch; Resolution: 640x480, 18-bit; Software: FactoryTalk View Studio for Machine Edition or Enterprise Series; Memory: 64MB RAM, 64MB Flash; Keypad: Stainless Steel Domed Membrane; Function Keys: 22; Communication: Ethernet, RS-232, 2 USB; Input Voltage: 18-32V DC; Power Consumption: 70W, (2.9A @ 24V DC); Operating Temperature: 0-55 °C (32-131 °F); Weight: 1.9kg (4.2lb); Dimensions (HxWxD): 193x290x55 mm, 7.58x11.40x2.18 in.
Miscellaneous: Allen-Bradley 2711P-K7C4D1 terminal has a lithium battery that is used by the real-time clock and static RAM. It is not used for application backup or retention. The clock module has a life expectancy of two years without power. The 2711P-K7C4D1 terminal has two USB ports. The 2711P-K7C4D1 terminal supports standard USB keyboard and mouse devices (HID devices) with native device drivers. It also supports some USB printers that have Printer Control Language (PCL) capabilities.
