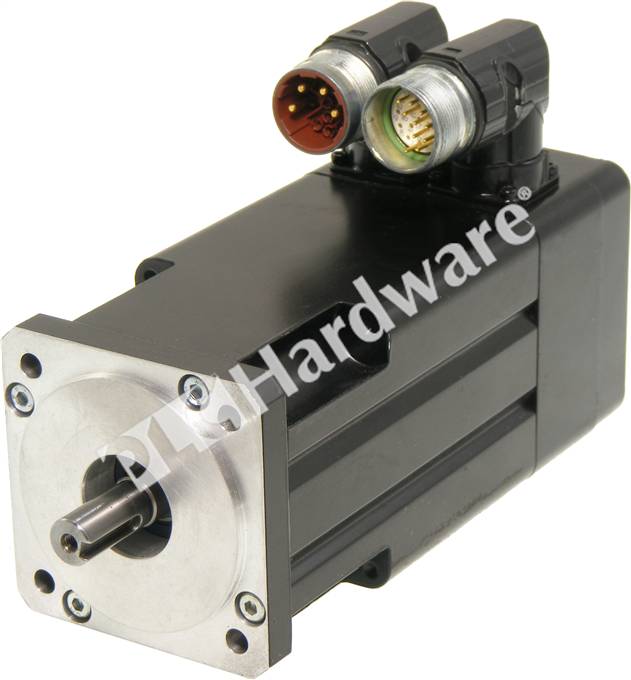

OverviewAllen-Bradley MPL-B230P-VJ42AA Servo Motor 460V, 0.86kW, 5000RPM
Mfr. Part Number:

MPL-B230P-VJ42AA/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley MPL-B230P-VJ42AA Servo Motor 460V 0.86kW, 5000RPM, 2.1Nm, Multi, A
Full Description: Allen-Bradley MPL-B230P-VJ42AA Brushless Servo Motor, 460V AC, 0.86kW, 5000RPM, 2.1Nm, 2.6A, IP66 with Shaft Seal, Multi-turn High-resolution Encoder - Absolute feedback, Keyed Shaft Extension, Circular DIN Connector, Right Angle, 180° Rotatable Threaded, No Brake, IEC Metric, Free Mounting Holes Type FF, Series A
Status: Discontinued by manufacturer
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 3 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $1,162.00
Your Price: $1,024.00
Quantity:


MPL-B230P-VJ42AA/A
Specs & Technical Data
Specifications: Allen-Bradley MPL-B230P-VJ42AA Rated Speed: 5000RPM; Rated Output: 0.86kW; Rotor Inertia: 0.000063 kg-m2; Continuous Stall Torque: 2.10Nm; Peak Stall Torque: 8.2Nm; Continuous Stall Current: 2.60A; Peak Stall Current: 11.3A.
Miscellaneous: Allen-Bradley MPL-B230P-VJ42AA Low Inertia Servo Motors with features specifically designed to meet the unique needs of many food and beverage packaging and handling applications. These motors address the challenges of food environments by incorporating improved sealing techniques and non-corrosive food grade fasteners and coatings.
