OverviewAllen-Bradley MPL-B540K-SJ72AA Servo Motor, 460V AC, 4000 RPM, A
Mfr. Part Number:

MPL-B540K-SJ72AA/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley MPL-B540K-SJ72AA Servo Motor, 460VAC, 4000 RPM, 5.4 kW, 19.4 Nm, A

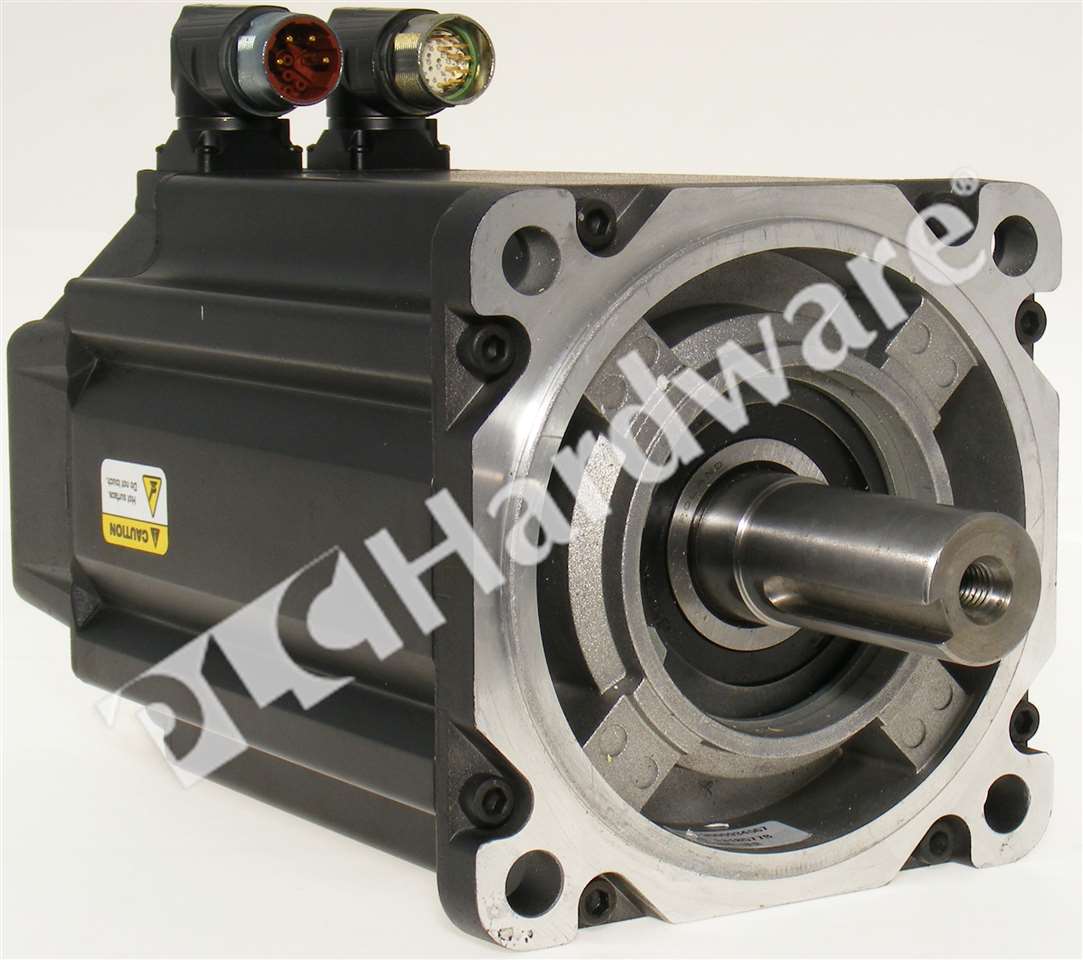

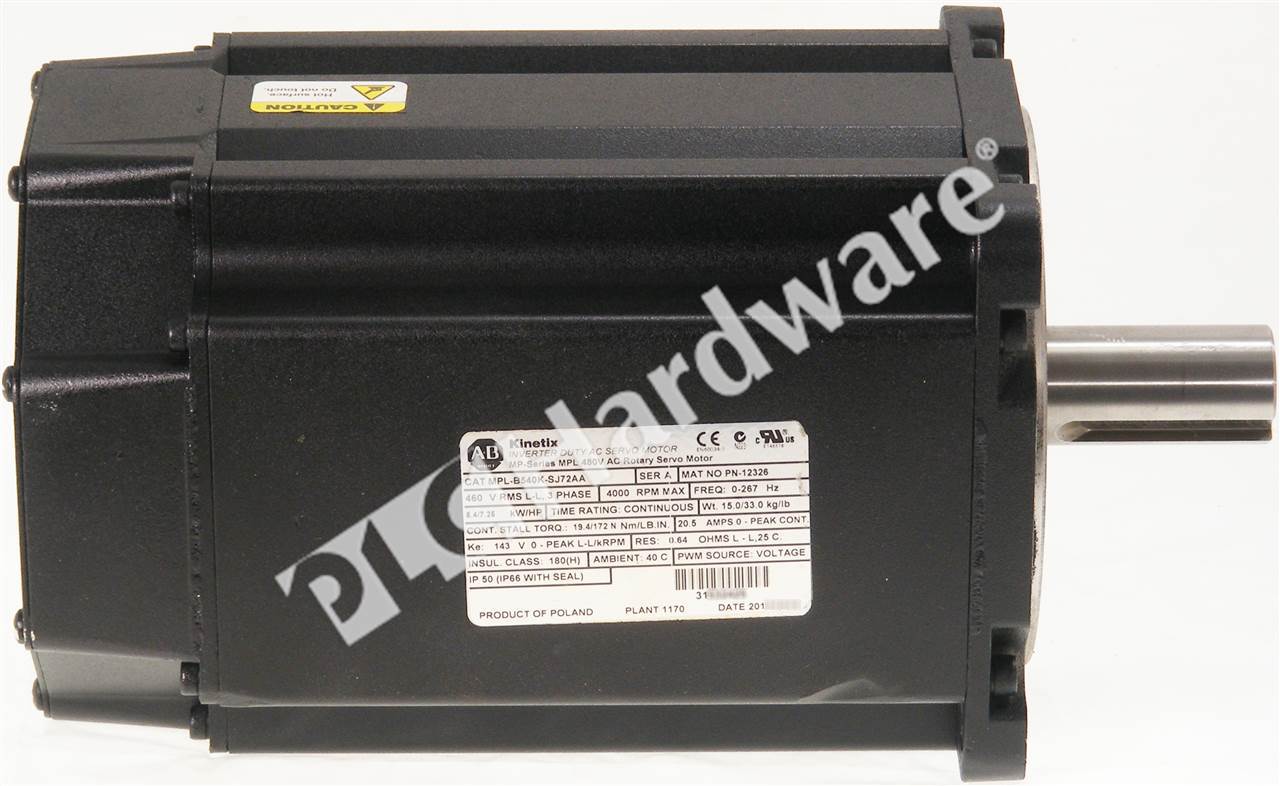

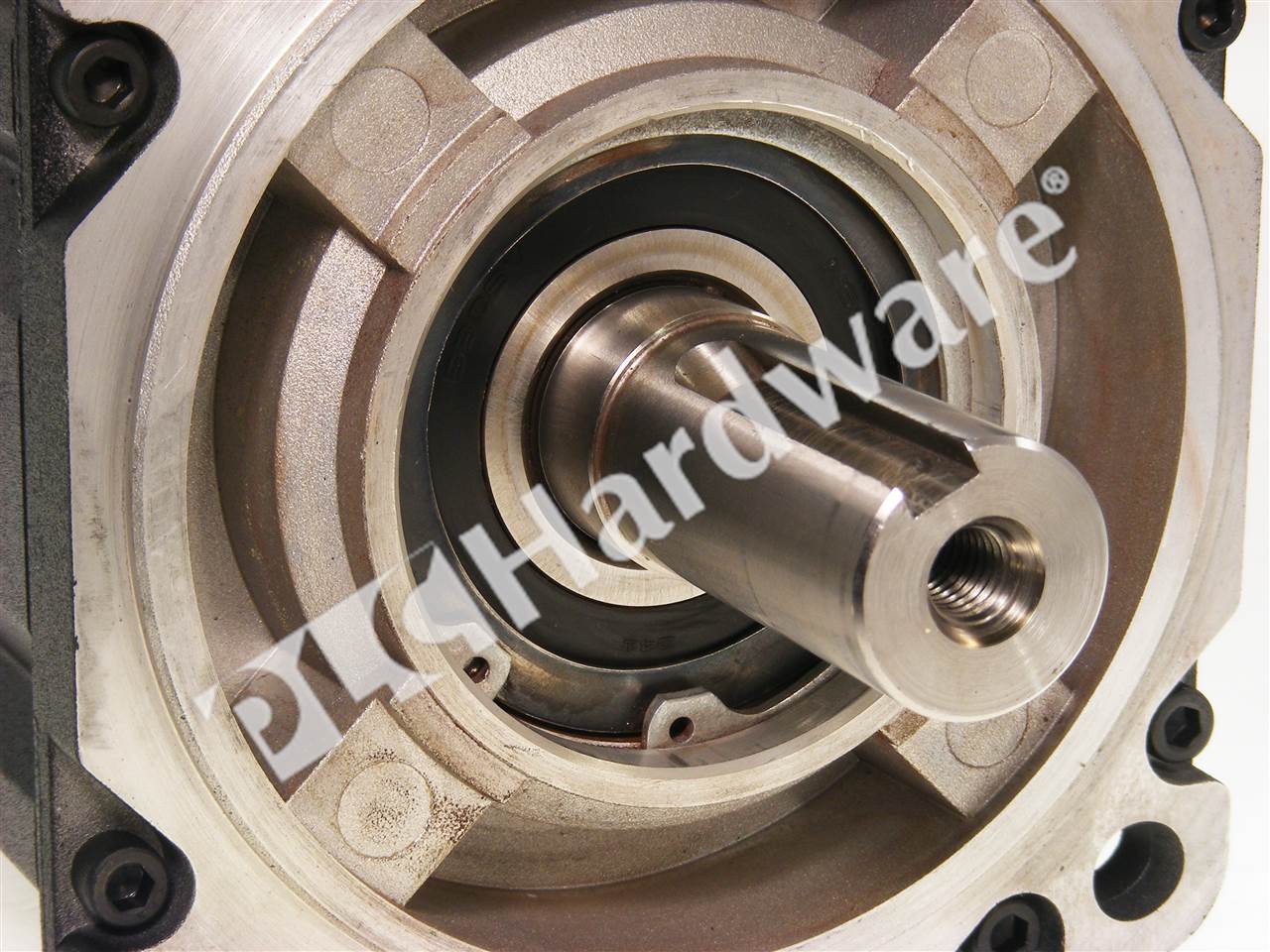

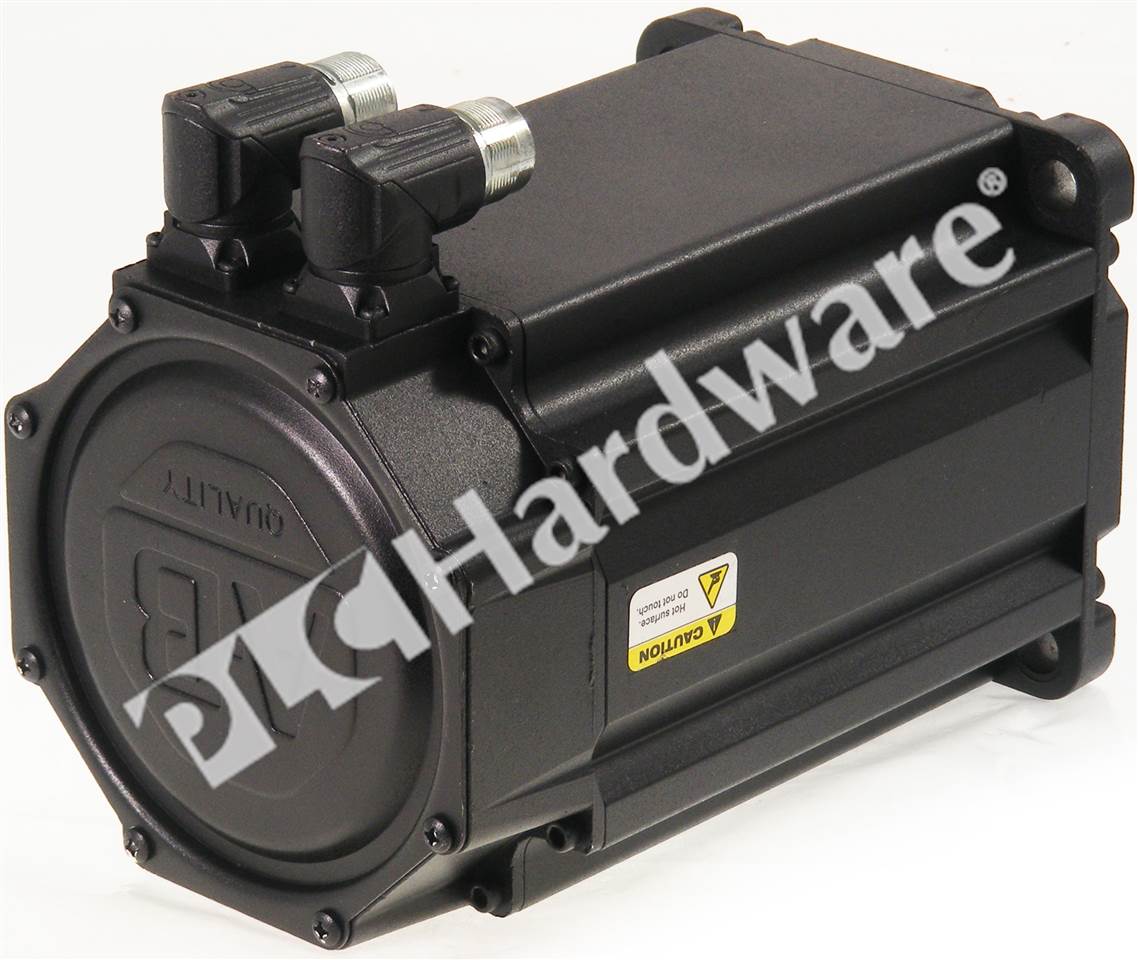

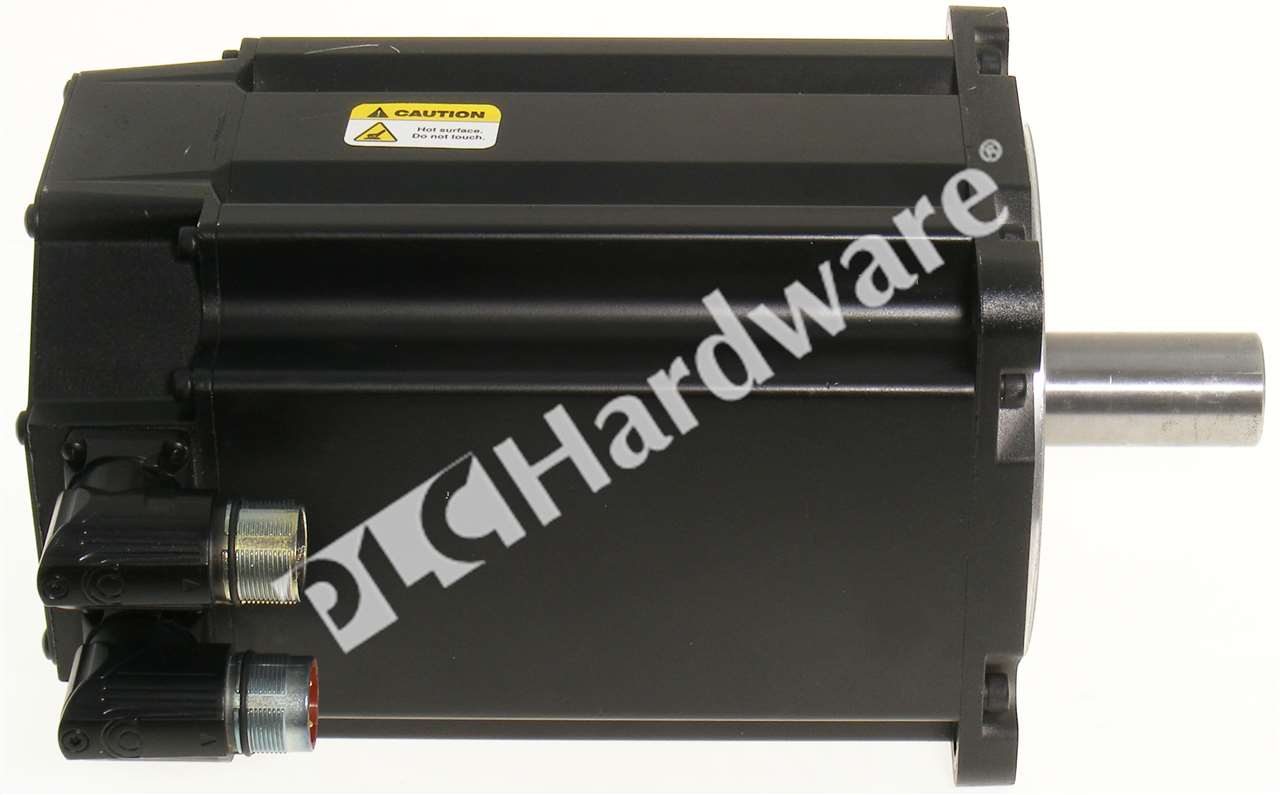

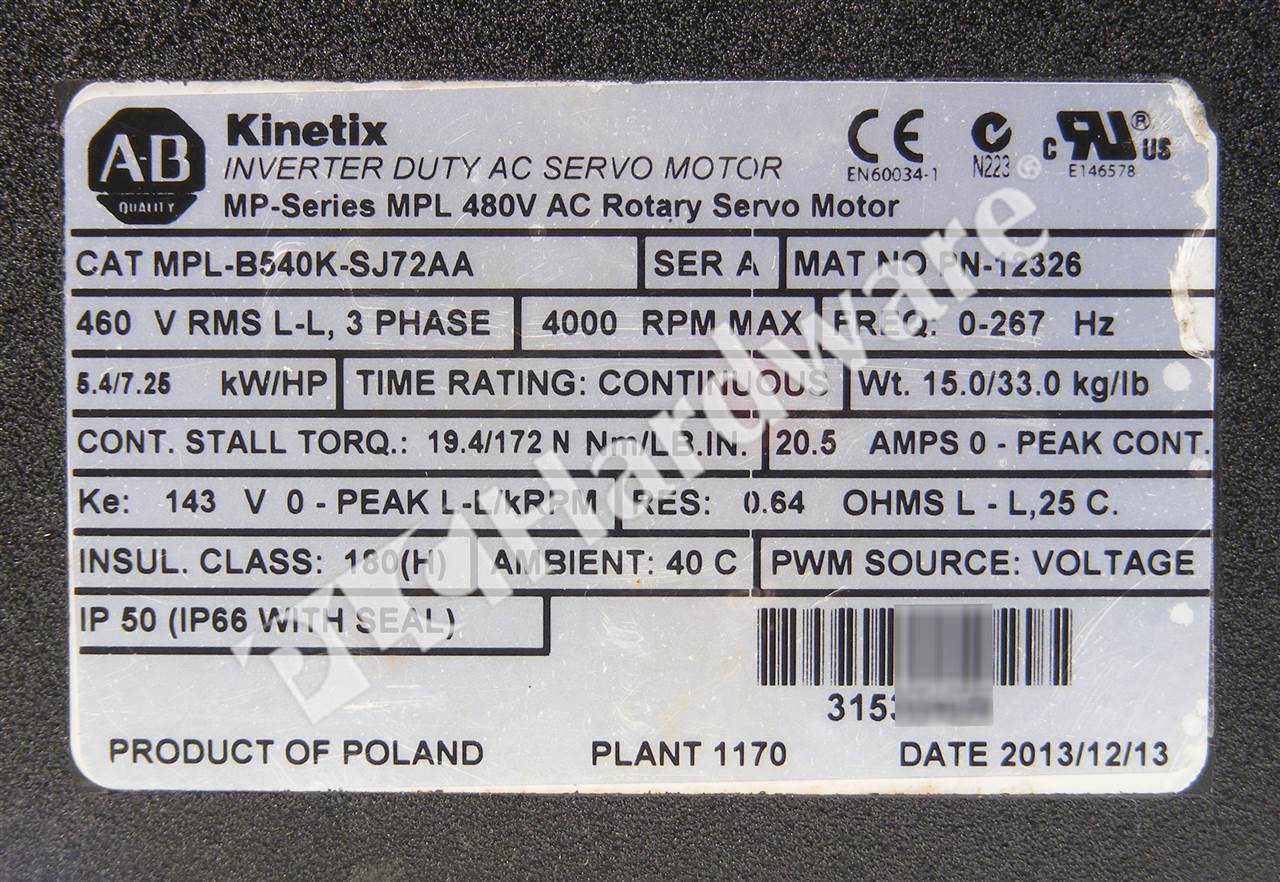

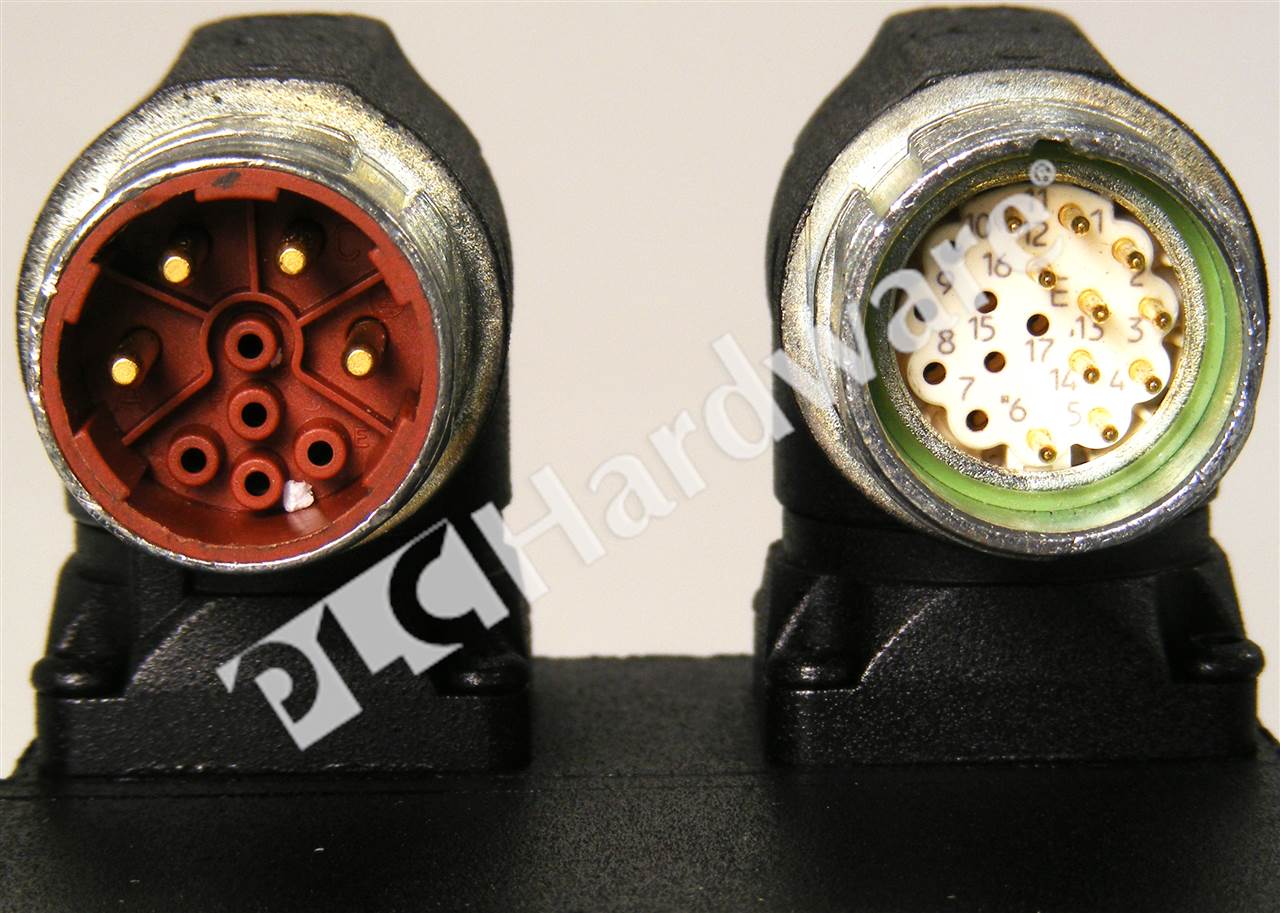

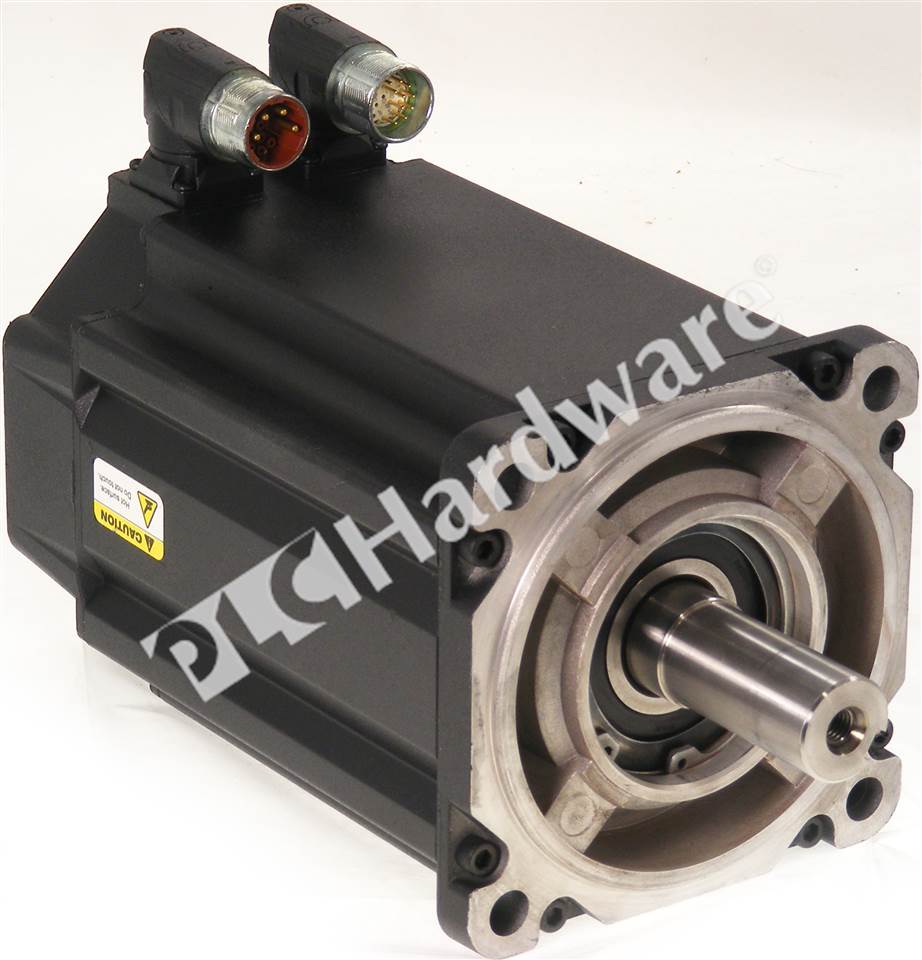

Full Description: Allen-Bradley MPL-B540K-SJ72AA MP-Series Low Inertia Small Frame Brushless Servo Motor, 460V AC Voltage Rating, 165 mm (6.50 in.) Frame Size, 101.6 mm (4.0 in.) Magnet Stack, 4000 RPM Rated Speed, 5.4 kW Output, Continuous Stall Torque, Nm (lb-in.): 19.4 (172); Continuous Stall Current, Amp (0-peak): 20.5; Single-turn 1024 sin/cos Absolute Encoder (Hiperface protocol), Shaft Key/No Shaft Seal, Connectors: Circular (SpeedTec) DIN Connector, Right Angle, 180° Rotatable, No Brake, Mounting Flange: IEC Metric, Standard Protection, Series A
UPC / GTIN: 00820919984143
Status: Current Product
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
2 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $2,770.00
Your Price: $1,454.00
Quantity:


MPL-B540K-SJ72AA/A
