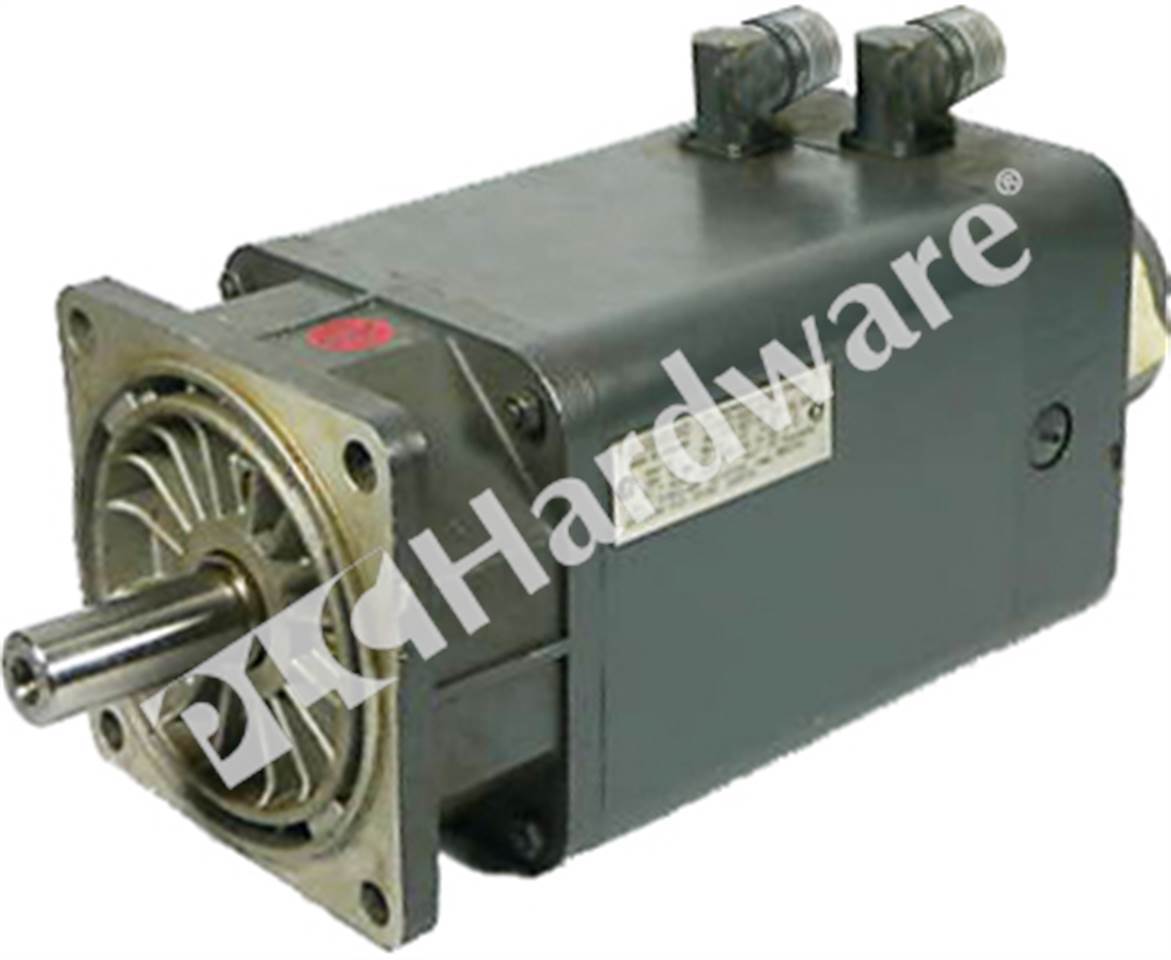

OverviewSiemens 1FT5072-0AC01-2-Z Synchronous Servomotor, 11 Nm 2000 RPM
Mfr. Part Number:

1FT5072-0AC01-2-Z

Manufacturer: Siemens
Description: Siemens 1FT5072-0AC01-2-Z 1FT5 AC Synchronous Servomotor, 11 Nm, 2000 RPM
Full Description: Siemens 1FT5 072-0AC01-2-Z Permanent-magnet Synchronous AC Servomotor, 1FT5 Series, Standstill Torque (M0) - 10 Nm, Standstill Torque (Mn) - 11 Nm, Rated Speed - 2000 RPM, Cooling - Natural Air Cooling (non-ventilated), DC Link Voltage - 210V DC, Max Current 14.5 Amps, IM B5 (V1, V3), Shaft Position Encoder, Degree of Protection - IP 64
Status: Discontinued by manufacturer
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 8 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $1,970.00
Your Price: $1,635.00
Quantity:


1FT5072-0AC01-2-Z
Specs & Technical Data
Specifications: Siemens 1FT5072-0AC01-2-Z Permanent-magnet Synchronous AC Servomotor, Rated Speed: 2000 RPM; Standstill Torque (M0): 10 Nm, Standstill Torque (Mn): 11 Nm; Construction Type: IM B5 (V1, V3).
Miscellaneous: The 1FT5 series has been developed for use on different types of machine tools. In conjunction with the SIMODRIVE 611 analog drive converter system, the motors are admirably suited for: Feed drives for lathes and milling machines; Machining centers; Grinding and special–purpose machines; Robots and handling equipment; Woodworking. The 1FT5 series can be directly mounted onto feed spindles and onto gearboxes with toothed wheels or toothed belts.
