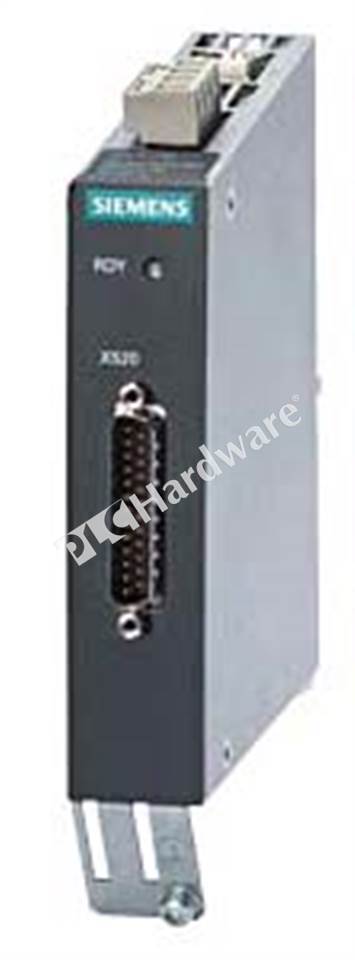

OverviewSiemens 6SL3055-0AA00-5BA2 SINAMICS S120 SMC20 Sensor Module
Mfr. Part Number:

6SL3055-0AA00-5BA2

Manufacturer: Siemens
Description: Siemens 6SL3055-0AA00-5BA2 SINAMICS S120 SMC20 Sensor Module for Encoders, 24VDC
Full Description: Siemens 6SL3055-0AA00-5BA2 SINAMICS S120 SMC20 Sensor Module, 1 x Encoder System Interface (X520) for Incremental Encoders with SIN/COS (1Vpp), or Absolute Encoders with EnDat 2.1/SSI, 1 x DRIVE-CLiQ Interface for Control Unit, without DRIVE-CLiQ Cable, 30 mm Width, 24V DC Power
UPC / GTIN: 4025515014850
Status: Current Product
Inventory & Prices
Condition:

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $376.00
Your Price: $319.00
Quantity:


6SL3055-0AA00-5BA2
Similar Parts Mfr Cond Description Retail Price Disc Qty
6SL3055-0AA00-5BA2 Siemens UPP Siemens 6SL3055-0AA00-5BA2 SINAMICS S120 SMC20 Sensor Module for Encoders, 24VDC $376.00 $298.00 -21% 1 buyit
Specs & Technical Data
Specifications: Siemens 6SL3055-0AA00-5BA2 SINAMICS S120 SMC20 Sensor Module, Supply Voltage, Nom: 24V DC; Supply Voltage, Range: 20.4-28.8V DC; Current Consumption, Max: 0.35A; Maximum Current via Jumper in Connector: 20A; Number of Interfaces: 2 (DRIVE-CLiQ, Encoder System Interface); Supported Encoders: Incremental Encoders with SIN/COS (1Vpp), Absolute Encoders with EnDat 2.1/SSI; Encoder Frequency, Max: 500kHz; SSI Baud Rate: 100kHz; Degree of Protection: IP20 or IPXXB; Width: 30mm, Weight: 0.45kg.
Miscellaneous: Siemens 6SL3055-0AA00-5BA2 Sensor Module Cabinet-Mounted SMC20 evaluates encoder signals and transmits the speed, actual position value, rotor position and, if necessary, the motor temperature and reference point via DRIVE-CLiQ to the Control Unit. The 6SL3055-0AA00-5BA2 SMC20 is used to evaluate encoder signals from incremental encoders with SIN/COS (1 Vpp) or absolute encoders with EnDat 2.1 or SSI.
