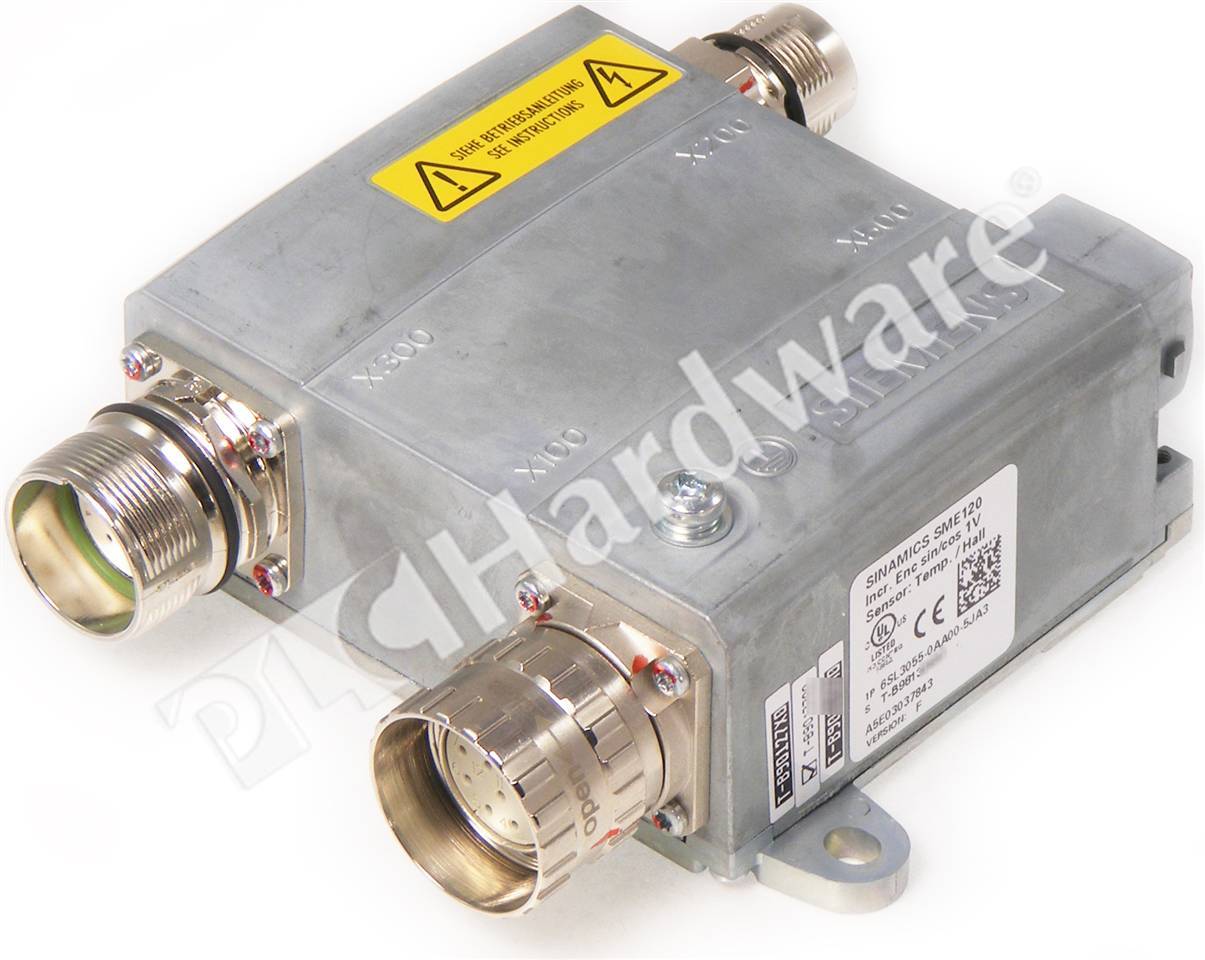

OverviewSiemens 6SL3055-0AA00-5JA3 SINAMICS S120 SME120 Sensor Module
Mfr. Part Number:

6SL3055-0AA00-5JA3

Manufacturer: Siemens
Description: Siemens 6SL3055-0AA00-5JA3 SINAMICS S120 SME120 Sensor Module for Encoder, 24VDC
Full Description: Siemens 6SL3055-0AA00-5JA3 SINAMICS S120 SME120 Sensor Module, 1 x Encoder System Interface (X100) for Incremental Encoders with SIN/COS (1Vpp), 1 x Temperature Sensor Input (X200), 1 x Hall Sensor Input (X300), 1 x DRIVE-CLiQ Interface (X500) for Control Unit, without DRIVE-CLiQ Cable, 24V DC Power
Status: Current Product
Inventory & Prices
Condition:

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $674.00
Your Price: $674.00
Quantity:


6SL3055-0AA00-5JA3
Similar Parts Mfr Cond Description Retail Price Disc Qty
6SL3055-0AA00-5JA3 Siemens NSO Siemens 6SL3055-0AA00-5JA3 SINAMICS S120 SME120 Sensor Module for Encoder, 24VDC $674.00 $510.00 -24% 5 buyit
6SL3055-0AA00-5JA3 Siemens UPP Siemens 6SL3055-0AA00-5JA3 SINAMICS S120 SME120 Sensor Module for Encoder, 24VDC $674.00 $228.00 -66% 3 buyit
Specs & Technical Data
Specifications: Siemens 6SL3055-0AA00-5JA3 SINAMICS S120 SME120 Sensor Module, Supply Voltage, Nom: 24V DC; Supply Voltage, Range: 20.4-28.8V DC; Current Consumption, Max: 0.3A; Number of Interfaces: 4 (DRIVE-CLiQ, Encoder System Interface, Temperature Sensor Input, Hall Sensor Input); Supported Encoders: Incremental Encoders with SIN/COS (1Vpp), Encoder Frequency, Max: 500kHz; Degree of Protection: IP67; Weight: 0.7kg.
Miscellaneous: Direct encoder systems outside the cabinet can be connected to the Sensor Module External SME120. The SME120 evaluates these encoder systems and converts the calculated values to DRIVE-CLiQ. The components are always used when the temperature signals of the motors do not have protective separation or where this separation is not possible for certain reasons. SME120 is mainly used in linear motor applications. A Hall sensor box can be connected to determine the commutation position of a linear motor.
