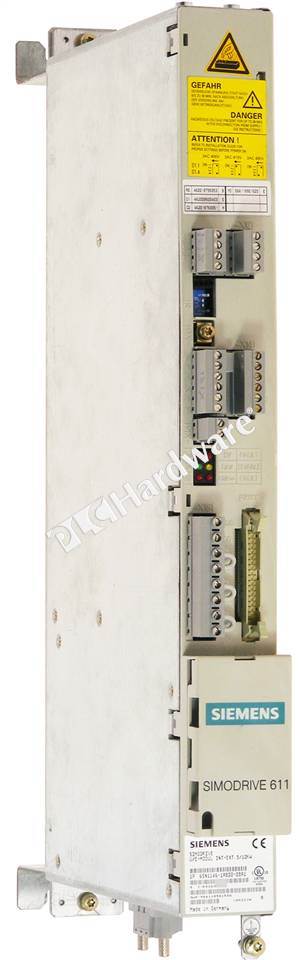

OverviewSiemens 6SN1146-1AB00-0BA1 SIMODRIVE 611 Infeed Module, 5/10 kW
Mfr. Part Number:

6SN1146-1AB00-0BA1

Manufacturer: Siemens
Description: Siemens 6SN1146-1AB00-0BA1 SIMODRIVE 611 UI Infeed Module, 5/10 kW, Unregulated
Full Description: Siemens 6SN1 146-1AB00-0BA1 SIMODRIVE 611-A/611-D Infeed Module (UI Module), Open-loop Control, 5/10 kW, Unregulated, with Internal/External Cooling
UPC / GTIN: 4025515019633
Status: Discontinued by manufacturer
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
4 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $3,393.00
Your Price: $579.00
Quantity:


6SN1146-1AB00-0BA1
Similar Parts Mfr Cond Description Retail Price Disc Qty
6SN1146-1AB00-0BA1 Siemens NSO Siemens 6SN1146-1AB00-0BA1 SIMODRIVE 611 UI Infeed Module, 5/10 kW, Unregulated $3,393.00 $1,279.00 -62% 6 buyit
6SN1146-1AB00-0BA1 Siemens NSS Siemens 6SN1146-1AB00-0BA1 SIMODRIVE 611 UI Infeed Module, 5/10 kW, Unregulated $3,393.00 $1,154.00 -66% 5 buyit
Specs & Technical Data
Specifications: Siemens 6SN1146-1AB00-0BA1 SIMODRIVE 611 Open-Loop Control Infeed Module, Module Type: UE/UI (Unregulated Infeed Module with External and Internal Cooling); Function Status: 1; Heat Dissipation: Internal/External; Cooling Method: Self-cooling; Rated Output: 5 kW (Nom.), 6.5 kW (S3-60%), 10 kW (Peak); Rated Current In: 12.5 A; Rated Current Input Undervoltage/Output Peak: 14 A / 25 A; Input: 400-480V AC; Output: 490-680V; Power Frequency: 50 Hz; Efficiency Eta: 0.985; Infeed/Type: Open-loop; Weight: 6.5 kg.
Miscellaneous: The infeed modules are used to connect the drive group to the line supply. The infeed/regenerative feedback module (I/R module) and the module for the unregulated infeed (UI module) are used to input power into the DC link. The I/R, UI, and the monitoring module also provide the electronics power supply for the connected modules. The infeed modules do not have any comprehensive overload protection.
