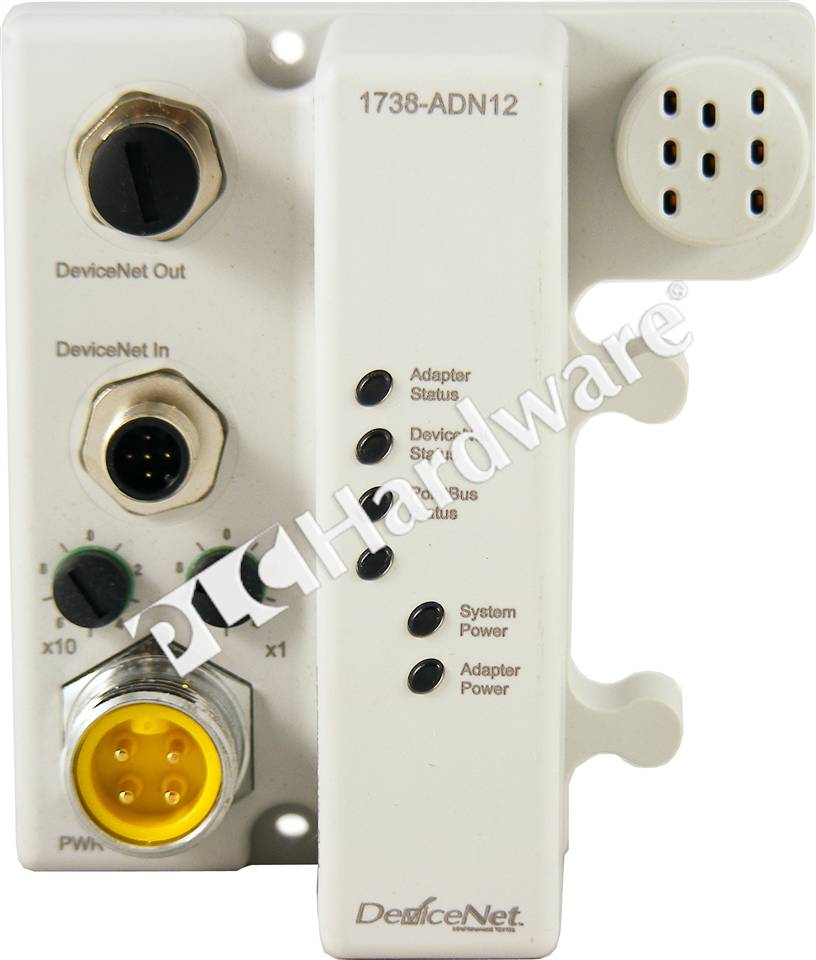

OverviewAllen-Bradley 1738-ADN12 ArmorPoint DeviceNet Adapter M12, Ser A
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1738-ADN12 ArmorPoint DeviceNet Adapter w/M12 Disconnect, Ser. A
Full Description: Allen-Bradley 1738-ADN12 ArmorPoint DeviceNet Communication Adapter Module Drop or Pass-through with male and female M12 connectors, Series A
UPC / GTIN: 10612598303677
Status: Current Product
Inventory & Prices

UPP (Used in PLCH Packaging)

Warranty: One Year PLCH Replacement Warranty
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $382.00
Your Price: $80.00
Specs & Technical Data
Specifications: A total of 63 ArmorPoint I/O modules can be assembled on a single DeviceNet node; Termination Type: DC micro (M12) Quick-Disconnect terminations, Mini Connector - Drop, Mini Connector - Pass-through; Max Number of I/O Points: 252; Input Voltage Range: 10-28.8V DC; Field Side Power Requirements: 400 mA @ 24V DC (+20% = 28.8V DC); Inrush Current: 6A for 10ms; Power Consumption at 24V: 8.0W; Max. Power Dissipation: 2.8W @ 28.8V.
Miscellaneous: The Allen-Bradley 1738-ADN12 ArmorPoint DeviceNet adapters ships with the adapter and a terminating base to be used with the last I/O module on the backplane. The sealed IP67 housing of the adapter requires no enclosure. An ArmorPoint I/O communication interface module provides the interface between a network and the ArmorPoint I/O backplane. A terminating base, used with the last I/O module, ships with the adapter. An I/O adapter supports up to a maximum of 63 I/O modules.
