OverviewAllen-Bradley 1746-INT4 Isolated Thermocouple/Millivolt Input, B
Mfr. Part Number:

1746-INT4/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1746-INT4 SLC 500 Isolated Thermocouple/Millivolt Analog Input, B
Full Description: Allen-Bradley 1746-INT4 SLC 500 Isolated Thermocouple / Millivolt Analog Input Module, Series B
UPC / GTIN: 10612598169693
Status: Current Product
Inventory & Prices
Condition:

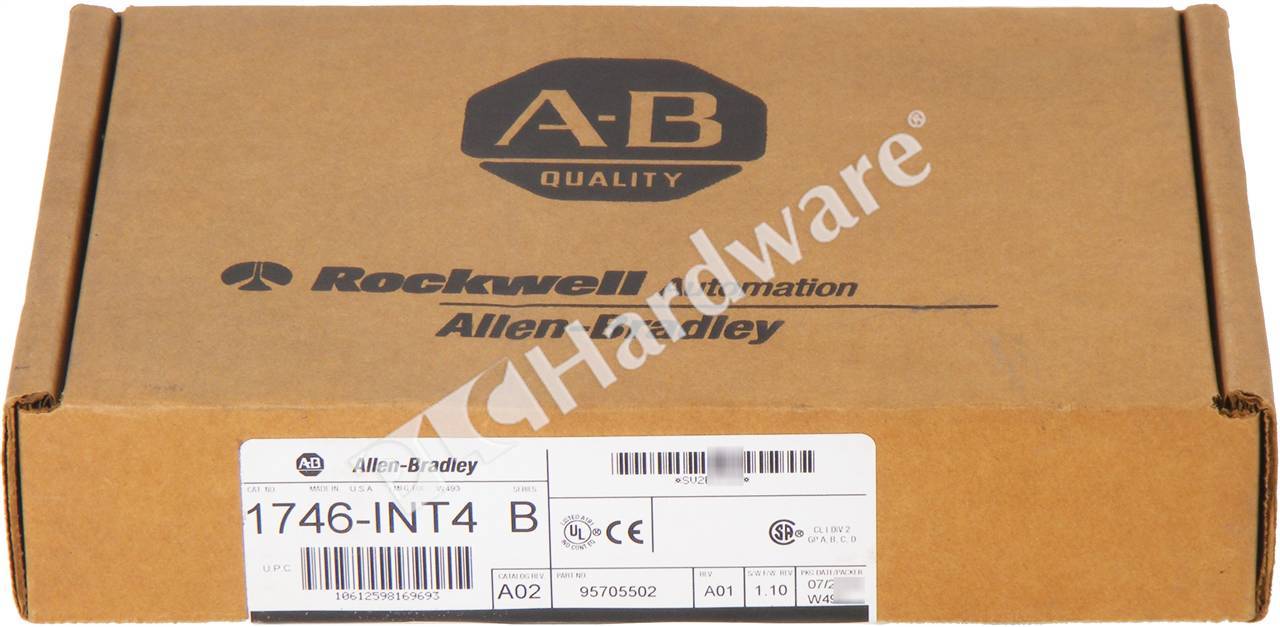

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $2,900.00
Your Price: $1,069.00
Quantity:


1746-INT4/B
Similar Parts Mfr Cond Description Retail Price Disc Qty
1746-INT4/B RA UPP Allen-Bradley 1746-INT4 SLC 500 Isolated Thermocouple/Millivolt Analog Input, B $2,900.00 $590.00 -80% 1 buyit
Specs & Technical Data
Specifications: 4 Inputs plus a CJC sensor; Thermocouple Types: J,K,T,E,R,S,B,N,C,D, Millivolt Input Ranges: ±50mV; Low pass digital filter corner frequency of 8Hz; Input Step Response (95% of final value): 600ms at 8Hz; Temperature Units: °C or °F; Data Formats: Raw/Proportional, Engineering Units, Engineering Units x 10, Scaled-for-PID; Backplane Current: 110mA @ 5V, 85mA @ 24V. Calibrate via ladder program. Isolation: 1000V DC transient or 150V AC continuous channel-to-channel or channel-to-backplane.
Miscellaneous: 1746-INT4 stores digitally-converted thermocouple and/or millivolt analog data in its image table for retrieval by all fixed & modular SLC 500 processors. Supports connections from any combination of up to four thermocouple and/or mV analog sensors. Provides fully-integrated cold-junction compensation (CJC) to retain thermocouple input signal accuracy, a choice of input filter frequencies, fault diagnostics & status LEDs. Block transfers are required in a remote I/O configuration, using a 1747-ASB module.
