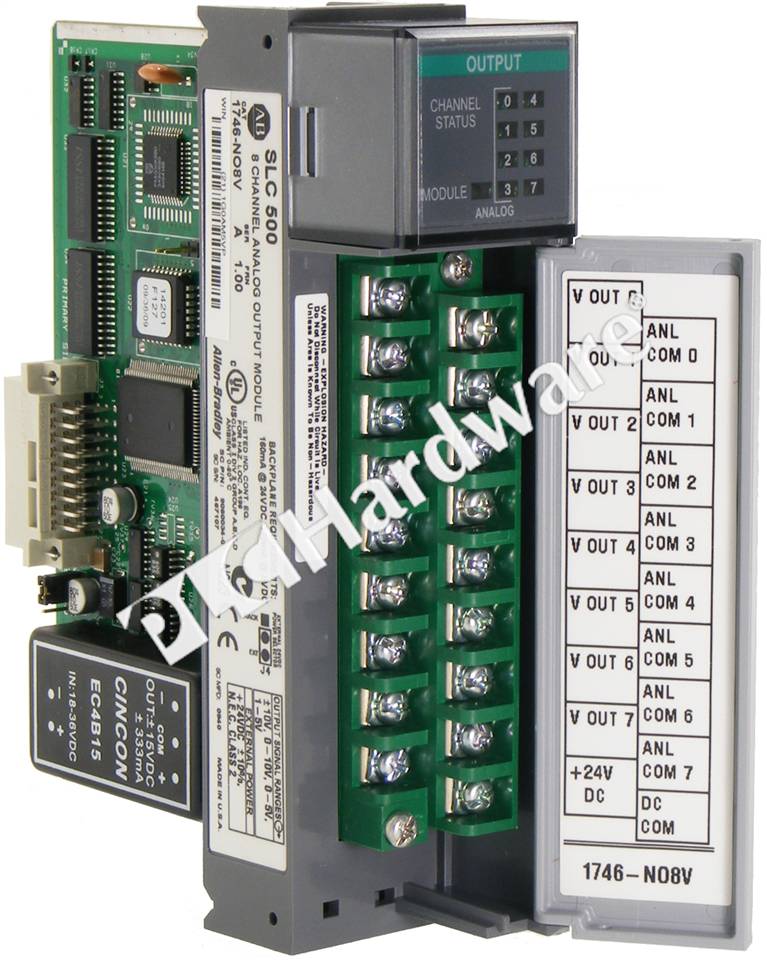

OverviewAllen-Bradley 1746-NO8V SLC 500 High Density Analog Voltage 8-Ch
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1746-NO8V SLC 500 High Density Analog Voltage 8-P Output Module, A
Full Description: Allen-Bradley 1746-NO8V SLC 500 High Density Analog Voltage Output Module, 8 individually configurable output channels with 16-bit resolution, Series A
UPC / GTIN: 10781180054577
Status: Current Product
Inventory & Prices

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
4 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $2,940.00
Your Price: $969.00
Specs & Technical Data
Specifications: 8 Voltage Outputs ±10V DC; Backplane Current Load: 120mA @ 5V, 160mA @ 24V; Backplane Power Consumption: 5.6W; Output Coding (proportional scaling): ±32,767; Output Step Response: 1ms (0-95% of full scale); DAC Conversion Method: R-2R Ladder Network; Typical Channel Update Time for all 8 channels: 5ms Class 1, 10ms Class 3; Load Range: 1kΩ and greater; Maximum Load Current: 10mA; Output Impedance: Less than 1.0Ω.
Miscellaneous: The 1746-NO8V contains a removable terminal block, providing connection for 8 analog output channels, which are specifically designed to interface with analog current and voltage devices. The 1746-NO8V provides 8 channels of voltage outputs. There are no input channels on the module. The module is configured via the programming software. There are no DIP switches. A jumper, J4, is used to select whether the 24V DC power is provided by the SLC or backplane or an optional 24V DC external power supply.
