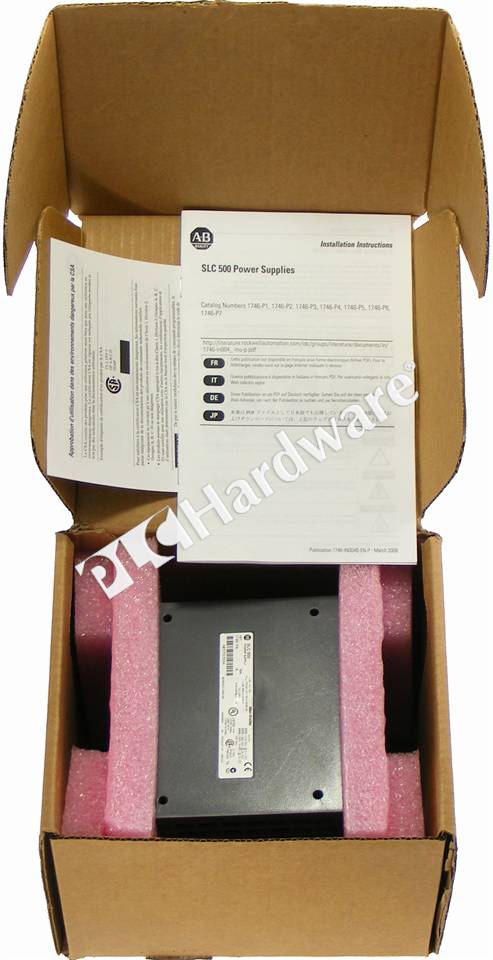

OverviewAllen-Bradley 1746-P4 SLC 500 Rack Mount Power Supply AC, Ser. A
Mfr. Part Number:

1746-P4/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1746-P4 SLC 500 Rack Mount Power Supply, 120/240VAC, 10A, Series A
Full Description: Allen-Bradley 1746-P4 SLC 500 Power Supply, Rack Mount, 120/240V AC, 10A @ 5V DC & 2.88A @ 24V DC, Series A
UPC / GTIN: 10662468409589
Status: Current Product
Inventory & Prices
Condition:

NFO (New Factory Open)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $1,540.00
Your Price: $416.00
Quantity:


1746-P4/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1746-P4/A RA NSO Allen-Bradley 1746-P4 SLC 500 Rack Mount Power Supply, 120/240VAC, 10A, Series A $1,540.00 $626.00 -59% 1 buyit
1746-P4/A RA NSS Allen-Bradley 1746-P4 SLC 500 Rack Mount Power Supply, 120/240VAC, 10A, Series A $1,540.00 $970.00 -37% 1 buyit
1746-P4/A RA UPP Allen-Bradley 1746-P4 SLC 500 Rack Mount Power Supply, 120/240VAC, 10A, Series A $1,540.00 $240.00 -84% 7 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1746-P4 SLC 500 Power Supply, Nominal Input Voltage: 120 or 240V AC; Input Voltage Range: 85-132V AC, 170-265V AC; Max Inrush Current: 45A; User Output Current: 1.0A @ 24V DC; User Output Voltage Range: 20.4-27.6V DC; Backplane Output Current: 10A @ 5V DC, 2.88A @ 24V DC; Frequency: 47-63 Hz; Fuse: None; Wiring: Maximum Two 14 AWG Wires Per Terminal; Location: 1746 Chassis Side; Dimensions (HxWxD): 140 x 110 x 145 mm (5.5 x 4.3 x 5.7 in); Weight: 1.1 kg (2.5 lb).
Miscellaneous: Allen-Bradley 1746-P4 SLC 500 Power Supply provides PWR OUT +24V DC and PWR OUT COM terminals to power 24V DC sensors and loads. The terminals on the 1746-P4 Power Supply provide an isolated, non-fused 1A, 24V DC power supply. The 1746-P4 Power Supply has selectable 120V or 240V operation mode which can be chosen by setting a jumper, no special wiring is required. All 1746P4 Power Supplies have an LED that indicates proper supply power and operation.
