OverviewAllen-Bradley 1747-ACNR15 SLC 500 Redundant ControlNet Adapter
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1747-ACNR15 SLC 500 2-Port Redundant-Media ControlNet Adapter, A
Full Description: Allen-Bradley 1747-ACNR15 SLC 500 2-Port Redundant-Media ControlNet I/O Adapter, 2 BNC connectors for redundant media operationa and 1 NAP RJ-45 8-pin with shield connector, Series A
UPC / GTIN: 10612598205506
Status: Discontinued by manufacturer
Inventory & Prices

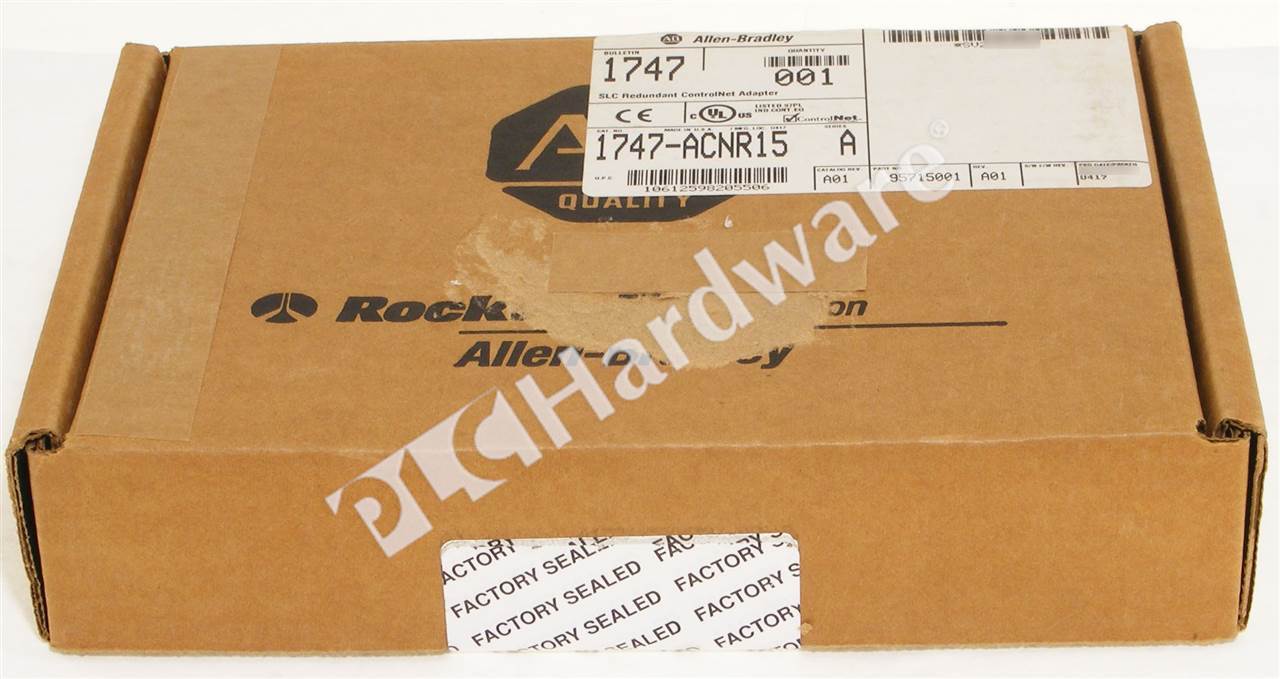

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $3,230.00
Your Price: $522.00
Specs & Technical Data
Specifications: ControlNet I/O adapter port 5 Mbit/s; Connectors: 2 BNC connectors for redundant media operation, 1 NAP (RJ-45 8-pin with shield); Quad-shield RG-6 coaxial cable; Backplane Current Load: 900 mA @ 5V DC. 1747-ACNR15 I/O adapter modules allow 1746 I/O modules in a remote chassis to be controlled by SLC and PLC processors. SLC processors require a scanner module to reside in the local chassis in order for the remote communication to occur.
Miscellaneous: The 1747-ACNR15 Adapter controls 1746 remote I/O on the ControlNet network. The 1747-ACNR15 adapters support multiple scheduled connections to individual modules or rack scheduled connections to a group of modules. Up to 64 scheduled connections per adapter are possible with a maximum of 251 input words and/or 249 output words supported per scheduled connection. The 1747-ACNR15The 1747-ACNR15 can control up to 30 slots of 1746 I/O (3 chassis max.).
