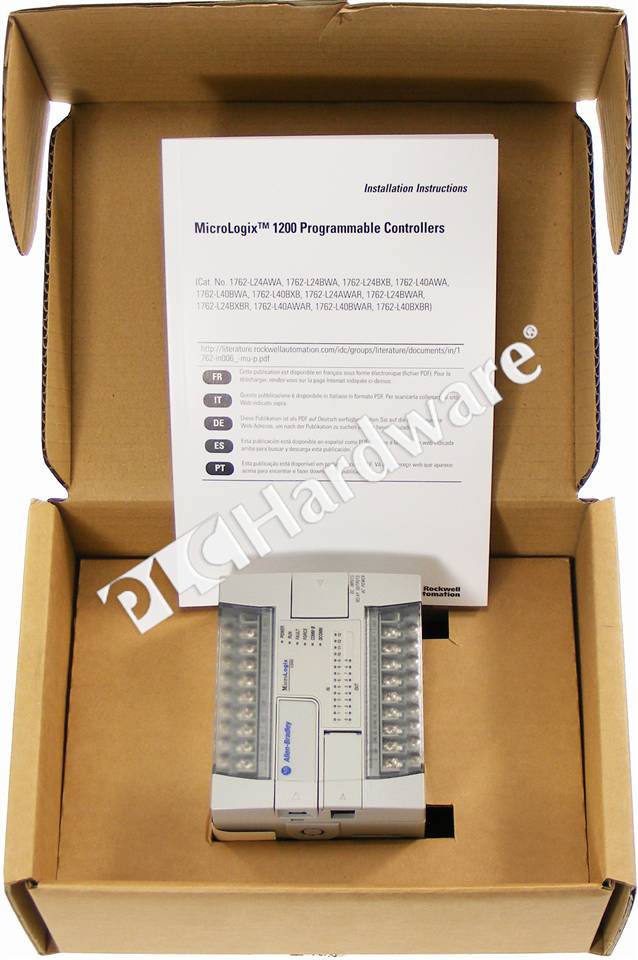

OverviewAllen-Bradley 1762-L24BWAR MicroLogix 1200 Controller, Series C
Mfr. Part Number:

1762-L24BWAR/C

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1762-L24BWAR MicroLogix 1200 120/240VAC 14-In/10-Out w/HMI Port, C
Full Description: Allen-Bradley 1762-L24BWAR MicroLogix 1200 Controller, 120/240V AC Power, (10) Standard 24V DC Digital Inputs, (4) Fast 24V DC Digital Inputs, (10) Relay Outputs, with additional Programming/HMI Port, Series C
UPC / GTIN: 10781180463843
Status: Current Product
Inventory & Prices
Condition:

NFO (New Factory Open)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $628.00
Your Price: $315.00
Quantity:


1762-L24BWAR/C
Similar Parts Mfr Cond Description Retail Price Disc Qty
1762-L24BWAR/C RA NSO Allen-Bradley 1762-L24BWAR MicroLogix 1200 120/240VAC 14-In/10-Out w/HMI Port, C $628.00 $509.00 -19% 1 buyit
1762-L24BWAR/C RA UPP Allen-Bradley 1762-L24BWAR MicroLogix 1200 120/240VAC 14-In/10-Out w/HMI Port, C $628.00 $198.00 -68% 7 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1762-L24BWAR MicroLogix 1200 Controller with HMI/Programming Port, Number of I/O: 14 Inputs, 10 Outputs; Input Type: 24VDC Sink/Source; Input Signal Delay: Selectable - 0.025, 0.075, 0.1, 0.25, 0.5, 1, 2, 4, 8, or 16 ms; Output Type: 10 Relay; Input Voltage: 85-265V AC @ 47-63 Hz; Input Voltage, Nom: 120/240V AC; Real Input Power, Max: 31W; Power Supply Output: 400mA @ 5VDC, 350mA @ 24VDC; Continuous Output Current, Max: 8A/common, 30A total @ 150VAC, 20A total @ 240VAC; Weight: 0.9kg (2.0lb).
Miscellaneous: Allen-Bradley 1762-L24BWAR Controller provides 6K-word memory for a maximum program of 4K words and maximum data of 2K words with 100% data retention. An optional memory module can be used with 1762-L24BWAR Controller to provide program and data backup with program upload and download capability. The optional real-time clock can be used with this 1762-L24BWAR Controller to enable time scheduling of control activities. The 1762L24BWAR Controller can be mounted either on a panel or on a DIN-rail.
