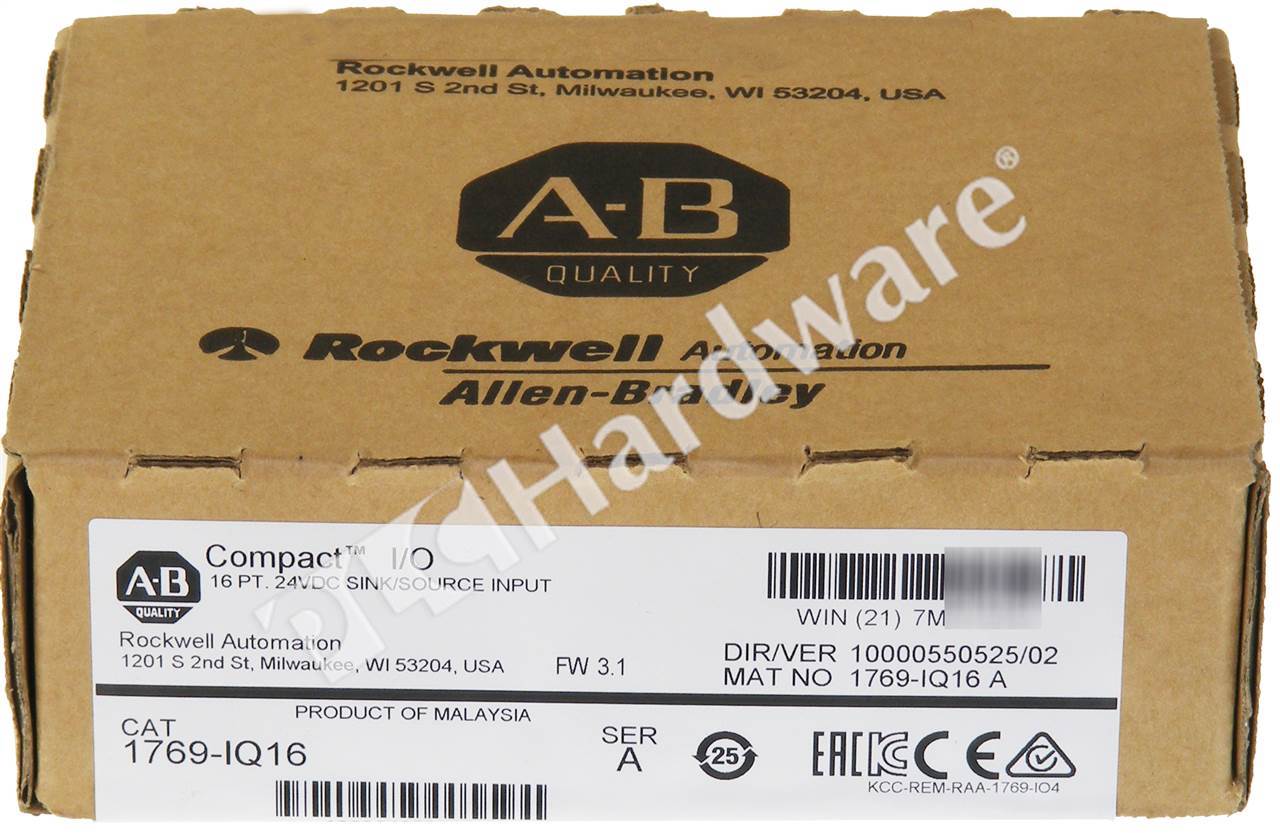

OverviewAllen-Bradley 1769-IQ16 CompactLogix DC Input Module 16 Point
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1769-IQ16 CompactLogix Sink/Source Input Module 16 Point 24 VDC
Full Description: Allen-Bradley 1769-IQ16 Compact I/O 24V DC Sink/Source Digital Input Module, 16 Inputs (8 points/group)
UPC / GTIN: 10662468992814
Status: Current Product
Inventory & PricesPLCH is Not Authorized Distributor of this product
36 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Estimated Value:
Your Price: from $349.00
To Order:
Choose your 1769-IQ16 below and click to Buy
PLC Hardware (PLCH) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens or any other Manufacturers. PLCH is NOT Authorized Dealer of this product. The product may be of older version, date codes or design than that available from authorized dealers. As PLCH is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. PLCH sells SURPLUS and USED equipment ONLY and DOES NOT sell SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining a proper license from the manufacturer. PLCH makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. PLCH also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from Original Manufacturer, its distributors, or any other source. PLCH also makes no representations as to your right to install any such software or firmware on the product. PLCH will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that PLCH DOES NOT provide any software, firmware, operating system or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance and upgrades are subject to applicable manufacturer's Licensing Agreement or similar document.
Mfr Part # Mfr Cond Description Est Val Price Disc Qty
1769-IQ16/A RA UPP Allen-Bradley 1769-IQ16 CompactLogix Input Module 16-Point 24V DC Sink/Source, A $349.00 31 buyit
1769-IQ16/A RA SOP Allen-Bradley 1769-IQ16 CompactLogix Input Module 16-Point 24V DC Sink/Source, A $525.00 1 buyit
1769-IQ16/A RA SSP Allen-Bradley 1769-IQ16 CompactLogix Input Module 16-Point 24V DC Sink/Source, A $549.00 4 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1769-IQ16 Compact I/O Digital DC Input Module, Number of Inputs: 16 Inputs (8 points/group); Voltage Category: 24V DC (Sink/Source); Operating Voltage Range: 10...30V DC @ 30 °C (86 °F), 10...26.4V DC @ 60 °C (140 °F); Hardware Delay: OFF to ON – 8 ms (typical), ON to OFF – 8 ms (typical); Current, On-State Input, Min: 2.0 mA; Current, Off-State Input, Max: 1.5 mA; Backplane Current @ 5V: 115 mA (0.58 W); Power Supply Distance Rating: 8 modules.
Miscellaneous: Allen-Bradley 1769-IQ16 modules can be used with a CompactLogix controller, as well as for expansion Input Modules in a MicroLogix 1500 controller assembly or in an assembly with a 1769-ADN DeviceNet adapter module. Unless connected to a MicroLogix 1500 base, each bank of I/O modules must include its own power supply. The 1769-IQ16 input module responds to an input signal in the following manner: an input LED turns on or off indicating the status of the corresponding input device.
