OverviewAllen-Bradley 1771-NOV PLC-5 8P Analog Voltage Output Module, C
Mfr. Part Number:

1771-NOV/C

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1771-NOV PLC-5 8P Analog Voltage Output Module, High Resolution, C
Full Description: Allen-Bradley 1771-NOV PLC-5 High Resolution Analog Output Module, 8 x Voltage Outputs, ±10V, Isolated, Series C
UPC / GTIN: 10612598116703
Status: Current Product
Inventory & Prices
Condition:

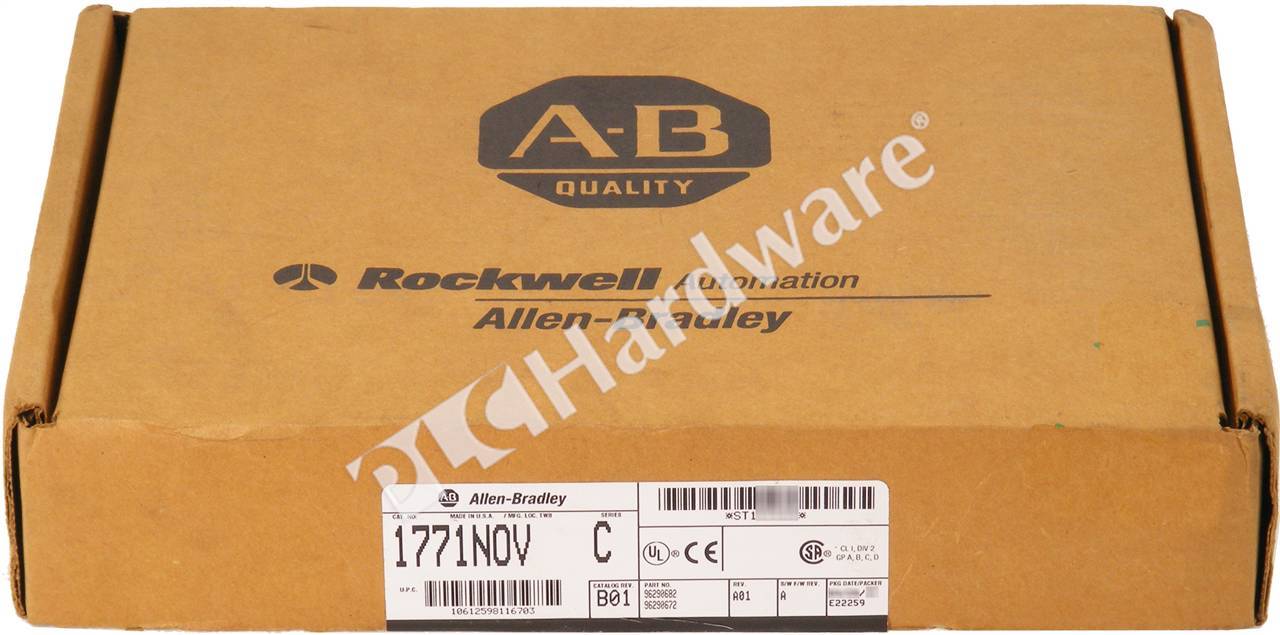

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
Availability:
1 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $10,600.00
Your Price: $1,700.00
Quantity:


1771-NOV/C
Similar Parts Mfr Cond Description Retail Price Disc Qty
1771-NOV/A RA UPP Allen-Bradley 1771-NOV PLC-5 8P Analog Voltage Output Module, High Resolution, A $10,600.00 $129.00 -99% 2 buyit
1771-NOV/C RA UPP Allen-Bradley 1771-NOV PLC-5 8P Analog Voltage Output Module, High Resolution, C $10,600.00 $269.00 -97% 1 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1771-NOV PLC-5 Analog Output Module, Output Type: Voltage; Number of Outputs: 8;Output Range: ±10.4V; Output Resolution: 1.32 mV/bit, 14 bits (unipolar); Output Impendance: 1 Ohm (max); Update Time (per module), Max: 25ms; Accuracy with Calibration (including Non-linearity, Gain, and Offset): 0.01% of FS @ 25°C (typical), 0.08% of FS @ 25°C (max); Remote Termination Panel (RTP): 1771-RTP3 (fused) or 1771-RTP4 (unfused); Backplane Current Load: 2.1A @ 5V.
Miscellaneous: Allen-Bradley 1771-NOV N-series High Resolution Analog Output Module is an intelligent block transfer module that interfaces analog signals with Allen-Bradley PLC-3 and PLC-5 family programmable controllers that have block transfer capability. The 1771-NOV module requires only a single slot in the I/O chassis, and does not require an external power supply. Each 1771-NOV module requires two cable assemblies for connection to its RTP. The available cable assemblies are: 1771-NC6 (6 ft) and 1771-NC15 (15 ft).
