OverviewAllen-Bradley 1784-PM16SE SoftLogix 16-axis SERCOS interface PCI
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1784-PM16SE SoftLogix 16-Axis SERCOS PCI Card, Series A

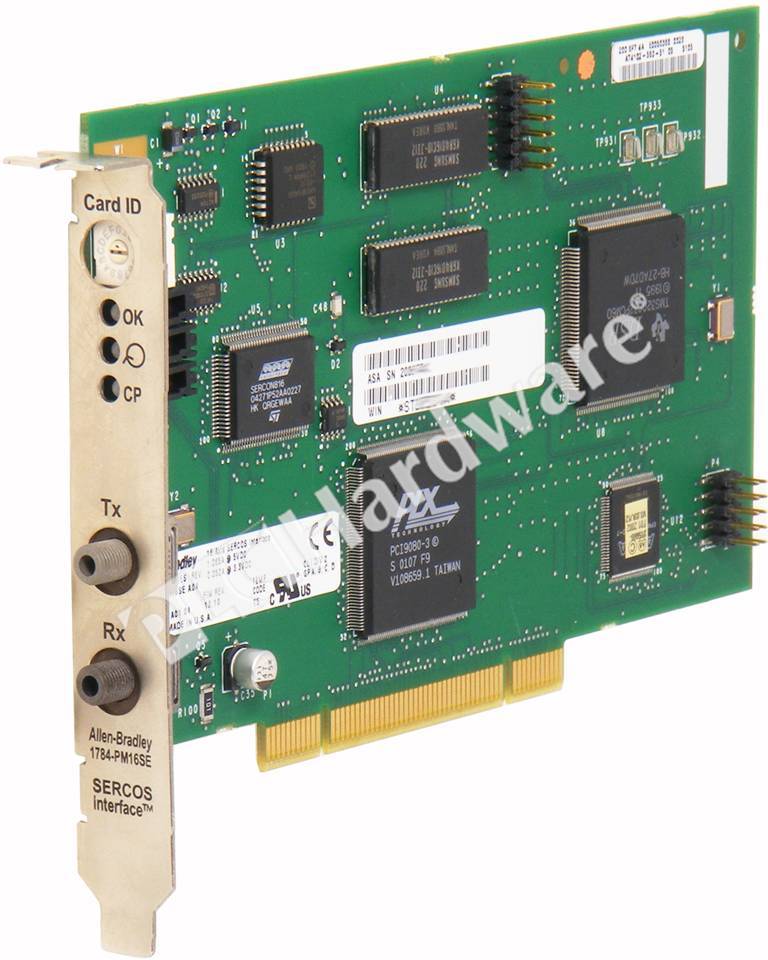

Full Description: Allen-Bradley 1784-PM16SE SoftLogix 16-Axis SERCOS PCI Interface Card; Provides a link between the SoftLogix platform and intelligent, Servo Drives. The SERCOS Interface Module uses a Single Digital Fiber Optic Link, which eliminates up to 18 discrete wires per axis. Detailed drive status information can be sent from drive to controller and from controller to drive, Series A
Status: Current Product
Inventory & Prices

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $3,814.00
Your Price: $1,155.00
Specs & Technical Data
Specifications: (16) Axes per Module (max); (1) module (16 axes) per SoftLogix Controller (max); Power Dissipation: 7.5 W; Current Capacity: 0.050 A @ 3.3V; Backplane Current: 1.065A @ 5V; SERCOS Data Rate: 4 Mb/s or 8 Mb/s. Compatible with the RSLogix 5000 motion instructions set & axis configuration utilities. The motion instructions provide a wide range of motion capability (point-point positioning, gearing, position & time-based camming, multiaxis linear/circular motion, etc).
Miscellaneous: The Allen-Bradley 1784-PM16SE SERCOS interface module works with the following servo drives: 2094 Kinetix 6000 servo drive, 2098 Ultra3000 SERCOS servo drive, 1394C SERCOS drive, 8720MC spindle. Available Plastic Fiber-optic Cables: 2090-SCEPx-x (no jacket), 2090-SCVPx-x (standard jacket), 2090-SCNPx-x (nylon jacket). Available Glass Fiber-optic Cables: 2090-SCVGx-x. Both the transmitter and receiver connections use a F-SMA standard plug that conforms to the F-SMA screw type connector.
