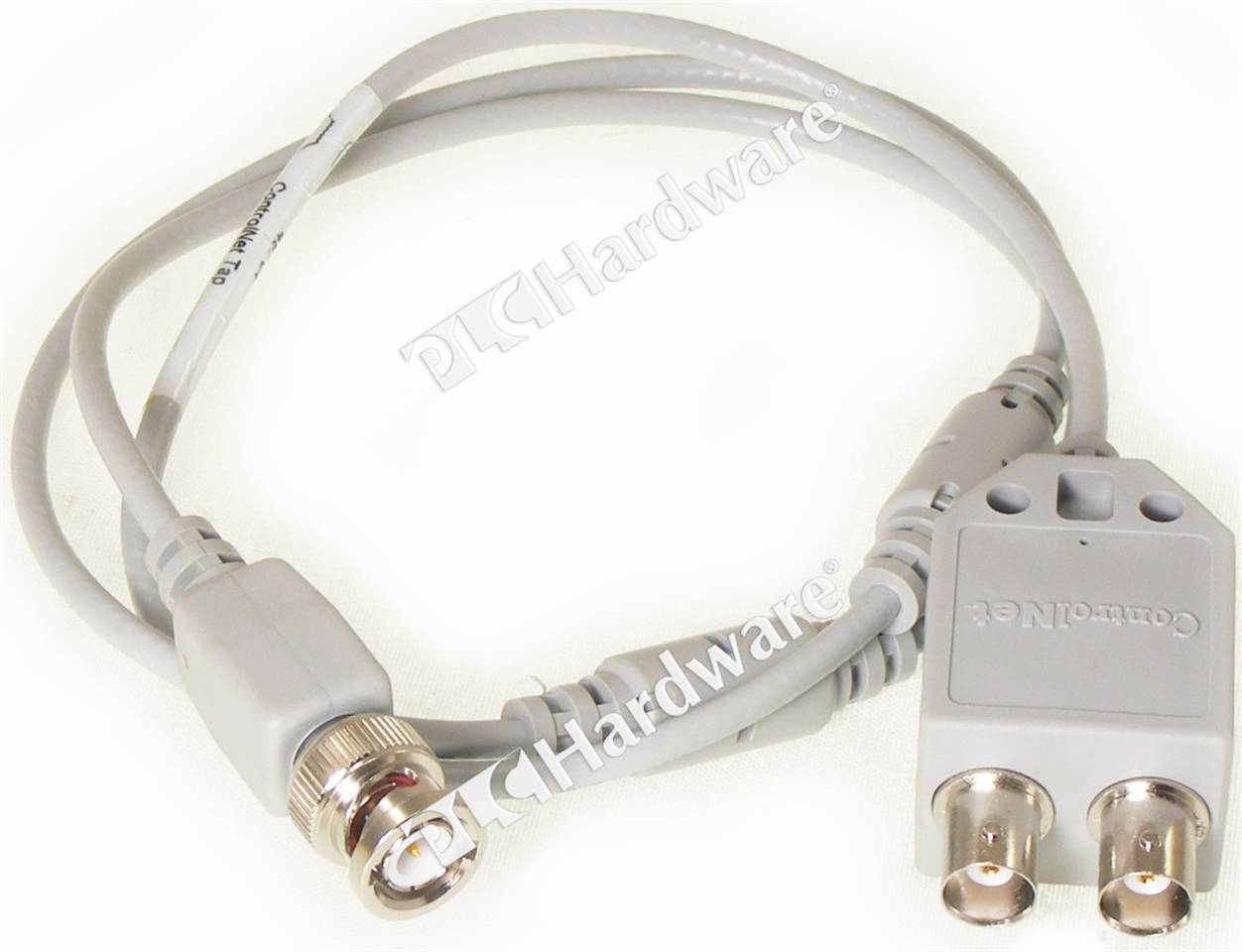

OverviewAllen-Bradley 1786-TPYS ControlNet Y-Tap/Straight, Series C
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1786-TPYS ControlNet Y-Tap, Straight, with Drop Cable 1m, Series C
Full Description: Allen-Bradley 1786-TPYS ControlNet Y-Tap/Straight, connects each node on a network to the coax cable system via an integral 1m (39.6”) drop cable, Series C
UPC / GTIN: 10612598165558
Status: Current Product
Inventory & Prices

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
0 in stock 5 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $135.00
Your Price: $87.00
Specs & Technical Data
Specifications: Allen-Bradley 1786-TPYS ControlNet Y-Tap/Straight, Operating Temperature: IEC 60068-2-1(Test Ad, Operating Cold), IEC 60068-2-2 (Test Ad, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock):-20...70 °C (-4...158 °F); Relative Humidity: IEC 60068-2-30 (Test Db, Unpackaged Damp Heat): 5-95% noncondensing; Shock, Non-Operating: IEC 60068-2-27 (Test Ea, Unpackaged Shock): 50 g; Shock, Operating: IEC 60068-2-27 (Test Ea): 30 g; Vibration, Operating: IEC 60068-2-6: 2.5 g @ 10-500 Hz.
Miscellaneous: Allen-Bradley 1786-TPYS ControlNet Y-Taps connect each node on a network to the coax cable system via an integral 1m (39.6”) drop cable. The number of taps depends on the number of devices need to be connected to the network. The tap is required for each node and repeater on a segment. The distance between Y-taps and T-taps can be increased by using sections of trunk cable between taps. Connecting taps using this method requires use of the BNC connectors and cable with the tap kit.
