OverviewAllen-Bradley 1788-CN2DN ControlNet-to-DeviceNet Linking Device
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation

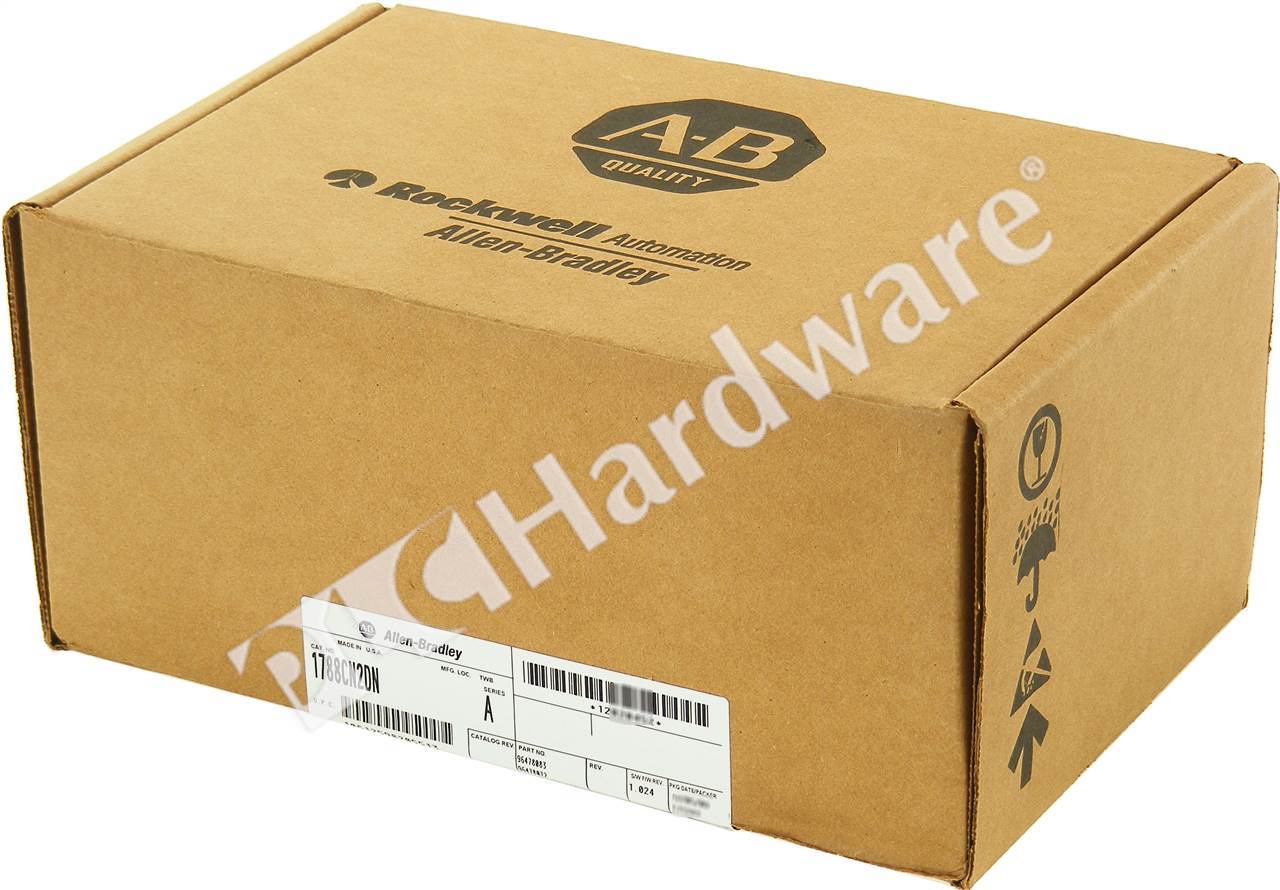

Description: Allen-Bradley 1788-CN2DN ControlNet-to-DeviceNet Linking Device, Series A
Full Description: Allen-Bradley 1788-CN2DN ControlNet-to-DeviceNet (CN2DN) linking device, Series A. The 1788-CN2DN connects a ControlNet network to a DeviceNet network. The DeviceNet network typically consists of multiple devices, such as RediStation’s, photoeyes, etc. The ControlNet network consists of controllers, such as Logix or PLC-5 processors, HMIs, drives, I/O devices, etc.
UPC / GTIN: 10612598205513
Status: Current Product
Inventory & Prices

NFO (New Factory Open)

Warranty: One Year Replacement Warranty
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $1,600.00
Your Price: $577.00
Similar Parts Mfr Cond Description Retail Price Disc Qty
1788-CN2DN/A RA UPP Allen-Bradley 1788-CN2DN ControlNet-to-DeviceNet Linking Device, Series A $1,600.00 $234.00 -85% 6 buyit
Specs & Technical Data
Specifications: (1) ControlNet port with support for redundant media; (1) ControlNet network access port ; (1) DeviceNet port.. Rotary switches are used to set the ControlNet & DeviceNet node addresses and DeviceNet node data rate. The CNet Status LEDs display the current status of each of the redundant media channels. The DNet LEDs display the current status of the network and the I/O channel. Module Status and Linking Activity LEDs are provided. The power supply connector is wired to 24V DC.
Miscellaneous: The CN2DN has two broad functions: Supporting closed-loop control & configuration and monitoring. The CN2DN maintains internal input, output, and status structures to reduce the complexity of connecting DeviceNet I/O and status data with ladder programs and to make diagnostic information available to the user.
