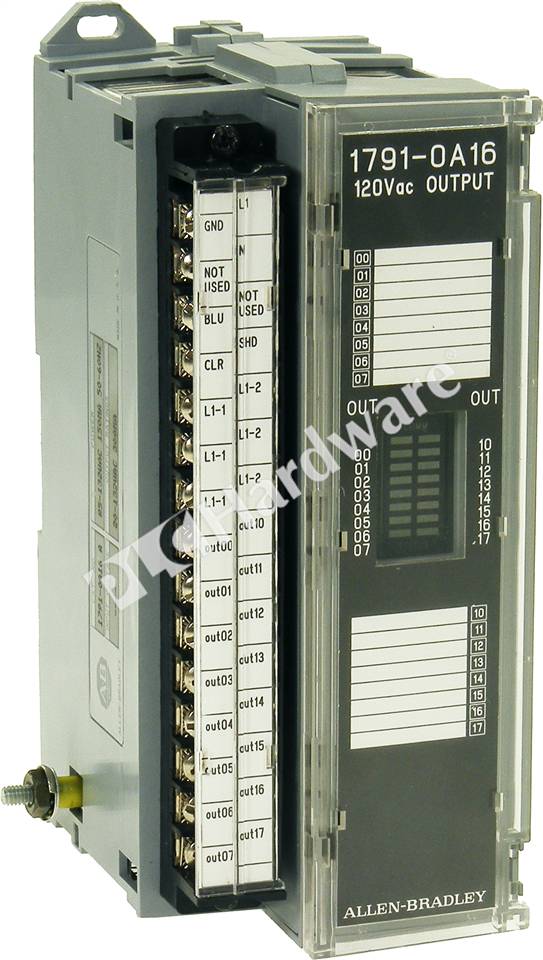

OverviewAllen-Bradley 1791-0A16 Block I/O Output Module, 16-P 120VAC, B
Mfr. Part Number:

1791-0A16/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1791-0A16 Block I/O Output Module, 16-Outputs 120V AC, Series B
Full Description: Allen-Bradley 1791-0A16 Block I/O Output Module, 16-Outputs (2 groups of 8) 20–132V AC, 47–63Hz, Series B
UPC / GTIN: 10612598127020
Status: Current Product
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
1 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $1,854.00
Your Price: $223.00
Quantity:

1791-0A16/B
Similar Parts Mfr Cond Description Retail Price Disc Qty
1791-0A16/A RA UPP Allen-Bradley 1791-0A16 Block I/O Output Module, 16-Outputs 120V AC, Series A $1,854.00 $208.00 -89% 3 buyit
Specs & Technical Data
Specifications: Outputs per Block: 16 (2 groups of 8); Output Voltage Range: 20–132V AC, 47–63Hz; Maximum Output Current Rating for Vertical Mounting: 600mA; Maximum Output Current Rating for Horizonta Mounting: 300mA; Surge Current: 10A for 50ms each, repeatable every 2 sec; Minimum On-state Current: 50mA per output; Maximum On-state Voltage Drop: 1.5V peak @ 300mA; Off-state Leakage Current (maximum): 3mA; Output Signal Delay for Off to On: 1.0ms @ 60Hz; 1.0ms @ 50Hz; Output Signal Delay for On to Off: 8.3ms @ 60Hz.
Miscellaneous: External Power: 85–132V AC, 47–63Hz, 150mA (1791-0A16 is Internally protected - no external fuse required). The SLC 500 controllers communicate with the 1791-0A16 Block I/O using an I/O Scanner module (cat. no. 1747-SN).
