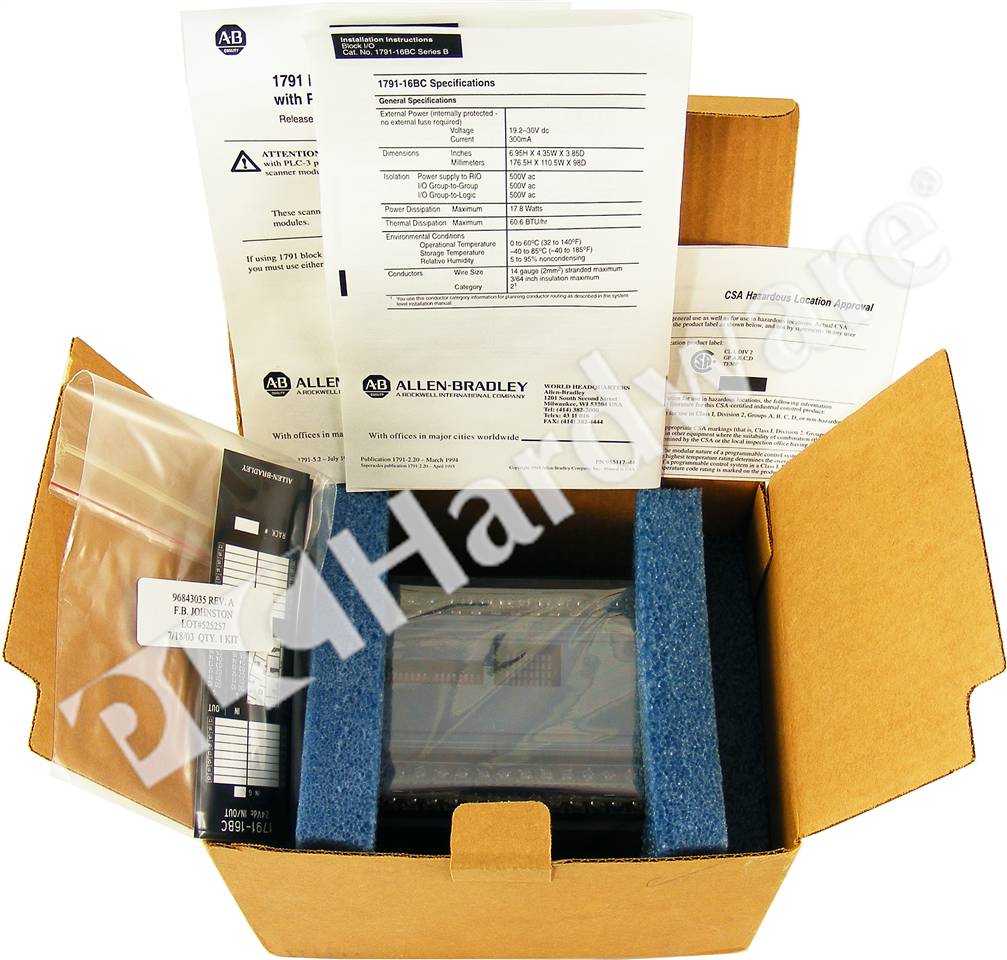

OverviewAllen-Bradley 1791-16BC Block I/O Module 24VDC 32 Points, Ser. B
Mfr. Part Number:

1791-16BC/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1791-16BC Block I/O Module, 24V DC 32 Points: 16-In/16-Out, Ser. B
Full Description: Allen-Bradley 1791-16BC Block I/O Module, 32 Points: 16 Inputs (24VDC Source), 16 Outputs (24VDC Source), with Remote I/O Communication, 24V DC Power, Series B
UPC / GTIN: 10612598124753
Status: Discontinued by manufacturer
Inventory & Prices
Condition:

NFO (New Factory Open)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $4,440.00
Your Price: $799.00
Quantity:

1791-16BC/B
Similar Parts Mfr Cond Description Retail Price Disc Qty
1791-16BC/B RA UPP Allen-Bradley 1791-16BC Block I/O Module, 24V DC 32 Points: 16-In/16-Out, Ser. B $4,440.00 $1,764.00 -60% 2 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1791-16BC Block I/O Module, Number of Inputs: 16 - 2 groups of 8; Input Voltage, Nom: 24V DC; On-state Voltage Range: 10-30V DC; On-state Current: 11.0mA @ 30V, 2.5mA @ 10V; Input Signal Delay, Max: Fast - 1.0ms ON, 5.0ms OFF, Slow - 1.0ms ON, 18.0ms OFF; Number of Outputs: 16 - 2 groups of 8; Output Voltage, Nom: 24V DC; Output Voltage Range: 10-30V DC; Output Signal Delay, Max: 0.5ms ON, 1.0ms OFF; Line Power: 19.2-30V DC @ 300mA.
Miscellaneous: Allen-Bradley 1791-16BC Block I/O Module is a complete I/O interface that includes the functionality of the I/O rack, adapter, power supply, and I/O modules in a single unit. The 1791-16BC Block I/O inputs convert DC signals from user devices to the appropriate logic level for use within the processor. The 1791-16BC blocks are compatible with PLC-2, PLC-3, PLC-5/250 and PLC-5 family programmable controllers, and the SLC5/02 modular controllers.
