OverviewAllen-Bradley 1794-IT8 Flex I/O Analog Input Thermocouple 8-P, A
Mfr. Part Number:

1794-IT8/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1794-IT8 Flex I/O Analog Input Module Thermocouple/mV 8 Ch, Ser. A
Full Description: Allen-Bradley 1794-IT8 Flex I/O Analog Input Module, Thermocouple/mV, 8 Point, Series A
UPC / GTIN: 10612598137838
Status: Current Product
Inventory & Prices
Condition:

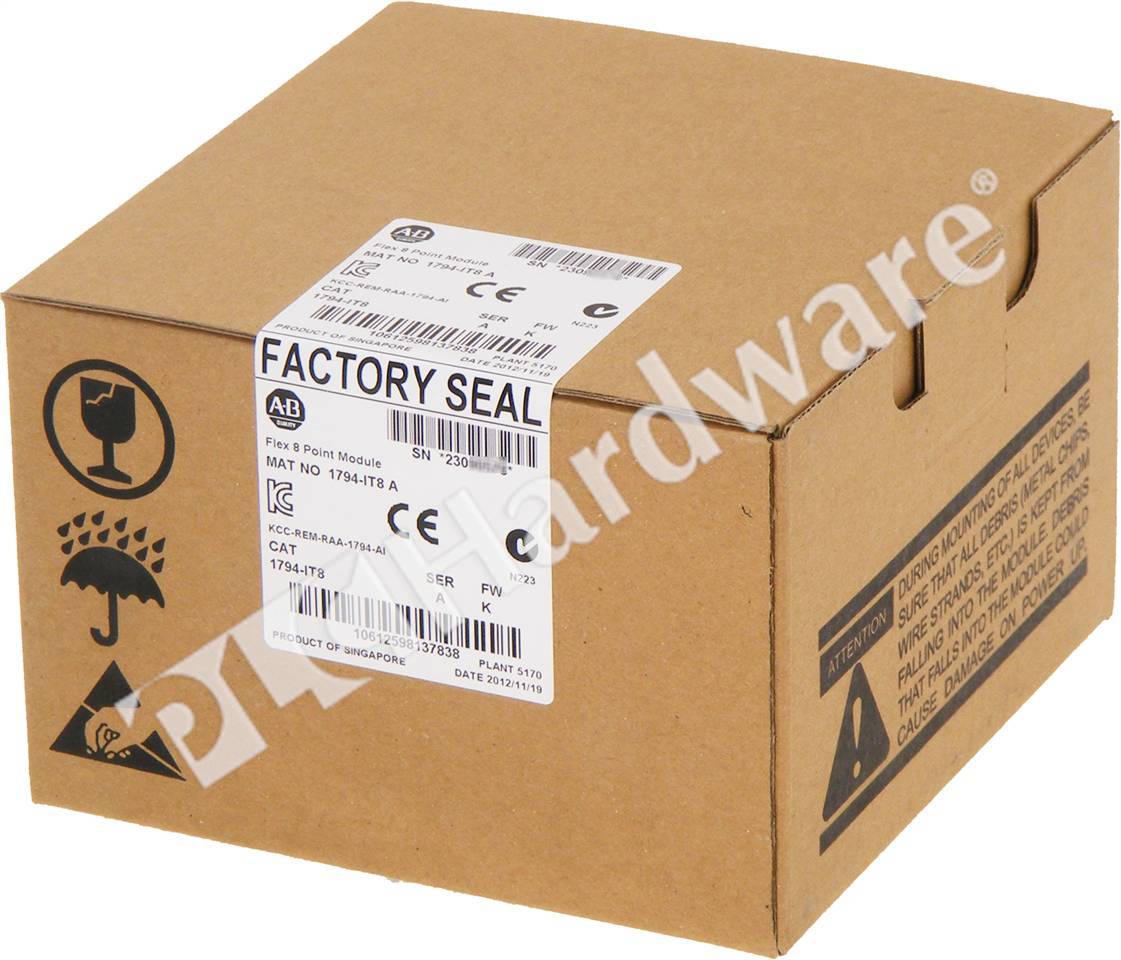

NFS (New Factory Sealed)

Warranty: 30 Days Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $1,690.00
Your Price: $770.00
Quantity:


1794-IT8/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1794-IT8/A RA NSO Allen-Bradley 1794-IT8 Flex I/O Analog Input Module Thermocouple/mV 8 Ch, Ser. A $1,690.00 $888.00 -47% 1 buyit
1794-IT8/A RA NSS Allen-Bradley 1794-IT8 Flex I/O Analog Input Module Thermocouple/mV 8 Ch, Ser. A $1,690.00 $916.00 -46% 2 buyit
1794-IT8/A RA UPP Allen-Bradley 1794-IT8 Flex I/O Analog Input Module Thermocouple/mV 8 Ch, Ser. A $1,690.00 $276.00 -84% 1 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1794-IT8 Flex I/O Analog Input Module, Number of Inputs: 8 Thermocouple, Millivolt; Input Signal Range: ±76.5 mV; Input Resolution: 16 bits (2.384 microvolts typical); External DC Supply Current, Nom.: 150 mA @ 24V DC; Power Dissipation, Max.: 3 W @ 31.2V DC; Channel Bandwidth: 0-2.62Hz (–3db) default; Indicators: 1 red/green power status indicator; Terminal Base Unit: 1794-TB3T, 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3TS.
Miscellaneous: Allen-Bradley 1794-IT8 is a temperature/mV measuring module that accepts inputs from a variety of thermocouples and from the mV source in the range of ±76.5 mV. The cold-junction compensators (1794-CJC2) should be used in thermocouple mode. Two cold-junction compensators are shipped with any new 1794-IT8 module. The 1794-IT8 module has on-board scaling that simplifies programming and eliminates the need to scale the data in the user program. Terminal Base: 1794-TB2, 1794-TB3 or 1794-TB3S for mV inputs only.
