OverviewAllen-Bradley 1794-OA16 FLEX I/O Output Module 85-132VAC 16-P, A
Mfr. Part Number:

1794-OA16/A

Manufacturer: Allen-Bradley / Rockwell Automation

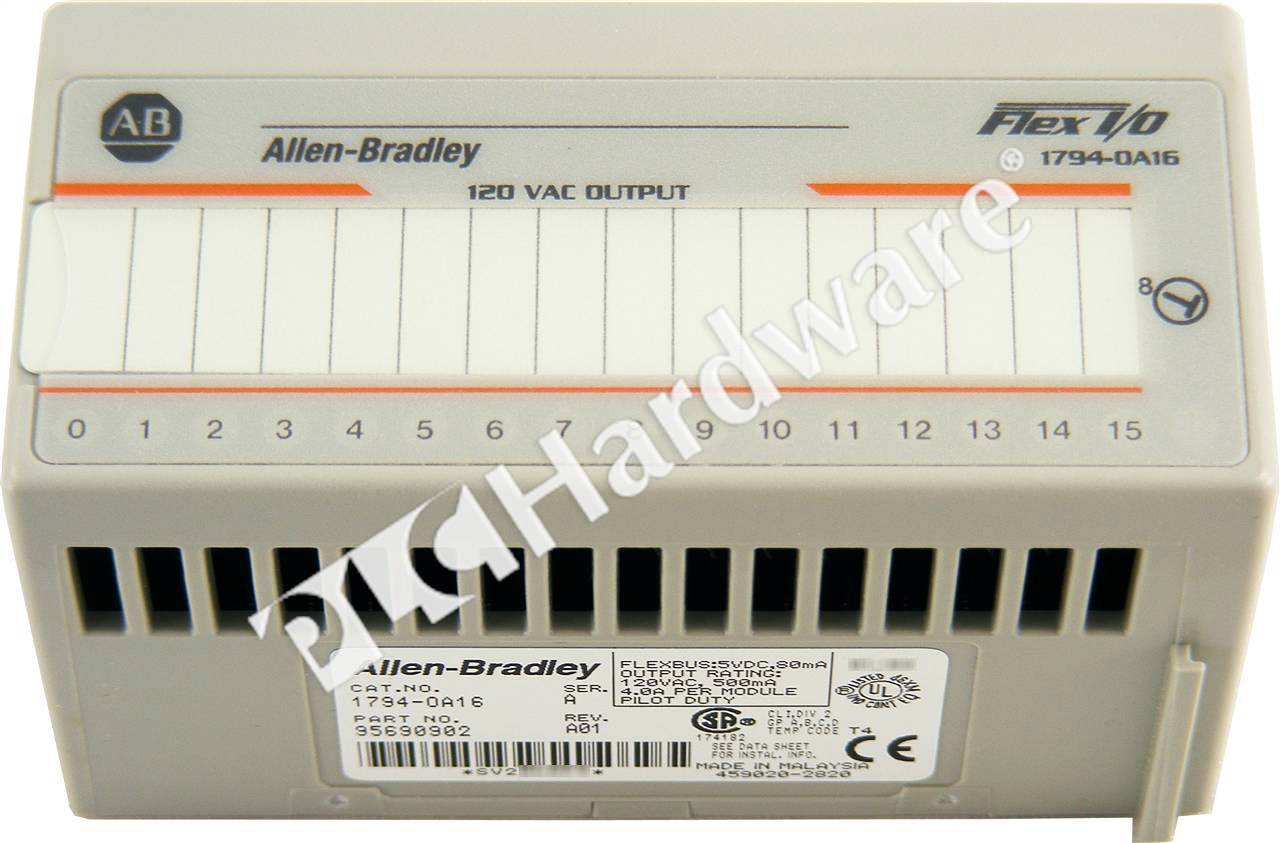

Description: Allen-Bradley 1794-OA16 FLEX I/O AC Output Module, 85-132 VAC, 16 Outputs, Ser A
Full Description: Allen-Bradley 1794-OA16 FLEX I/O Digital AC Output Module, 85-132 VAC, 16 Outputs, Series A
UPC / GTIN: 10612598179944
Status: Current Product
Inventory & Prices
Condition:

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
Availability:
3 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $475.00
Your Price: $159.00
Quantity:


1794-OA16/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1794-OA16/A RA NSO Allen-Bradley 1794-OA16 FLEX I/O AC Output Module, 85-132 VAC, 16 Outputs, Ser A $475.00 $192.00 -60% 1 buyit
1794-OA16/A RA NSS Allen-Bradley 1794-OA16 FLEX I/O AC Output Module, 85-132 VAC, 16 Outputs, Ser A $475.00 $309.00 -35% 7 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1794-OA16 FLEX I/O Digital AC Output Module, Number of Outputs: 16, Nonisolated; Voltage, On-State Output, Range: 85-132V AC; Indicators: 16 yellow status indicators; Keyswitch Position: 8; Current per Output, Max.: 500mA @ 55°C (5mA min); Current per Module, Max.: 4.0A (16 outputs @ 250mA); Maximum ON-state Voltage Drop: 1.5V @ 0.5A; Flexbus Current: 80mA @ 5V DC; Power Dissipation, Max.: 4.7W @ 0.5A; Terminal Base Unit: 1794-TB3, 1794-TB2, 1794-TB3S, 1794-TBN, 1794-TBKD.
Miscellaneous: Allen-Bradley 1794-OA16 module outputs are not fused. Fusing is recommended. If fusing is desired, the 1794-TBNF Terminal Base is recommended. Auxiliary terminal blocks are required to connect the associated 120V AC common for each channel when using the 1794-TBN terminal base with the 1794-OA16. The 1794-OA16 module is tested at 2150V DC for 1s between user and system, no isolation between individual channels, no isolation between customer power and output channels. The 1794-TB3 is recommended TB.
