OverviewAllen-Bradley 1794-OB16D Flex I/O w/Diagnostics, 24V DC, Ser. A
Mfr. Part Number:

1794-OB16D/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1794-OB16D Flex I/O 16 Source Output w/Diagnostics, 24V DC, Ser. A
Full Description: Allen-Bradley 1794-OB16D Flex I/O 16 Source Outputs (1 group of 16, group isolation) with Diagnostics, 24V DC, Series A
UPC / GTIN: 10612598305961
Status: Current Product
Inventory & Prices
Condition:

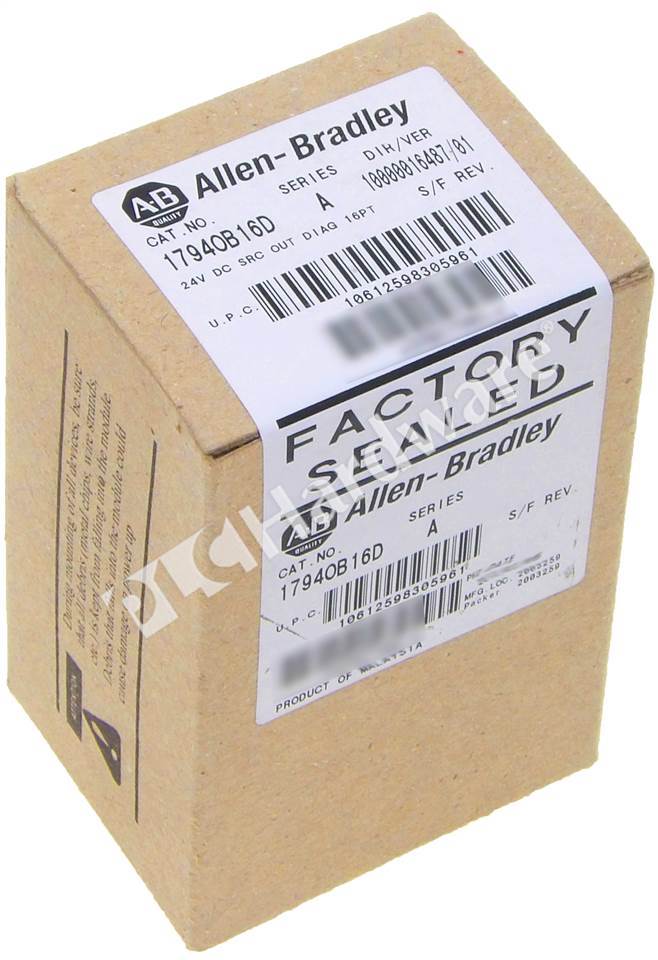

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 1 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $516.00
Your Price: $443.00
Quantity:


1794-OB16D/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1794-OB16D/A RA NSO Allen-Bradley 1794-OB16D Flex I/O 16 Source Output w/Diagnostics, 24V DC, Ser. A $516.00 $430.00 -17% 1 buyit
1794-OB16D/A RA UPP Allen-Bradley 1794-OB16D Flex I/O 16 Source Output w/Diagnostics, 24V DC, Ser. A $516.00 $214.00 -59% 1 buyit
Specs & Technical Data
Specifications: Number of Outputs: 16 (1 group of 16), group isolation; Output Voltage: 10V DC minimum, 24V DC nominal, 31.2V DC maximum; On-state Current: 2.0mA minimum per output, 0.5A per output nominal, 8A per module maximum; Output Current Rating: 8.0A (16 outputs @ 0.5A); Off-state Voltage: 31.2V DC maximum.
Miscellaneous: The Allen-Bradley 1794-OB16D Flex I/O output module monitors each output channel. It turns on the channel red LED and sets (1) the error bit when the module detects a short circuit (the output signal is active at a channel and the corresponding output voltage is low), and when the module detects an open wire (the output signal is inactive at a channel and the corresponding output voltage is high). The 1794-OB16D module requires dummy resistors on unused channels to mask the channel diagnostic function.
