OverviewAllen-Bradley 1794-TB3T Terminal Base for Temperature Modules, A
Mfr. Part Number:

1794-TB3T/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1794-TB3T FLEX I/O Terminal Base for Temperature Modules 3-Wire, A
Full Description: Allen-Bradley 1794-TB3T FLEX I/O Terminal Base Unit for Temperature Modules, 3-Wire Cage-Clamp Termination, Series A
UPC / GTIN: 10612598170767
Status: Current Product
Inventory & Prices
Condition:

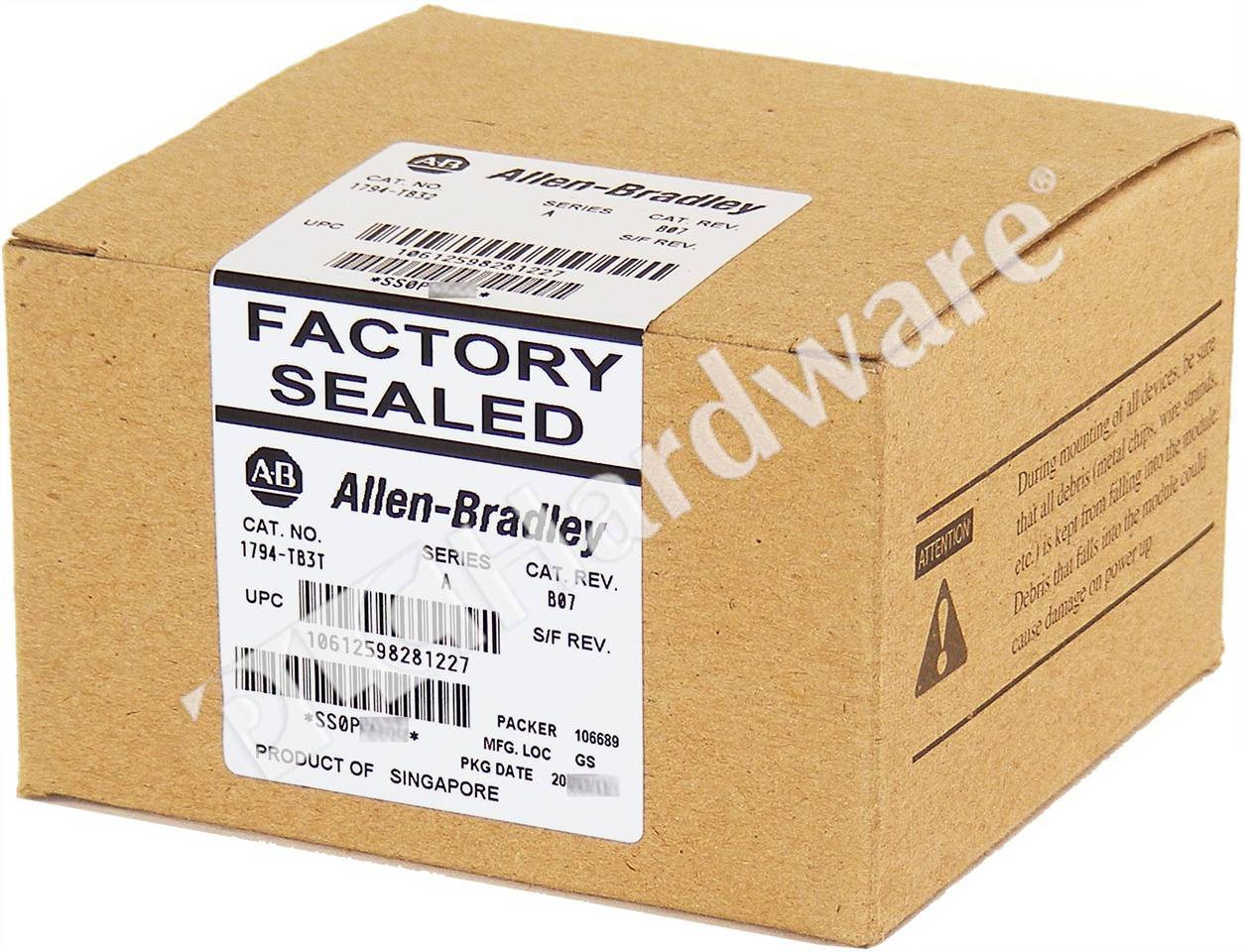

NFS (New Factory Sealed)

Warranty: 30 Days Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $219.00
Your Price: $253.00
Quantity:


1794-TB3T/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1794-TB3T/A RA NSO Allen-Bradley 1794-TB3T FLEX I/O Terminal Base for Temperature Modules 3-Wire, A $219.00 $130.00 -41% 1 buyit
1794-TB3T/A RA NSS Allen-Bradley 1794-TB3T FLEX I/O Terminal Base for Temperature Modules 3-Wire, A $219.00 $154.00 -30% 1 buyit
1794-TB3T/A RA UPP Allen-Bradley 1794-TB3T FLEX I/O Terminal Base for Temperature Modules 3-Wire, A $219.00 $46.00 -79% 1 buyit
1794-TB3TS/A RA UPP Allen-Bradley 1794-TB3TS Flex I/O Temperature Terminal Base 3-W Spring Clamp, A $222.00 $12.00 -95% 4 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1794-TB3T FLEX I/O Terminal Base Unit, Termination Type: Cage-clamp, 3-Wire; Wiring Connections: 16 I/O Inputs, 10 Commons, 4 +V Voltage, 2 Sets of CJC to be used with Temperature Modules; Applications: up to 132V AC & 156V DC; Current capacity, Max: 10A; Isolation Voltage: Established by installed module; Enclosure Type: None (open-style); Wire Size: 0.34-2.1 mm² (22-14 AWG) solid or stranded copper wire rated at 75 °C (167 °F ) or greater, 1.2 mm (3/64 in.) insulation max.
Miscellaneous: Allen-Bradley 1794-TB3T Terminal Bases provide backplane connections to the controller and the I/O module and provide terminal connection points for an I/O module. The 1794-TB3T units plug together to form the backplane. The 1794-TB3T Terminal Base has 2 sets of cold-junction compensation connections for thermocouple inputs. The 1794-TB3T allows Removal & Insertion of failed modules Under Power (RIUP).
