OverviewAllen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base, Ser A
Mfr. Part Number:

1794-TBNF/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base, Screw Clamp, Series A

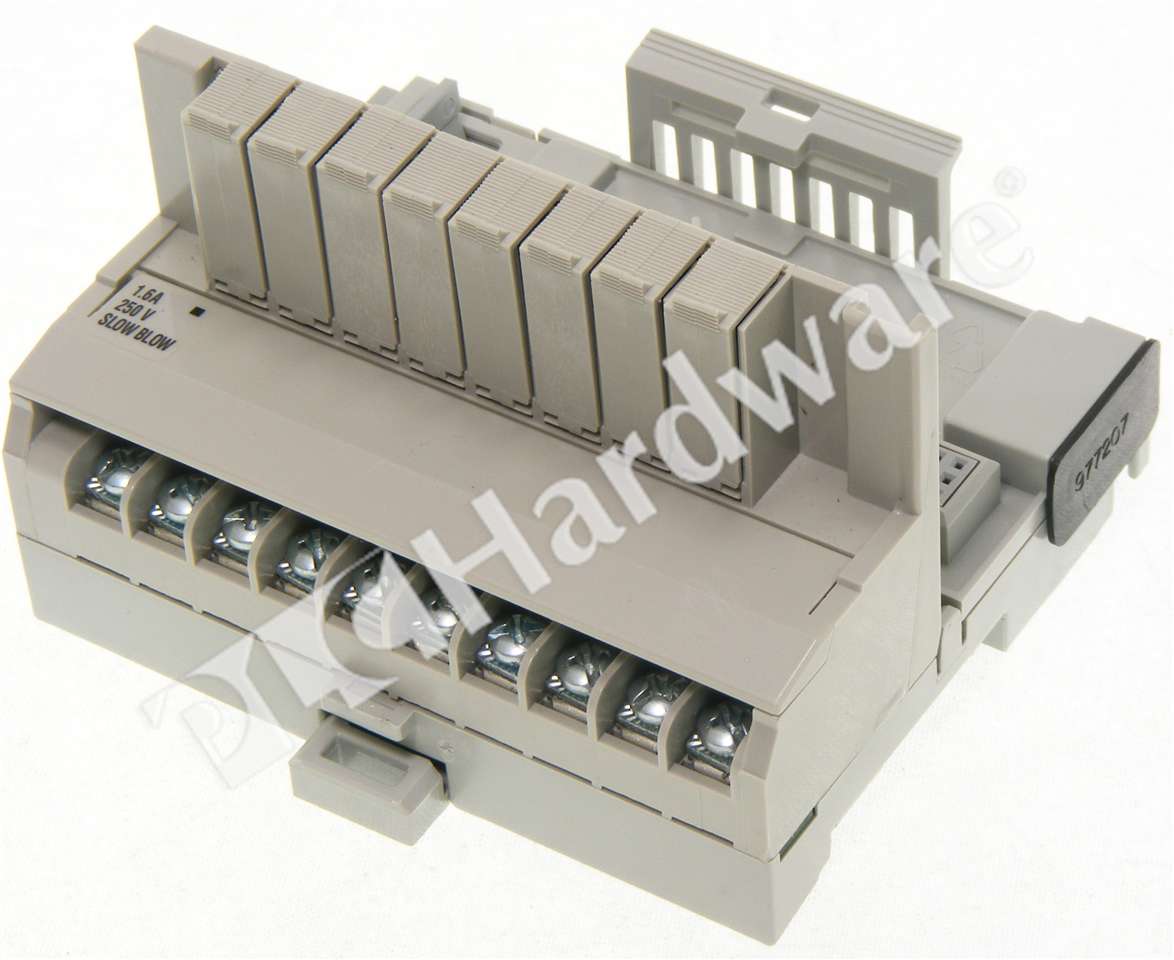

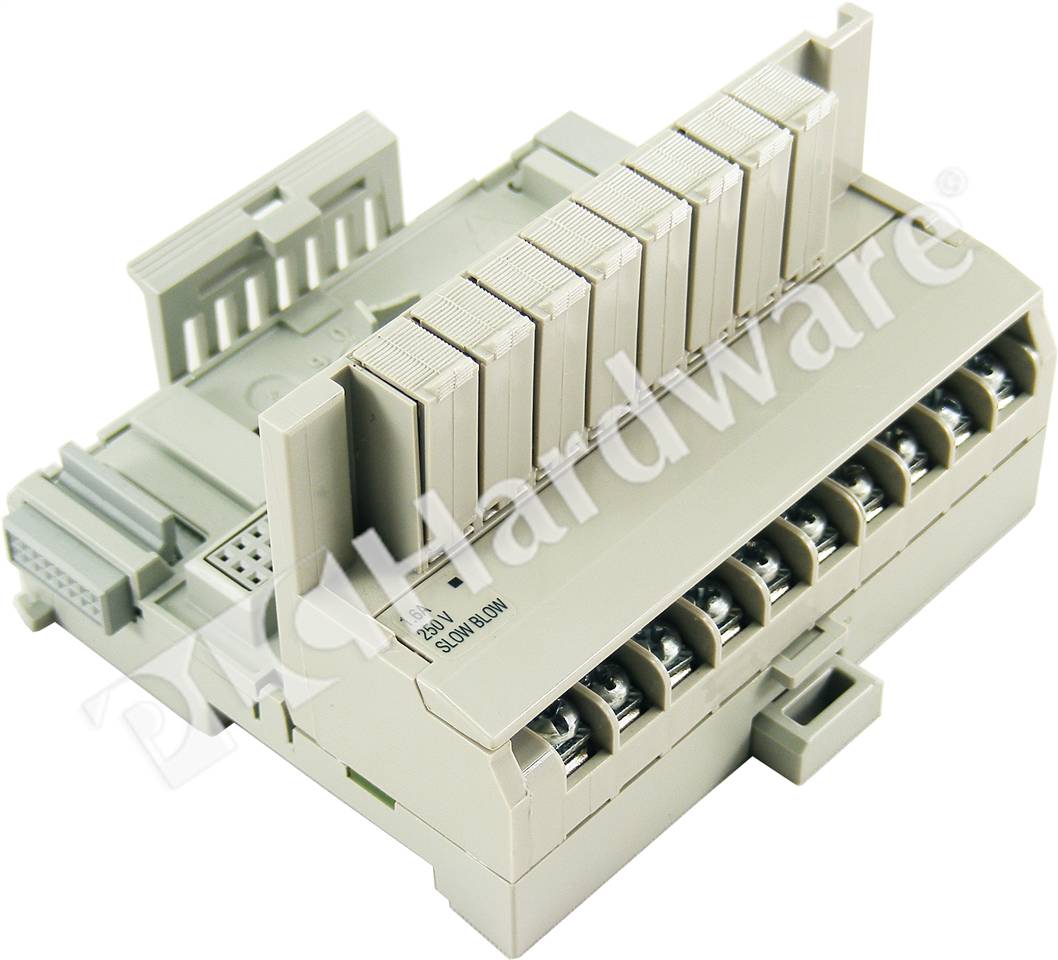

Full Description: Allen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base, Screw Clamp with fuse holders for 5x20 mm fuses on each of the eight even-numbered I/O terminals (0 through 14 - row B), Series A
UPC / GTIN: 10612598137890
Status: Current Product
Inventory & Prices
Condition:

NSO (New Surplus Open)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 3 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $215.00
Your Price: $76.00
Quantity:


1794-TBNF/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1794-TBNF/A RA NSS Allen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base, Screw Clamp, Series A $215.00 $152.00 -29% 1 buyit
1794-TBNF/A RA UPP Allen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base, Screw Clamp, Series A $215.00 $29.00 -87% 7 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1794-TBNF FLEX I/O Terminal Base Unit, Termination Type: Screw-clamp, 2-Wire; Number of Terminals: 2 rows of 10; Wiring Connections: 16 Inputs/Outputs, 2 Commons, 2 +V Voltage; Voltage Rating: 264V AC/DC; Current capacity: 10A max; Isolation Voltage: Established by installed module; Enclosure Type: None (open-style); Terminal Screw Torque: 0.79-1.02 Nm (7-9 lb-in); Wire Size: 4 mm² (12 AWG) stranded copper wire rated at 75 °C (167 °F ) or greater, 1.2 mm (3/64 in.) insulation max.
Miscellaneous: Allen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base provides eight 5 x 20 mm fuses (1.6A 250VAC), screw terminals, plus a cover for I/O wiring, shipped with fuses for the 1794-OA8 module; can be used to fuse the 1794-OM8 and -OW8 modules with a replacement fuse. The 1794-TBNF units plug together to form the backplane. The 1794-TBNF terminal bases allow Removal & Insertion of failed modules Under Power (RIUP).
