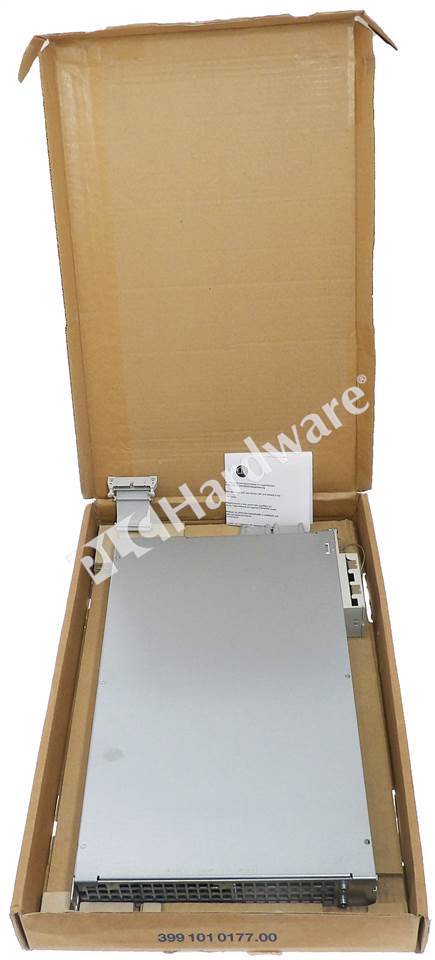

OverviewSiemens 6SN1123-1AB00-0HA1 SIMODRIVE 611 Power Module, 2-Ax, 8A
Mfr. Part Number:

6SN1123-1AB00-0HA1

Manufacturer: Siemens
Description: Siemens 6SN1123-1AB00-0HA1 SIMODRIVE 611 Power Module, 2-Axis, 8A, Int. Cooling
Full Description: Siemens 6SN1 123-1AB00-0HA1 SIMODRIVE 611 Power Module, 2-Axis, 8 A, Internal Cooling, Motor Rated Current: Feed - 3A, Main Spindle - 3A
Status: Current Product
Inventory & Prices
Condition:

NSO (New Surplus Open)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 1 available for pre-order
Shipping Date:
 - Ships within 5 working days
Retail Price: $1,246.00
Your Price: $1,899.00
Quantity:


6SN1123-1AB00-0HA1
Similar Parts Mfr Cond Description Retail Price Disc Qty
6SN1123-1AB00-0HA1 Siemens UPP Siemens 6SN1123-1AB00-0HA1 SIMODRIVE 611 Power Module, 2-Axis, 8A, Int. Cooling $1,246.00 $596.00 -52% 24 buyit
Specs & Technical Data
Specifications: Siemens 6SN1123-1AB00-0HA1 SIMODRIVE 611 Power Module, Number of Axis: 2; Heat Dissipation: Internal; Cooling Method: Self-Cooling; Degree of Protection: IP 20; Input Voltage: 600/625/680 VDC; Output Voltage: 0-430 VAC 3-Ph; Efficiency Eta: 0.98; Rated Current Output for 1FN/1FK/1FT Motors: 3A (Nominal), 6A (Peak); Rated Current Output for 1PH/1FE Motors and Asynchronous Motors: 3A (Nominal), 3A (S6-40%), 3A (Peak); DC Link Capacity: 150 µF; Dimensions, WxHxD: 50 x 480 x 288 mm; Weight: 6.7 kg.
Miscellaneous: Together with the control module, the power module forms the drive module, for feed or main spindle applications. A wide range of 1–axis or 2–axis power modules is available. These modules are graded according to the current ratings and can be supplied with three different cooling techniques.
