OverviewAllen-Bradley 1746-NT8 SLC 500 Thermocouple/mV 8 Analog Input, A
Mfr. Part Number:


Manufacturer: Allen-Bradley / Rockwell Automation

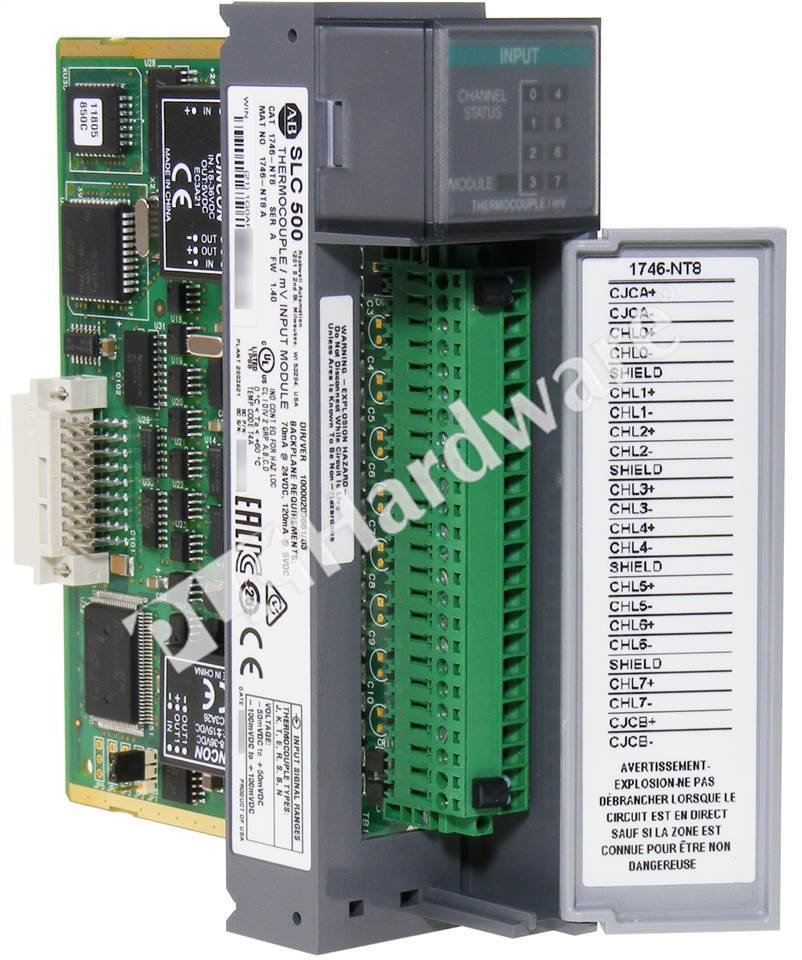

Description: Allen-Bradley 1746-NT8 SLC 500 Thermocouple/mV Analog Input Module 8-Ch, Ser. A
Full Description: Allen-Bradley 1746-NT8 SLC 500 Thermocouple/mV Analog Input Module, 8 Point, Series A
UPC / GTIN: 10611320130888
Status: Current Product
Inventory & Prices

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
6 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $2,790.00
Your Price: $457.00
Specs & Technical Data
Specifications: SLC 500 1746-NT8 Thermocouple/mV Analog Input Module, Number of Inputs: 8 inputs, B, E, J, K, N, R, S, T Thermocouple and ±50 mV or ±100 mV; Backplane Current Load: 120 mA @ 5V, 70 mA @ 24V; Bandwidth: 10-250 Hz; Step Response @ 95%: 400 ms; Update Period: 356 ms to 4.05s; Resolution (bits), Max: 16.
Miscellaneous: The 1746-NT8 module fits into any single slot for I/O modules in either an SLC 500 modular system or an SLC 500 fixed system expansion chassis (1746-A2), except the zero slot which is reserved for the processor. It is a Class 1 module using 8 input words and 8 output words. The 1746-NT8 contains a removable terminal block providing connections for 8 thermocouple and/or analog input devices. On the terminal block are two cold-junction compensation (CJC) sensors. There are no output channels on the module.
